Wholesale 1080P HDMI To RCA HDMI To AV Converter ​

1.0 Introduction

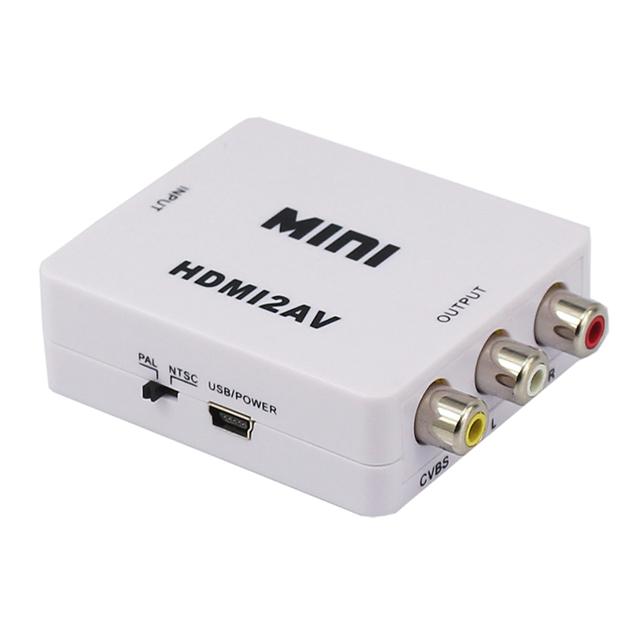

The MINI HDMI to AV signal converter which will convert HDMI video signal or audio signal to AV (CVBS) composite video signel and the FL / FR stereo audio signals, while suppore DVI system sideline signals. To help users convert the high quality of the HDMI video signal into normal CVBS signal ( standard-definition 480i,576i ). So that can play on TV,VHS VCR,DVD recorders, etc and support NTSC and PAL two TV format.

2.0 Features

1. No need to install drivers,portable,flexible,plug and play
2. Low power , No power adaptor
3. Support NTSC and PAL two standard TV formats output
4. Compatible HDMI1.4b

3.0 Specifications

1. Input ports:1 x HDMI
2. Output ports: 1 x RCA( Yellow, White, Red)
3. Dimensions(LxWxH):68x55x20( )
4. Weight: 38g

5. HDMI Input Resolution:

720x480i@50/60Hz, 720x480p@50/60Hz,
640x480p@60Hz,800x600p@60Hz
1024x768p @60Hz,1280x1024p @60Hz
1280x720p @60Hz,1280x960p @60Hz
1280x720i@50/60Hz, 1280x720p@50/60Hz,
1360x768p @60Hz,1920x1080i@50/60Hz,
1920x1080p@50/60Hz,

6. CVBS output: PAL and NTSC

4.0 Package Contents

1) Main unit (HDMI to AV Converter)---------------1PC
2) USB Line---------------------------------------------1PC
3) User Manual-----------------------------------------1PC
