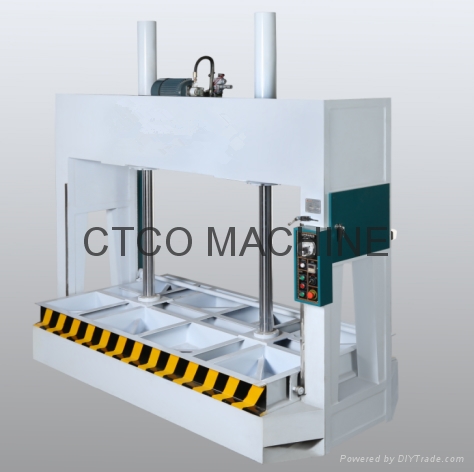

COLD PRESS MACHINE
Total pressure: 50Ton
Direction of feeding plate: Horizontal
Dimension of plates: 1250x2500mm
Opening distance: 1000mm
Numbers of Cylinder: 2pcs
Diameter of Cylinder : Φ90mm
Stroke of Cylinder: 1000mm
Pump: 12L
Pump working pressure: 16.5MP
Motor of power: 4KW
Overall dimensions: 2950x1250x2250mm
Machine weight: 2000KG
Upper and Lower Cross beams: 550mm
Middle Beam: 200mm
Thickness of Frame: 12mm
Usage: Cold press for Plywood & Door
