| Model: | DN40-DN300 |
|---|---|
| Brand: | BSI |
| Origin: | Made In China |
| Category: | Construction & Decoration / Pipe, Tube & Parts / Iron Pipe & Tube |
| Label: | SML PIPES , DIN EN877 PIPES , EN877 CAST IRON PIPE |
| Price: |
¥5000
/ TON
|
| Min. Order: | 2 TON |
| Live Chat: | Last Online:31 May, 2024 |
ast Iron Pipe confirming to DIN/EN877/ISO6594
Material:Cast Iron with flake graphite
Qualilty:GJL-150 according to EN1561
Coating: SML,KML,BML,TML
Size:DN40-DN300

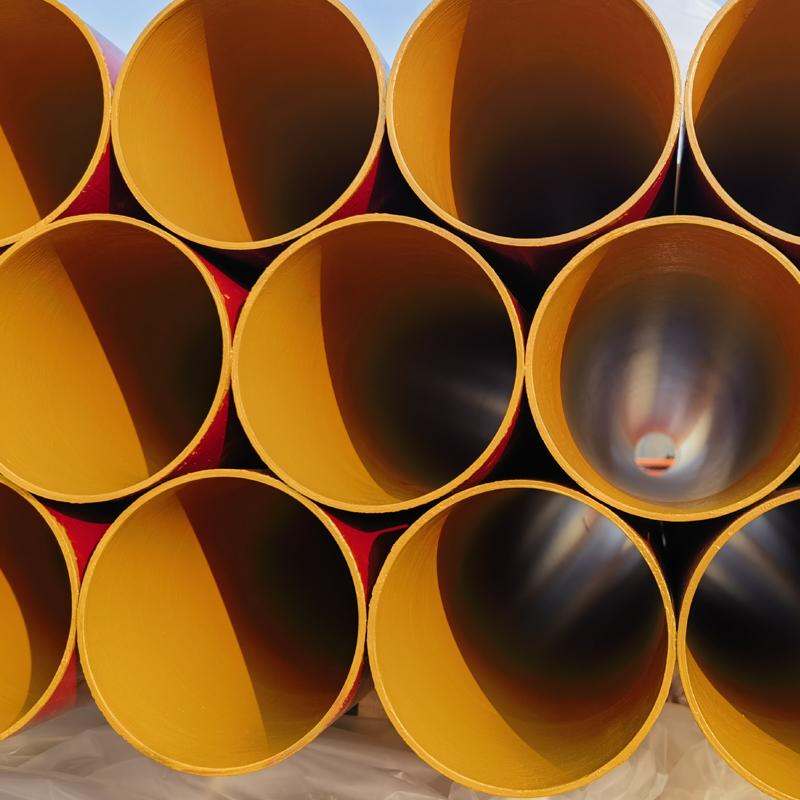

The gray cast iron soil pipes produced by centrifugal technology which are used in drainage sewer system and ventilation ducts system through a flexible linkage.
which have following advantages :flat straight,even pipe wall.
high strength and density,high smoothness internal and external surface, no casting defect, easy installation, easy maintain, long using life, environmental protecting,fireproofing and no noise.
|
DN |
External diameter DE(mm) |
Wall thickness(mm) |
Unit weight |
Length |
||
|
Nominal value |
Tolerance |
Nominal value |
Minimum value |
kg/pc |
(mm) |
|
|
40 |
48 |
+2 -1 |
3.0 |
2.5 |
12.70 |
3000+/-20 |
|
50 |
58 |
3.5 |
3.0 |
13.00 |
||
|
70 |
78 |
3.5 |
3.0 |
17.70 |
||
|
75/80 |
83 |
3.5 |
3.0 |
18.90 |
||
|
100 |
110 |
3.5 |
3.0 |
25.20 |
||
|
125 |
135 |
+2 -2 |
4.0 |
3.5 |
35.40 |
|
|
150 |
160 |
4.0 |
3.5 |
42.20 |
||
|
200 |
210 |
+2.5 -2.5 |
5.0 |
4.0 |
69.30 |
|
|
250 |
274 |
5.5 |
4.5 |
99.80 |
||
|
300 |
326 |
6.0 |
5.0 |
129.70 |
||

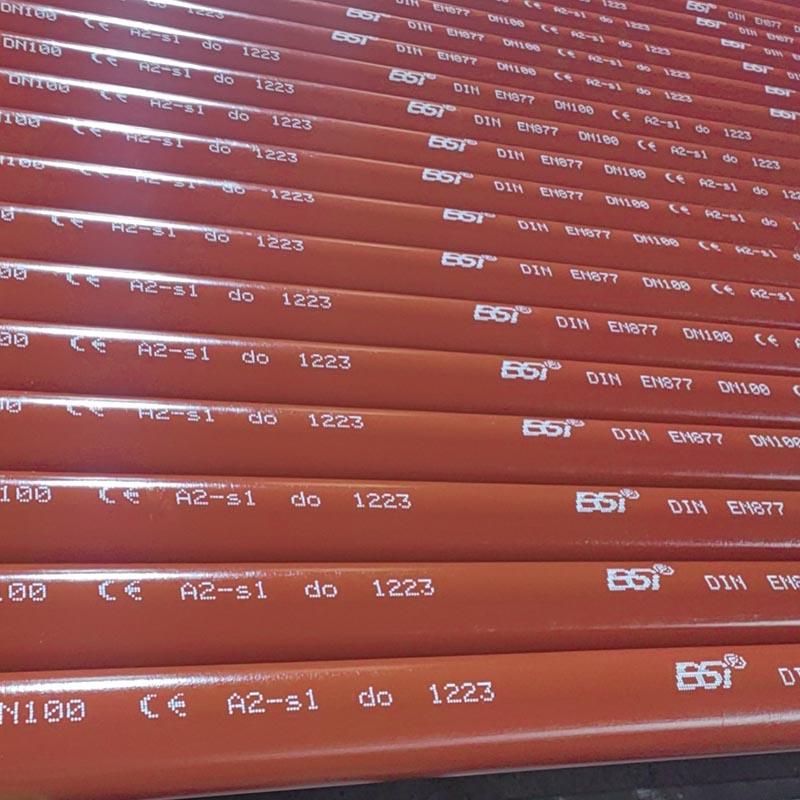

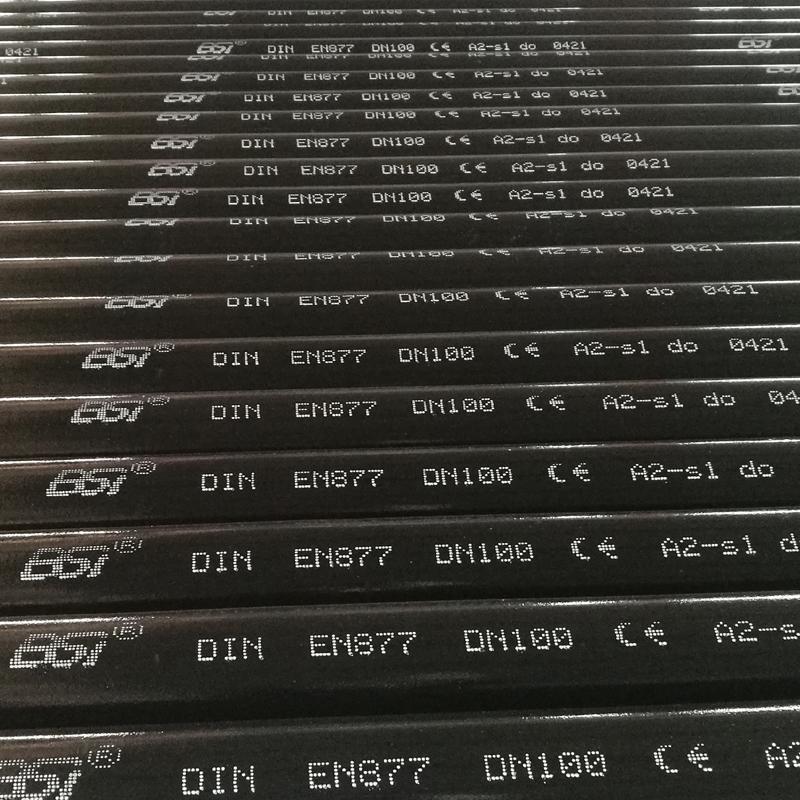

SML DIN/EN877 Cast Iron Socketless Pipes
