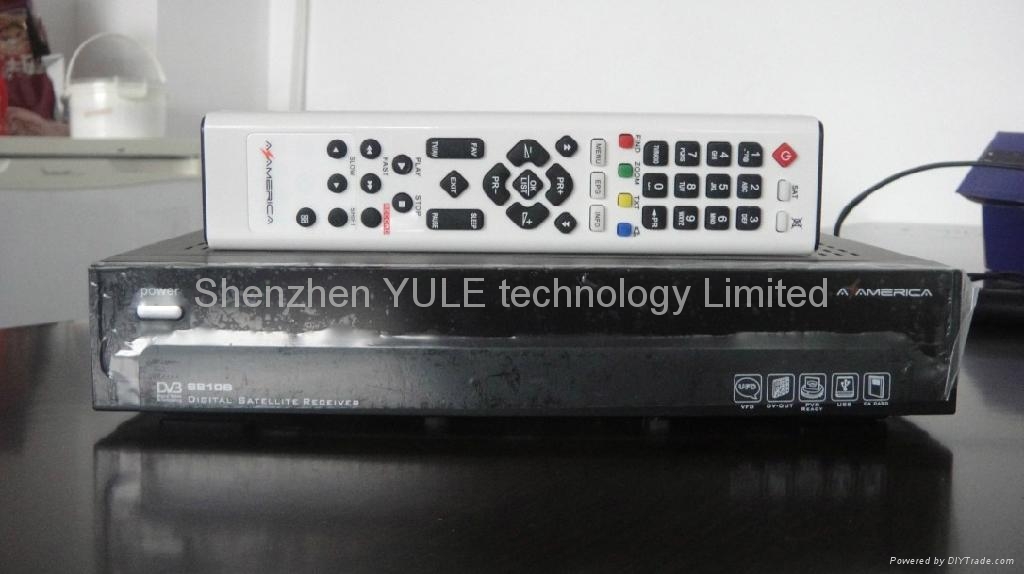

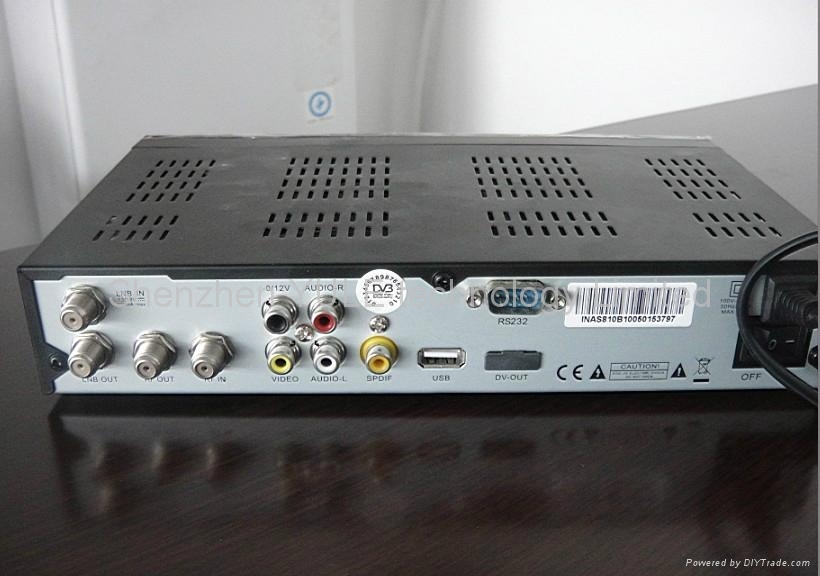

Azbox s810b set top box specification:

FTA+PATCH+CA+PVR+USB+HDMI PORT South america receiver for Amazon satellite, open pay channel free

 MPEG-2 digital & fully DVB-S compilant
 SCPC and MCPC receivable from C/Ku band satellite
 Automatic PAL/NTSC conversion
 4000 channels TV and Radio programmable
 32 different favorite groups selection
 On Screen Display with multi-language
 Fully support to 7 days Electronic Program Guide (EPG)
 Picture in Graphics (PIG) support
 256 colors On Screen Display
 Automatic network search for newly added transponders
 DiSEqC 1.2 fully support, 13/18V, 0/22K, 0/12V LNB control
 Various channel editing function (favorite, move, lock, rename and sort)
 Parental control for channels
 Ease to use Menu System
 Software upgrades through Rs232 port and Receiver to Receiver
 Software upgrade USB port
 USB PVR ready
 Display VFD
 HDMI output 480i/p, 576i/p, upscale to 720p, 1080i
 Automatic turn on/off by Timer Setting (multiple options)
 Subtitle support DVB EN300743 and EBU
 Teletext support DVB ETS300472 by VBI and OSD
 Automatic save for last channel
 Channel list can be sorted by alphabetic A-Z
 Up to 3X3 pictures on screen, only 1 active
 Video zoom function with 1/2/4/6/8/12/16 ratio
 OTA support (Option)
 Support FAT16/FAT32/FAT12 (Option)
 Only list JPEG/BMP files
 Default 2 hours, user can setting the end time (Support subtitle)
 Based on size of HDD, 512M-8G size will reserve for time shifted recording (Support subtitle)
 Lock/Delete/Rename, Preview playback, Browse record files information
 Play/Pause/Stop/Step
 Fast Forward/Fast Backward 2/4/8/16/32, Slow Forward
