Product Description
295G Diesel Engine Technical Specifications:
1) 295D-2100D diesel engine 13.5KW-15kw 1500RMP
2) Vertical, Four stroke, Direct injection
3) GENERATING
4) 95(100)*115
5) 400kg
| Model |
295D |
295G, T, L, Q, B, C |
295K, Y |
2100D |
2100G, T, L, Q, B, C |
2100K, Y |
| Type |
Vertical, Four stroke, |
| Number of cylinder |
2 |
| Bore× Stroke(mm) |
95× 115 |
100× 115 |
| Total displacement |
1.630 |
1.806 |
| Combustion system |
Swirl combustion chamber OR Direct injection |
| Compression ratio |
20 |
| Rated output(kw/r/min) |
13.2/1500
15.8/1800 |
17.6/2000 |
19.1/2200 |
14.7/1500
17.6/1800 |
20/2000 |
22/2250 |
| Idle speed(r/min) |
≤ 600 |
| Fuel consumption at rated otput(g/kw. h) |
≤ 265.2 |
≤ 263.8 |
| Oil consumption(g/kw. h) |
≤ 2.72 |
| Lubrication method |
Conbination of Pressure and splashing |
| Starting method |
Electric |
| Cooling system |
water |
| Direction of rotation of crankshaft(view from flywheel end) |
Counter clockwise |
| Remarks |
Generating set |
Rice milling, Waterpump Agri-vehcle, Maring, Air compressor machine etc. |
Same as 295D |
Same as 295G, T, L, Q, B, C |
Same as 295K, Y |

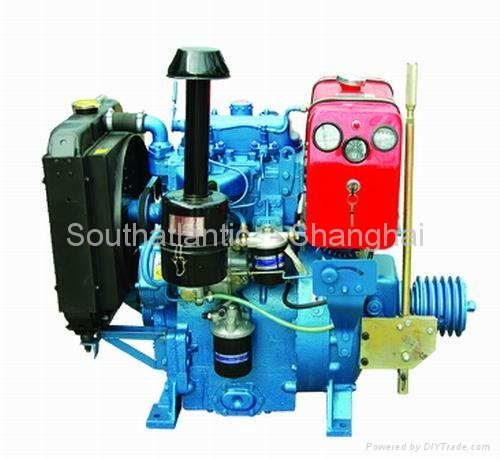

Product Image
