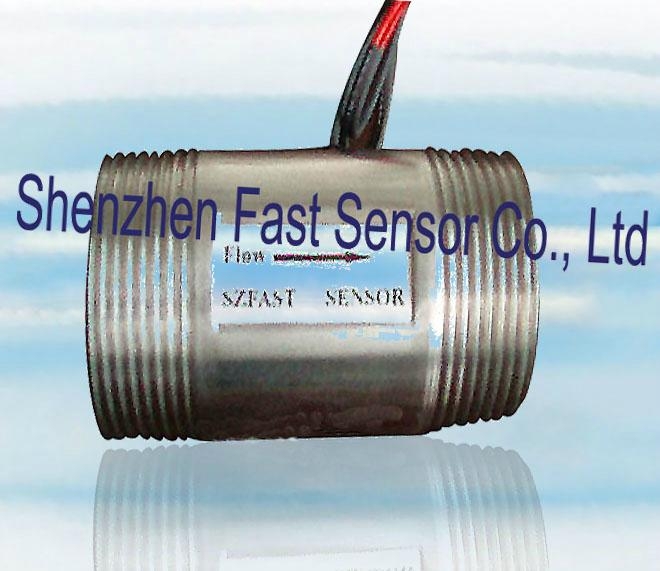

stainless steel flow switch

Model:	FS-P
Brand:	FAST
Origin:	Made In China
Category:	Electronics & Electricity / Switch / Sensor Switch
Label:	flow switch , plastic flow switch , magnetic flow switch
Price:	-
Min. Order:	500 pc

Inquire Now Add to Basket

Member Information

Shenzhen Fast Sensor Co., Ltd

Free MemberGuang Dong - China

Live Chat:

Last Online:10 Dec, 2021

Product Description

Application:

The switch can be widely used in petrochemical industry ,water treatment for environmental protection (Chiller, Heat pump water heater ), welding equipment ,laser equipment and some other systems for monitoring .

The switch with high performance, it equipped with permanent magnet .Just has one removable part .The Operating principle is easy .

● Tap water or oil applied, without using filters.;

●Full nylon structure, various liquid corrosion resistance.

●It could be installed horizontally ;

●Obstruction of the liquid is small, high effciency .

●Max pressure is greater than 2Mpa;

Operation Explain

Lowest sensor flux is the lowest volume to make the switch working .when the flux is more than the lowest sensor volume ,the switch will turn on ,and giving a signal .

Electrical Characteristics	Units
Material		NYLON
Ring Material		NYLON
Tempe Rating	`C	-30~+100 ( without ice )
Max Pressure	MPa	2
Max Volume		30L
Max Contact Rating	W	70
Max Switching Voltage	VDC	≤250
Max Switching Current	A	0.5
Max contact Resistance	mOhm	200
Electrical Life (at Resistance load )	VDC/mA	1.5x10⁷(20/500)
Cable Type		UL1332-AWG22
Cable Length	mm	300
Cable Color		Black

Note:

1.There should be no iron in the flux .

The outlet interface should not be installed facing the down direction

Payment Terms:	T/T,West Union,Cash

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5
