5.7 graphic LCD module serial interface (RS232)
Product Description
| ◆Feature◆ |
|
|
| |
|
|
| Display Type: |
STN(Gray)/Transflective/Positive |
| Viewing Area: |
122.0mm*92.0mm(5.7inch) |
| Resolution: |
320*240 Dots |
| Viewing Direction: |
6:00 |
| FLASH Memory: |
Built-In FLASH memory for storing menu screen |
| 2D drawing: |
Support 2D (pixel, line, circle, rectangle) Draw |
| Font: |
Support multi-language font (such as ASCII, Chinese, Japanese, Korean ...) |
| Brightness: |
Support software adjustable |
| Contrast: |
Support software adjustable |
| Key-scan: |
Built-In smart 8x8 key-scan |
| Touch Panel: |
Built-In smart touch panel control |
| ID Identifies: |
Support ID recognition function,Simultaneous control of multiple products in a bus |
| Operating temperature: |
-20~70℃ |
| Storage Temperature: |
-30~80℃ |
| Operating Voltage: |
5.0V |
| Communication Interface: |
RS232 or UART(TTL:5.0V) |
Product Image

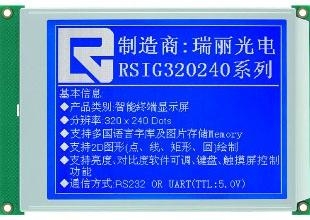

Img 1

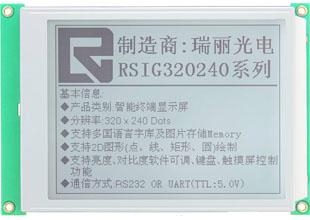

Img 2
