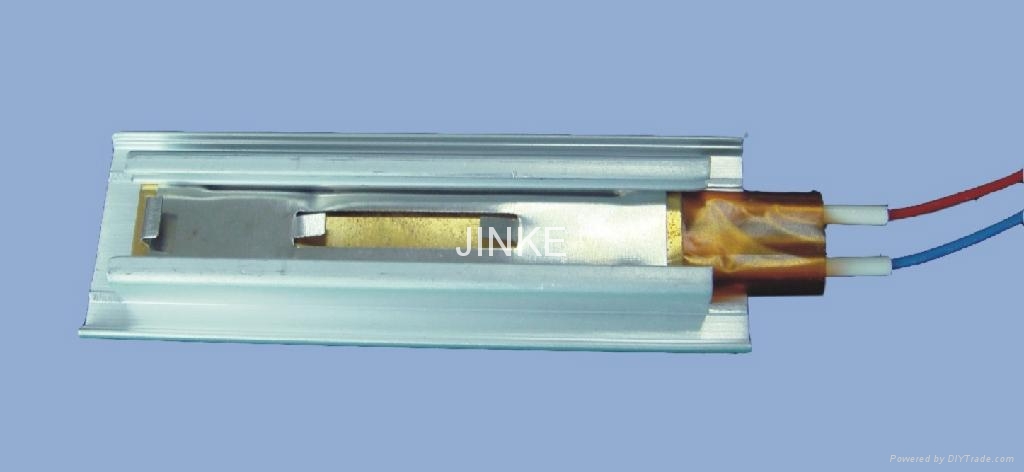

PTC heating element for Hair-straightener
Product Description
|
GENERAL TECHNICAL INFORMATION
|
|
| The design is electrode plates sandwiching several PTC thermistors and wrapped with insulation films, and the heat generated by PTC thermistor can be transferred directly to the surface. Each product is design to reach a determined temperature point, The insulation film ends can be open and sealed by hot shrinkage. Different exterior shapes can be tailor made according to customer request. |
|
| MAIN FEATURES AND THREE BASIC PHASES |
|
- Efficient design with higher protection classes
- Heating output and self-regulating function in correlation with ambient temperature and application condition
THREE BASIC PHASES
- Phases Ⅰ PTC thermistor+ electrode plate+ insulation film
- Phases Ⅱ PTC thermistor+ electrode plate+ insulation film+ aluminum tube
- Phases Ⅲ PTC thermistor+ electrode plate+ insulation film+ aluminum tube+ clipping plate
|
|
| PHASE Ⅰ STANDARD PRODUCT |
|
|
Model No.
|
V R (V)
|
V W/S (V)
|
Ts( ℃ )
|
Dimension(mm)
|
|
JKCP-HZ3513
|
100~240V
|
300V
|
200
|
35*13*3.3
|
|
JKCP-HZ2410
|
100~240V
|
300V
|
250
|
24*10*3.2
|
|
JKCP-HZ7013
|
100~240V
|
300V
|
270
|
70*13*3.7
|
|
JKCP-HZ4810
|
100~240V
|
300V
|
260
|
48*10*3.7
|
|
JKCP-HZ3506
|
100~240V
|
300V
|
260
|
35*6*2.7
|
|
JKCP-HZ3513
|
100~240V
|
300V
|
190
|
35*13*3.1
|
|
JKCP-HZ7006
|
100~240V
|
300V
|
250
|
70*6*3.3
|
|
JKCP-HZ6013
|
100~240V
|
300V
|
250
|
60*13*3.5
|
|
JKCP-HZ7010
|
100~240V
|
300V
|
240
|
70*10*3.2
|
|
JKCP-HZ4813
|
100~240V
|
300V
|
200
|
48*13*3.3
|
|
JKCP-HZ4808
|
100~240V
|
300V
|
180
|
48*8*3.3
|
|
JKCP-HZ3510
|
100~240V
|
300V
|
200
|
35*10*3.2
|
|
JKCP-HZ3013
|
100~240V
|
300V
|
210
|
30*13*3.5
|
|
JKCP-HZ2413
|
100~240V
|
300V
|
190
|
24*13*3.3
|
|
|
| PHASE II STANDARD PRODUCT |
|
|
Model No.
|
V R (V)
|
HIPOT (V)
|
Ts( ℃ )
|
Cross sectionshape
|
Dimension(mm)
|
|
JKCP-LG-75-01A
|
100~240
|
3750
|
170~270
|
|
W=20/W=30
|
|
JKCP-LG-75-01B
|
100~240
|
3750
|
170~270
|
|
W=40/W=60
|
|
JKCP-LG-75-01C
|
100~240
|
3750
|
170~270
|
|
W=20/W=40/W=60
|
|
JKCP-LG-75-01D
|
100~240
|
3750
|
170~270
|
|
D=Φ8.7/Φ8.9/Φ11.0/
Φ13.7/Φ14.7/Φ15.6
|
|
JKCP-LG-75-01E
|
100~240
|
3750
|
170~270
|
|
D=Φ17.0/Φ23.4/
Φ29.8/Φ49.0
|
|
JKCP-LG-75-01E
|
100~240
|
3750
|
170~270
|
|
D=Φ7/Φ15/Φ23.0
|
|
|
| PHASE III STANDARD PRODUCT |
|
|
Model No.
|
V R (V)
|
HIPOT (V)
|
( ℃ )
|
Cross section shape
|
|
JKCP-3068HT
|
100~240
|
3750
|
150~250
|
|
|
JKCP-HS-543
|
100~240
|
3750
|
150~250
|
|
|
JKCP-HS-578T
|
100~240
|
3750
|
150~250
|
|
|
JKCP-HS-587
|
100~240
|
3750
|
150~250
|
|
|
JKCP-HS-568
|
100~240
|
3750
|
150~250
|
|
|
JKCP-HS-572
|
100~240
|
3750
|
150~250
|
|
|
JKCP-MAW-206
|
100~240
|
3750
|
150~250
|
|
|
JKCP-CSI-1E
|
100~240
|
3750
|
150~250
|
|
|
JKCP-JTR-328-01
|
100~240
|
3750
|
150~250
|
|
|
JKCP-HS-578C
|
100~240
|
3750
|
150~250
|
|
|
JKCP-3066IE.00-610
|
100~240
|
3750
|
150~250
|
|
|
JKCP-3066W-626
|
100~240
|
3750
|
150~250
|
|
|
Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
