| Model: | WS-L70 |
|---|---|
| Brand: | Wisdom CNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | auto feeding lathe , auto feeding wood , small feeding lathe |
| Price: |
US $5700
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:07 Aug, 2022 |
Application:
Small wood arts & crafts: Bodhi, Bodhi root, mahogany, gold-rimmed nanmu, rosewood, mahogany, boxwood, beads, barrel, all kinds of buddha heads, gourd pendant, hoist pieces, wood cup, bowl, whip, cigarette holder, eggs, ashtray, scroll painting head, pens and wine stoppers.
Specifications:
|
Model |
WS-L70 |
|
Table structure |
Heavy cast steel |
|
Max processing diameter |
70mm |
|
Max processing length |
155mm |
|
Feeding type |
Automatic by pneumatic chuck |
|
Transmission system |
Hiwin Square guide rail and TBI Ball screw |
|
Driving mode |
Servo motor and drivers |
|
Processing precision |
0.01mm |
|
Operating system |
Advanced LCD screen controller |
|
Compatible software |
CAD/AI |
|
Drawing format |
*.dxf, *png, *txt |
|
Cutter |
Super hard alloy |
|
Main motor power |
1.5kw |
|
Power |
380/3PH |
|
Packing dimension |
195x126x135cm |
|
G.Weight |
900KGS |

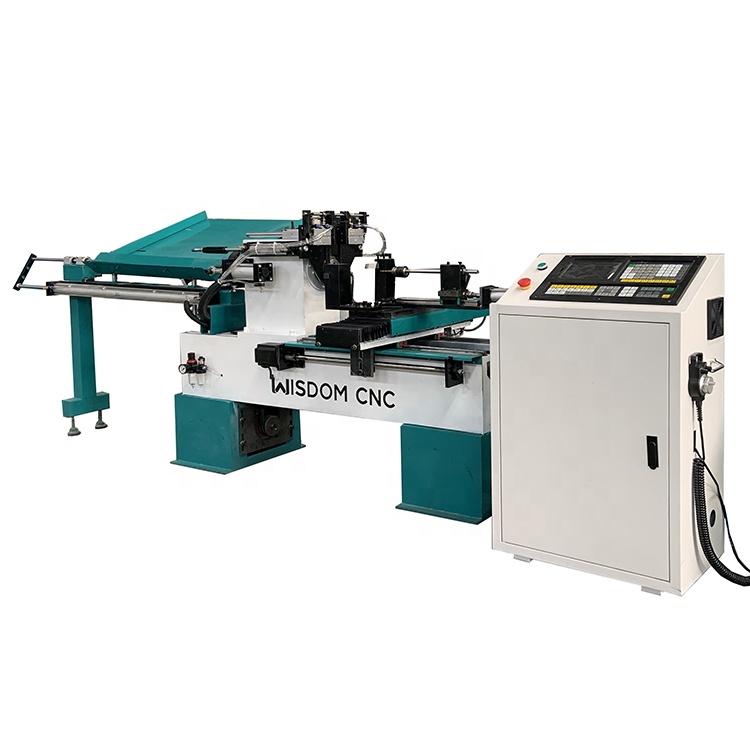

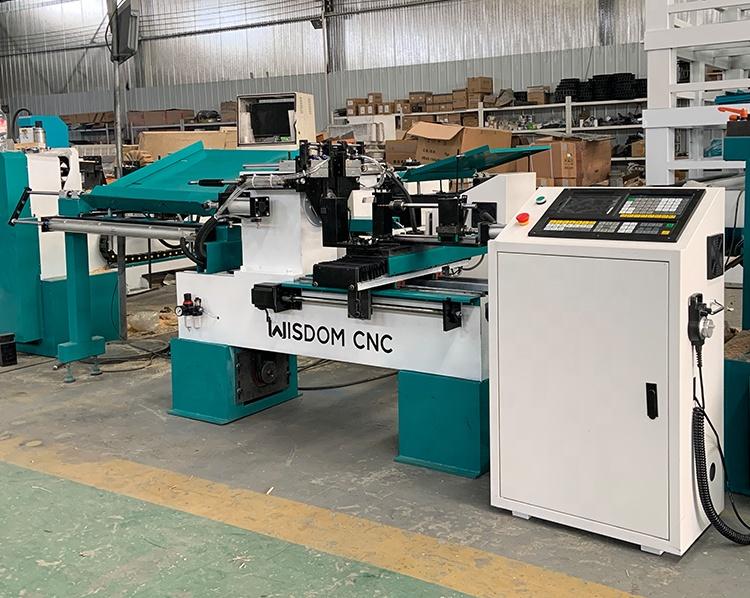

Machine parts details:
1. Heavy cast Steel table
2. Moveable lathe cutter base, for external cutting, internal cutting & under cutting and drilling
3. Air cylinder
4. Automatic pneumatic chuck
5. Storage area, it’s used for feeding raw wood rod
6. High precision ball screw transmission
7. LCD screen controller
8. Air filter and oil lubrication
