| Model: | 8inch-126inch |
|---|---|
| Brand: | wuzhou |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Energy / Petroleum |
| Label: | galvanized steel pip , SAW pipe , L360MB steel pipe |
| Price: |
¥3900
/ ton
|
| Min. Order: | 100 ton |
| Live Chat: | Last Online:12 Jul, 2019 |
CANGZHOU SPIRAL STEEL PIPE CO LTD CHINA
(E: zhangli.hello at 163.com QQ: 741952741 cell: 8615100375993) skype: blueskyzhang0522
Product Description:SSAW (Spiral Submerged-arc Welded)
Outer Diamter: 219mm - 3220mm (8" - 126")
Wall Thickness: 5 mm - 25.4mm
Length: 6mtr-18mtr
Usage: Low pressure liquid delivery, such as water, oil, gas. Or structure pipe
Standard: API 5L, ASTM A252, BS534, DIN2440,EN10025, EN 10217, ASTM A53 AWWA C-200, IS2062,
Steel Grade: Q235, Q345, S235, S235JR, S275, S275JR, S355JRH, S355J2H, St37, St44, ST52
ASTM A 53: Gr. A, Gr B
API 5L: A, B, X42, X46, X52, X56, X60, X65 X70
GB/T9711: L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555
ASTM A252: Gr. 1 Gr. 2 Gr. 3

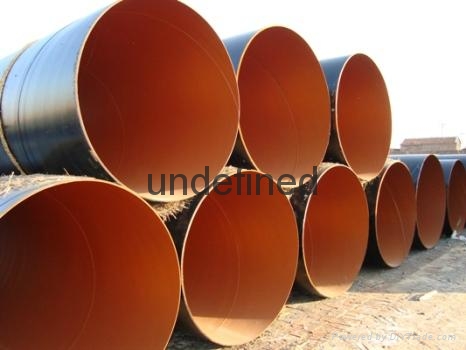

Outside coating:
Anti-rust oil, black painting.
Epoxy Coating according to AWWA C-210
Bitumen Coating according to DIN30672, BS534
Coal- Tar Enamel Coating according to AWWA C-203

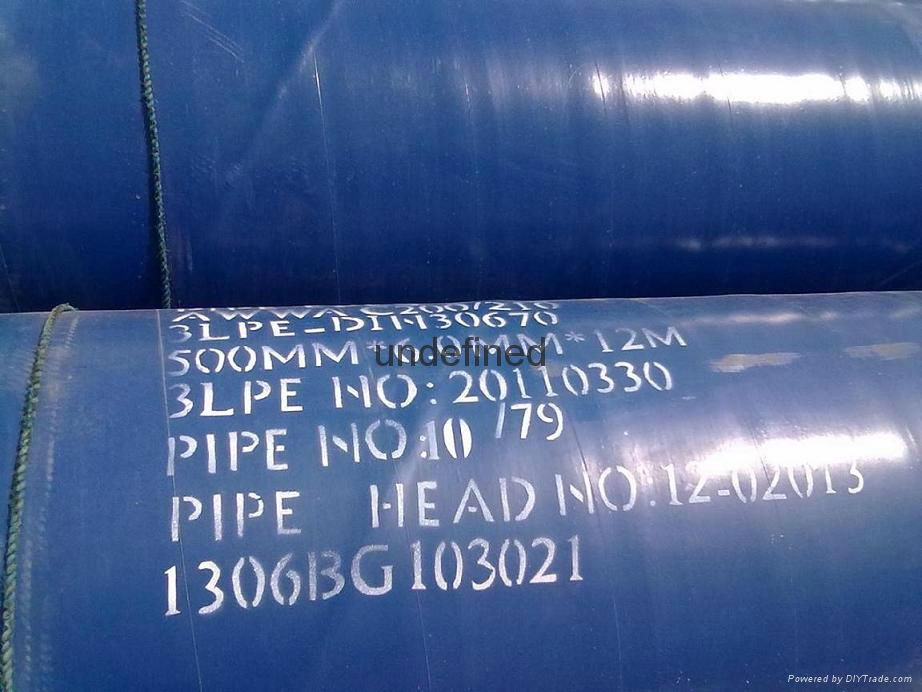

3 Layer polyethylene Coating according to DIN30670
3 Layer Polypropylene Coating according to DIN30678
Inside lining:
Epoxy lining according to AWWA C-210
Bitumen Lining according to DIN30673, BS534
Coal-Tar Enamel Lining according to AWWA C-203
Cement Mortar Lining according to AWWA C-205, BS534

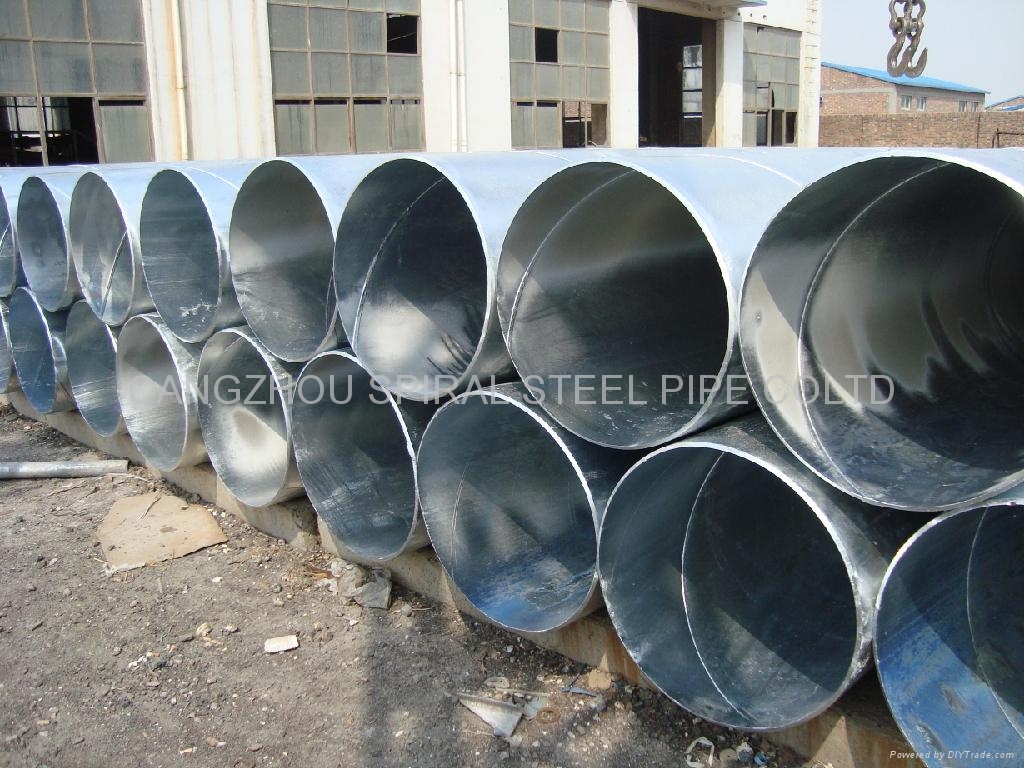

Hot Dip Galvanized :80-100 microns thickness.
| Payment Terms: | TT/LC |
|---|---|
