A.Technical parameter:

1.Main power:7.5KW, 3-Phase

2.Speed reducer: cycloidal-pin gear speed reducer

3.Diameter of shaft: ￠80mm

 Forming rollers: 13 stations with 2 leveler rollers

4. Cutting system: hydraulic

  Cutter oil pump motor: 3kw, 3-Phase

5.Length of whole machine:7150mm

6.Tolerance:10m±1mm

7.Speed:8-15m/min

8. Material Thickness (mild steel):

C Shape: 1-3mm

U Shape: 1-4mm

9.Uncoil: 500mm

10. Width:

Formed width:

               U Shape: 50x50mm

               C Shape: 50x50x13.5mm

Material width:

               U Shape: 146mm

               C Shape: 150mm

11. material of shaft: GCr15 steel, quenching HRC58^○-60^○

12.material of blade and punching mould:Cr12

13control system: PLC( Panasonic), Touch screen

               Power: 7.5KW

               PLC cabinet weight: 100kg

14. Size of total machine: approx :12m*1.0m*1.3m

   Main machine dimension: 7150x700x1270mm

   Decoiler size: 1220x1200x1600mm

   PLC control operation machine size: 650x520x1000mm

Main machine Net weight: 4.5 Ton

B.equipment

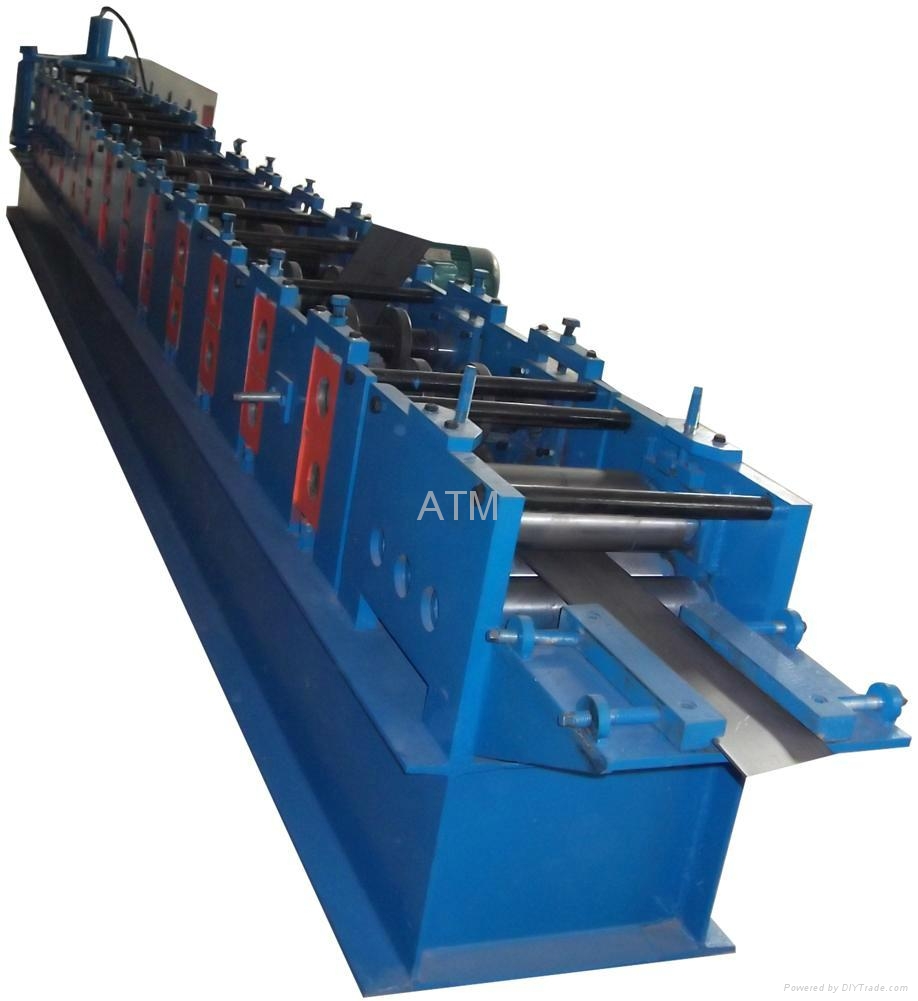

equipment: decoiler, roll forming machine, 13 stations of roller, PLC cabinet, hydraulic station ,cut to length, output table(2)
