CNC Lattice girder welding machine SJL300D

Model:	SJL300D
Brand:	TJK
Origin:	Made In China
Category:	Industrial Supplies / Construction Machine
Label:	Lattice Girder weld , Stirrup bender , welding machine
Price:	-
Min. Order:	1 set

Inquire Now Add to Basket

Member Information

Beijing TJK Machinery Co.,Ltd.

Free MemberTian Jin - China

Live Chat:

Last Online:25 Dec, 2012

Product Description

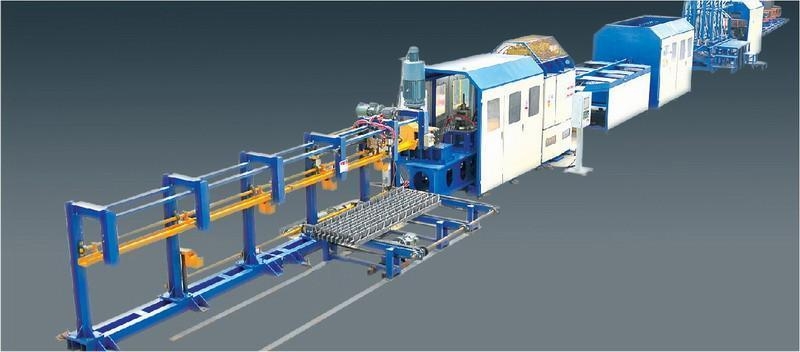

CNC Lattice girder welding machine SJL300D

Products Introduction:

Automatic processing line combine with pay-off, straightening system, bending system, auto welding, measured cut and production transfer, widely used in building construction (steel bar truss deck ), high-speed rail (double-block sleeper) construction and other fields.

CHARACTERISTIC

1. Stepping system control by CNC servomotor.

2. Automatic pay-off control system.

3. User friendly inerface, easy operation.

4. Forming (Zig-Zag) device, high precision and stability.

5. All electrical components are supplied by SIEMENS and YASKAWA.

6. SCR unit features low power, low volume and high reliability.

7. Girder evacuation & automatic stacking unit.

8. Optimize malfunction diagnose warning system.

9. Diagonal forming (Zig-Zag) device (patent).

10. Perfect produce manage system.

11. Electricity components used of SIMENS and YASKAWA.

12. Control systems: SIEMENS, MITSUBISHI, PANASONIC.

Operating Video Link:

v.youku.com/v_show/id_XMTIxMjUzNzQ0.html

Products and Services:

Stirrup bender, rebar shearing line, rebar bending center, wire mesh welding machine, wire straightening and cutting machine, wire cold rolling machine, lattice girder welding machine, butt welder etc.

welding machine company, wire mesh welding machine, welding wire mesh, lattice girder machine, wire mesh machine manufacturers, wire mesh welding machines, wire mesh machinery, welding mesh, wire mesh machine

TECHNICAL DATA:

Model	SJL320A	SJL100A
Installed power welding(KVA)	4*175	4*175
Installed power for rest of machine(kw)	80	80
Installed voltage(v)	380V 50Hz	380V 50Hz
System voltage(v)	380V 50Hz	380V 50Hz
Control voltage(v)	24	24
Diagonal wire diameter (mm)	5-8	5-8
Longthitudinal wire diameter(upper)(mm)	8-12	8-12
Longthitudinal wire diameter(lower)(mm)	8-12	8-12
Girder height (mm)	50-320(can be ordered)	50-100(can be ordered)
Girder internal base width (mm)	50-150(can be ordered)	50-150(can be ordered)
Girder length(mm)	200-1200	200-1200
Diagonal spacing(mm)	190-300 (can be customized)	190-300 (can be customized)
Power cable cross-sectional aress	1185mm²+1195mm²	1185mm²+1195mm²
Overall length(mm)	42000	42000
Produvction rate(m/min)	12-15	12-15
