| Model: | YYQ-100 |
|---|---|
| Brand: | HAINUO |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Test Bench |
| Label: | diamond roller , balancing machine , Diamond Calibrating |
| Price: |
US $8600
/ set
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:06 Apr, 2018 |

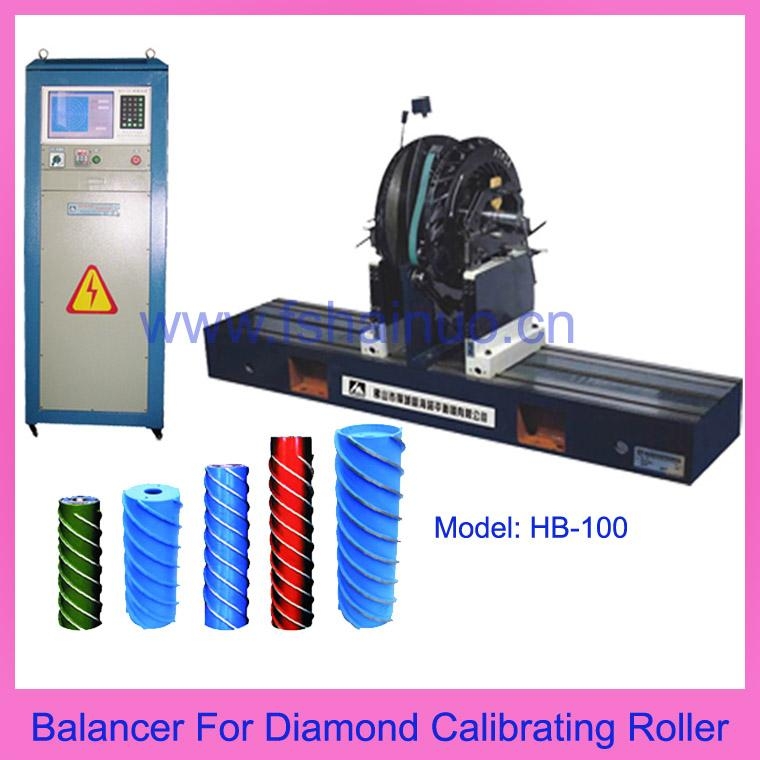

Balancing Machine for Diamond Calibrating Roller
Dynamic Balancer for Diamond calibration Roller
Balance Machine for Diamond Roller
The balancing machine industrial computer LCD systems which are designed by ourselves are used with a variety of electronic components and chips come from Japan and the United States and manufactred by advanced technology . All products undergo strict quality control to ensure the system work with high efficiency, high safety, long-term stability .
This machine is mainly applied in the fields of automobile repair plant, automobile factory, ventilation system equipment factory ,air blower factory and widely used for spindles of machine tools, ceramic machiner rollers, textile machinery, rubber rollers and also kinds of good-sized and medium-sized motor rollers ect.
|
Model |
Capacity
|
Rotor Ø max
|
Distance between Supports
|
Journal Ø range
|
Balancing Speed rpm |
Drive performance kw |
|
|
HB-1.6 |
0.16~1.6 |
150 |
30~250 |
3~30 |
400~5,000 |
0.04 |
|
|
HB-5 |
0.5~5 |
250 |
50~600 |
3~30 |
300~5,000 |
0.12 |
|
|
HB-16 |
1.6~16 |
400 |
80~600 |
8~40 |
300~5,000 |
0.37 |
|
|
HB-50 |
5~50 |
850 |
150~1,000 |
8~70 |
300~5,000 |
1.5 |
|
|
HB-100 |
8~100 |
850 |
150~1,500 |
8~100 |
300~5,000 |
1.5 |
|
|
HB-160 |
10~160 |
1,080 |
200~1,500/2,400 |
10~180 |
300~2,500 |
2.4/3 |
|
|
HB-300 |
16~300 |
1,200 |
200~1,500/2,400 |
10~180 |
300~2,500 |
optional |
|
|
HB-500 |
20~500 |
1,450 |
300~1,500/2,400 |
15~240 |
300~2,500 |
optional |
|
|
HB-1000 |
30~1,000 |
1,600 |
400~3,600 |
20~290 |
300~1,450 |
optional |
|
|
HB-2000 |
50~2,000 |
2,000 |
500~3,600 |
30~350 |
300~1,450 |
optional |
|
|
HB-3500 |
80~3,500 |
2,600 |
700~3,600 |
50~500 |
300~900 |
optional |
|
The more technical parameters are in the following.
|
Rotor data/Machine type |
HB-100 |
|
Power supply |
380V 50Hz |
|
The way of supporting |
Hard bearing |
|
|
|
|
Display mode |
LCD |
|
Minimun achieveable residual unbalance(MARU)(g.mm/kg) |
≤0.5 |
|
Unbalance reduction ratio(URR)(%) |
>90 |
