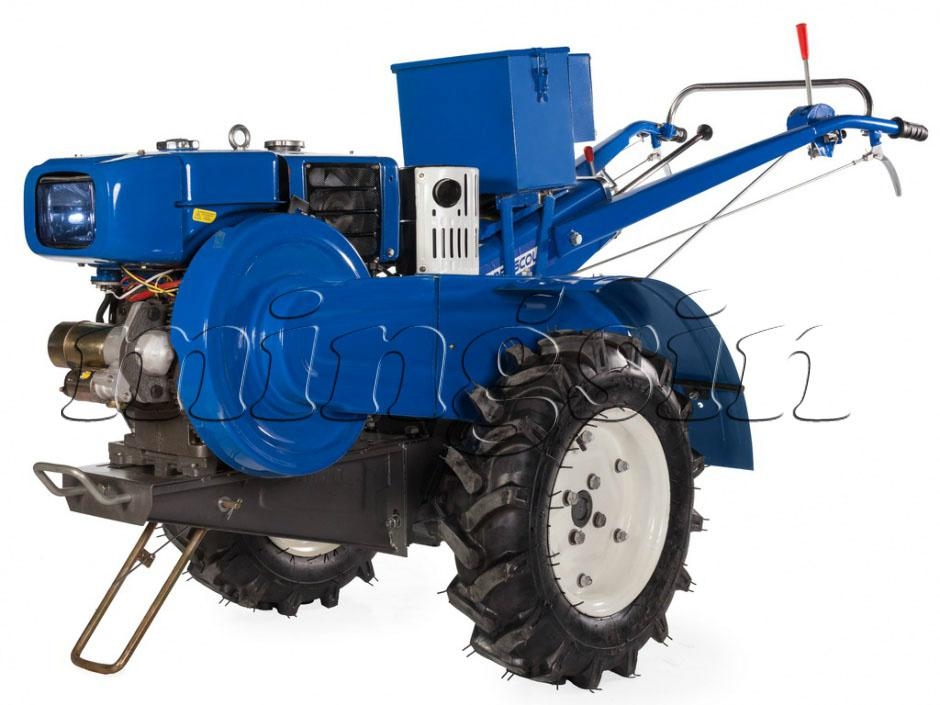

| Model: | MX111 |
|---|---|
| Brand: | MINGSIN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Farm Machines Tools |
| Label: | walking tractor , hand tractor , power tiller |
| Price: |
US $800
/ pc
|
| Min. Order: | 5 pc |
| Live Chat: | Last Online:08 Oct, 2022 |
|
Model |
Unit |
MX-111 |
|
|
Structure weight |
Without rotavator |
kg |
270 |
|
With rotavator |
326 |
||
|
Working weight (with rotavator) |
kg |
365 |
|
|
Overall dimensions (LxWxH) |
mm |
2170x846 x 1150 |
|
|
Number of blades |
PCS |
17 |
|
|
Rototilling width |
mm |
900 |
|
|
Type of tractor |
|
Single axle, dual-purpose for both traction & drive |
|
|
Travelling speed |
Forword |
Km/h |
1.98, 3.08, 4.98, 8.04, 12.49, 20.2 |
|
Reverse |
1.53, 6.18 |
||
|
Type size |
|
6.00-12 |
|
|
Wheel track |
mm |
680~740(adjustable) |
|
|
Min. ground clearance |
mm |
210 |
|
|
Min. turning radius |
m |
0.71 (without rotavator) |
|
|

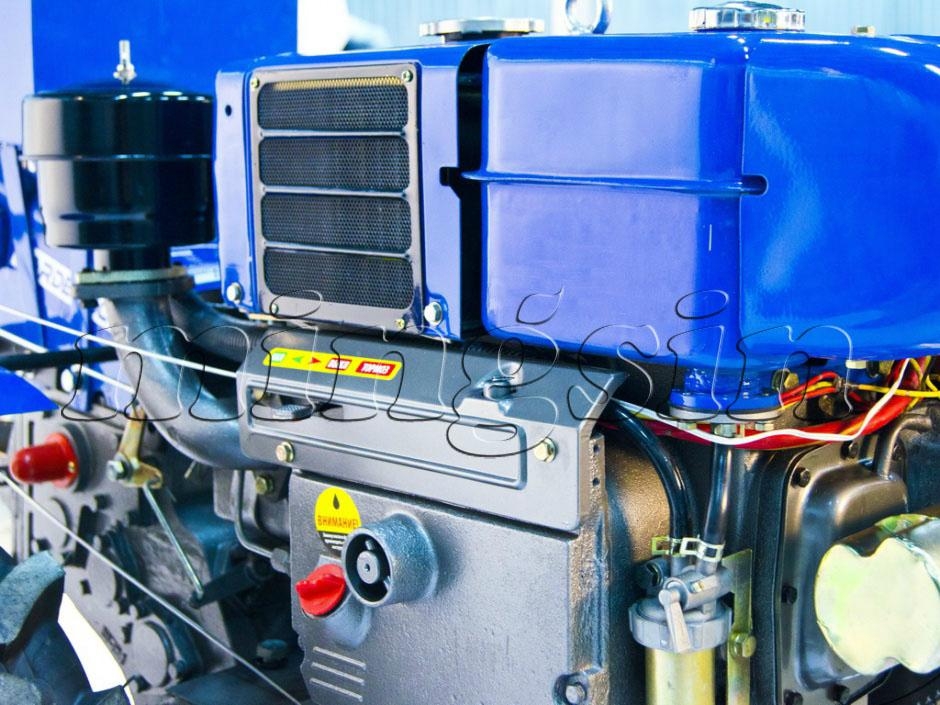

Model of engine |
|
195N |
|
|
Type of engine |
|
Horizontal 4-stroke |
|
|
Bore x stroke |
mm |
95×100 |
|
|
Total displacement |
L |
0.709 |
|
|
Compression ratio |
|
21:01 |
|
|
Turing speed of crankshaft |
rpm |
2200 |
|
|
12-hour rated output |
KW/hp |
8.10/11 |
|
|
Injection pressure Mpa |
Kgf/cm2 |
12.7+0.5(130+5) |
|
|
Advance angle of fuel injection |
16+2 |
||
|
Cooling mode |
|
Condenser (Radiator) or Hopper |
|
|
Main farm implements (optional)
|
Anti-skid steel wheel Model 100-640
|
||
| Advantages: | Heavy type designed at the basis of MX101. |
|---|---|
