20k Ultrasonic Plastic Welder

Model:	JD-1520
Brand:	Jieda
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Welding Solders
Label:	ultrasonic welding , pleastic welding , mp3 welding machine
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

Dongguan Jieda Ultrasonic Equipment Technology Co., Ltd

Free MemberGuang Dong - China

Live Chat:

Last Online:26 Aug, 2016

Product Description

1., Uses: for toys, electronics, plastic bags of small plastic parts such as welding and forming.

2, Features:

1, the whole machine is designed to prevent the heads off-axis concentric straight increase welding accuracy.

2, fine-tuned machine equipped with limiters, so that welding uniform, improve product qualified rate.

3, using gear up down design, and the speed of separation adjustment, easy to adjust, improve work efficiency.

4, transducer group with four screws to adjust the level of convenience, Huai do.

5, pneumatic original imported series, durable.

6, overload protection circuit design (current, frequency), using European, American, Japan and other places good parts, good quality and a strong.

7, time control using three-digit dial code switch, adjustable 1 / 100 seconds precision, easy to adjust the failure rate is low.

3, Parameters:

Specifications	JD-1020	JD-1520	JD-2020
output power	1000W	1500W	2000W
frequency	20KHz	20KHz	20KHz
input voltage	AC220V
welding head stroke	75mm
vibration head cooling system	air-cooled
oscillating system	Self-excited oscillation circuit
output time	0.01-9.99S
pressure	1-7bar
power output range	1-6 stall continuously adjustable
welding area (mm)	∮ 90	∮ 150	∮ 190
Dimension	400 × 660 × 900
net	110kg	110kg	120kg

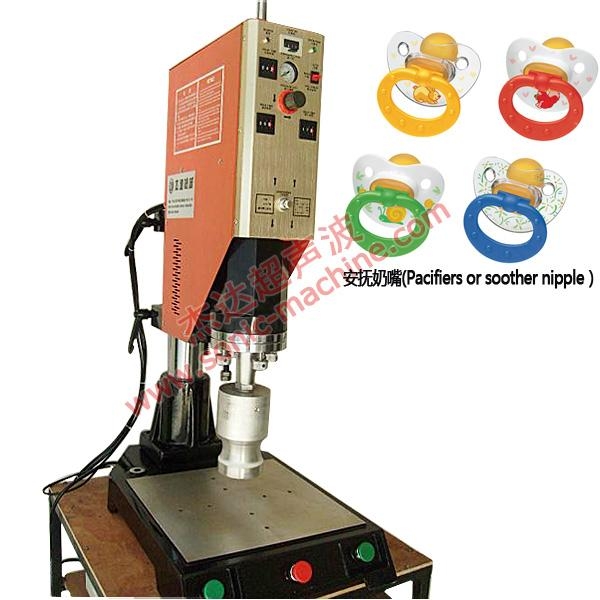

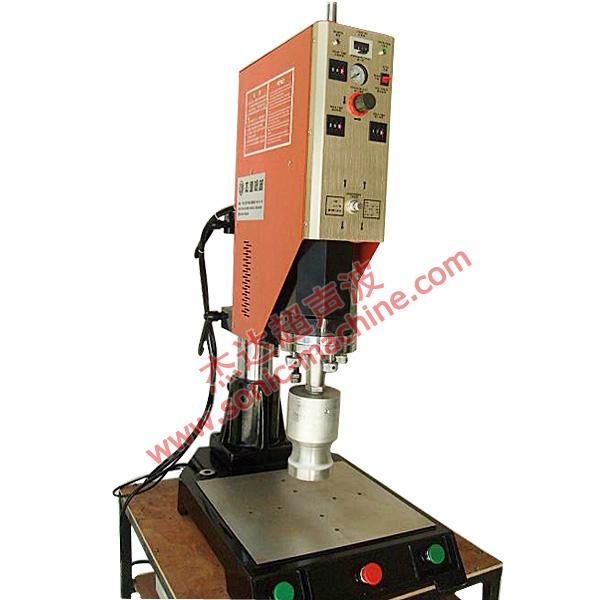

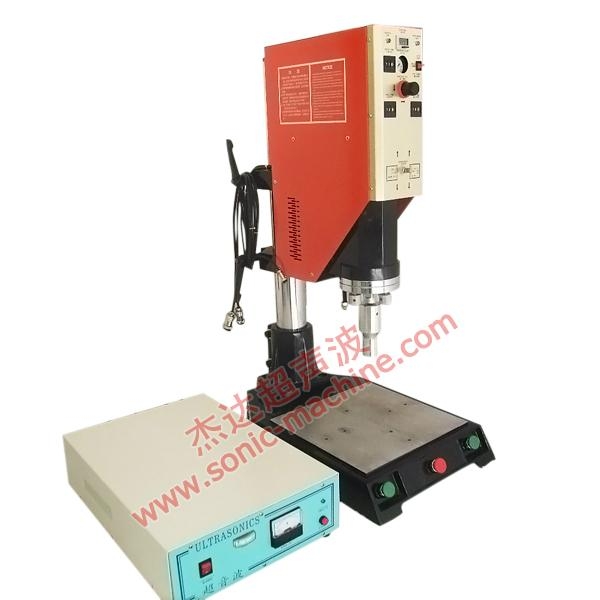

Product Image

Img 1

Img 2

Img 3
