| Model: | AMC |
|---|---|
| Brand: | AMC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Food, Beverage & Cereal Machine |
| Label: | packing machine , package machines , packing |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:07 Mar, 2024 |

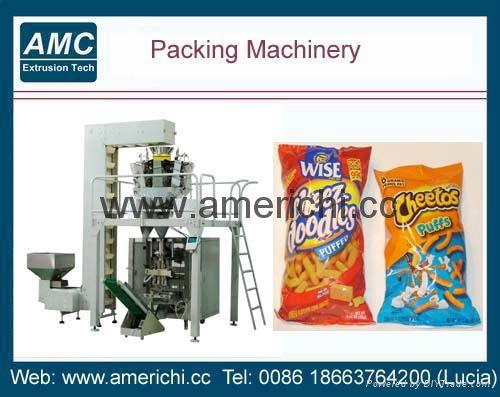

Vertical Packaging Machine
1. Complete system
1. AMC packaging machine
2. 10 heads combination weigher
3. Z type bucket elevator
4. Vibration feeder
5. Supporting platform
6. Finished product conveyor
2. Options
Check weigher; Metal detector; Turntable
3. Features
The machine completes the whole procedure of feeding, measuring, bagging, date printing, charging (exhausting), and finished product out-putting automatically. High accuracy, high efficiency without crashing the materials
4. Application
Suitable to package fragile materials demanding high accuracy, such as puffed food, corn flakes, pet food, baby food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, small hardware’s, medicine, etc.
5. Parameters
Items | AMC398 | AMC520 |
Packing speed | 5-80 bag/min | 10-70 bags/min |
Bag size | (W)60 | (W)80 |
Bag making mode | Pillow-type bag, standing bag, punch hold and connect | Pillow-type bag, standing bag, punching device |
Range of measuring | 150-1300ml | 3000ml(most) |
The Max width of packing film | ||
Thickness of film | 0.04 | 0.04 |
Air consumption | 0.6Mpa | |
Main power/voltage | 2.2KW/220V 50-60Hz | 4KW/220V |
Dimension | 1400×970× | 1430×1200× |
The weight of switchboard | ||
Film materials | OPP/CPP, OPP/CE, MST/PE, PET/PE | |
