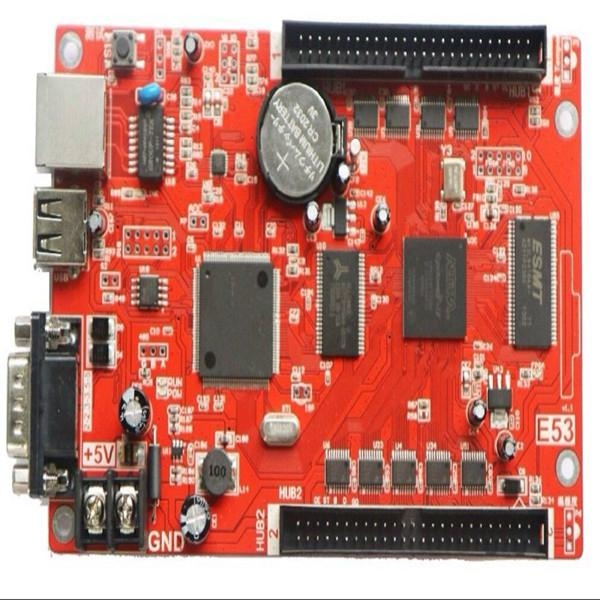

HD-E53 (Ethernet USB port+ Serial  led display controller )

1.Product type 100M-Network  controller asynchronously

2.Single color    2048W*512H 2048*256 4096*128
  Dual   color    1024W*512H  1024*256  2048*128
  Tri    color      680W*25H6  1360*128

3.Storage     2M(and it also can be extended)

4.Interface    2 of 50pin hub

5.Scan mode    supporting most modules,1/16,1/8,1/4,1/2 and static scan, etc

6.Communication type  Ethernet port+USB+Serial port

7.Software             HD2014(password is 168)

8.Programs quantity     200pcs

9.Time effects          supporting Perpetual calendar and virtual-clock effects

10.Districts            divided into 8 districts discretionarily

11.Clear display types   supporting 30 types of clean display effects ,and also select clean type random;Supporting much more than 50 types of display showing effects.Supporting temperature

12.Magic boarder         200 types of boarder effects(classic + magic boarder)

13.Luminance  adjustment supporting 50 levels of luminance  adjustment
                       supporting Luminance adjustment by time
                       supporting setting autumatic (you will add luminance sensor by yourself)

14.Picture              it support gif   jpg  jpeg  png  bmp ; support txt  rtf   hf file ;also support animation

15.Time switch          defined time to turn on or turn off

16.Voltage                  4.2-5.5V

17.working temperature     -40℃ +75℃
18.Warranty               1 year
