| Model: | SE-3230 |
|---|---|
| Brand: | CNC mould die router |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | CNC mould die router , small mould die make , woodpecker router |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:13 Dec, 2018 |
Applications:

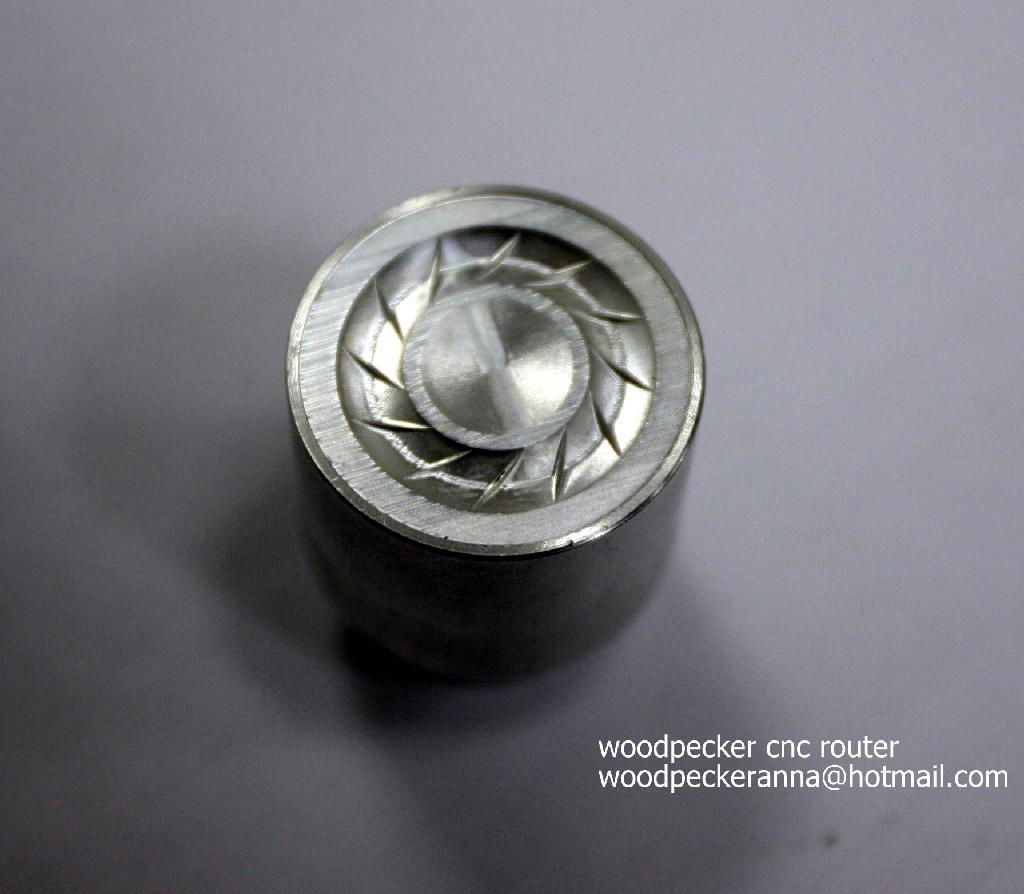

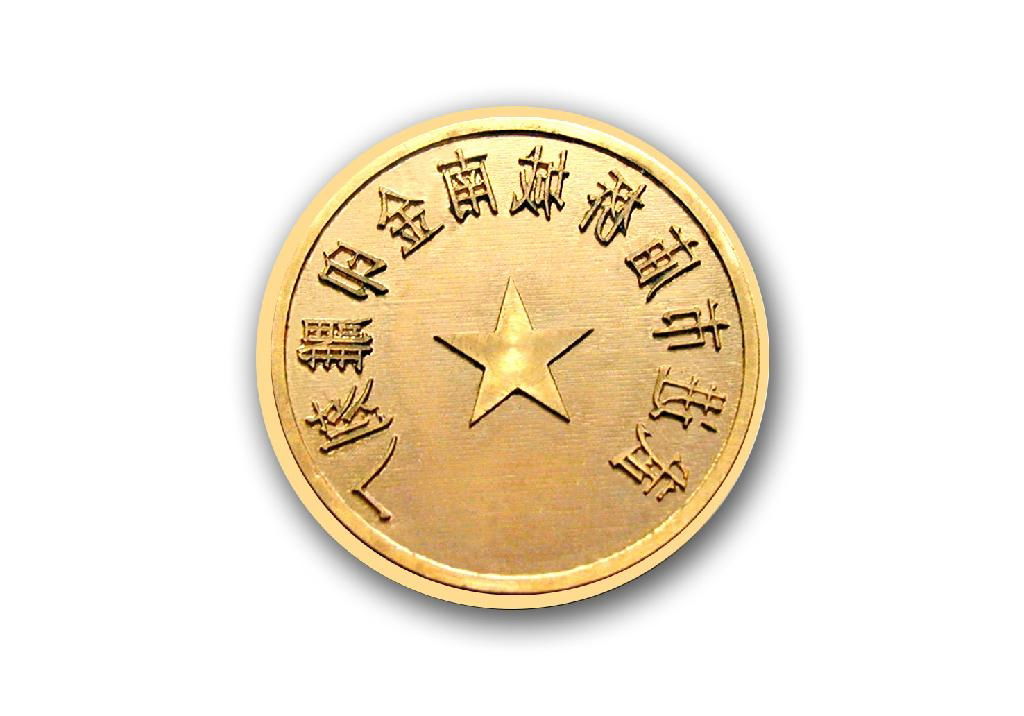

Prototype, button relief die, small punch die, small high-frequency mould, printing foil mold, injection mold
Precision Repeatability | ±0.04/300 | mm |
Spindle | 1200 | w |
Spindle Rate | 24000 | r/min |
Cutting Tool Diameter | Φ3.175,Φ4, Φ6 | mm |
Max Movement Speed | 3 | m/min |
Max Working Size (X, Y, Z) | 320*320*100 | mm |
Consumption | 2 | kw |
External Size | 1000*920*1360 | mm |
Power source | AC220V±10% 50HZ | v/hz |
Wooden case packing CBM | 1.22*1.10*1.75 | m |
NW/GW | 130/180 | kg |
| Payment Terms: | TT |
|---|---|
