100kva Cummins diesel generator set
Product Description
Product Description

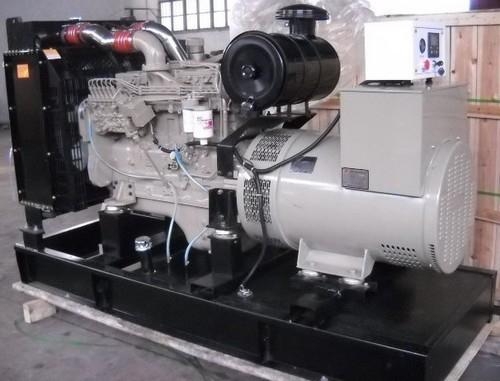

100KVA diesel generator cummins engine

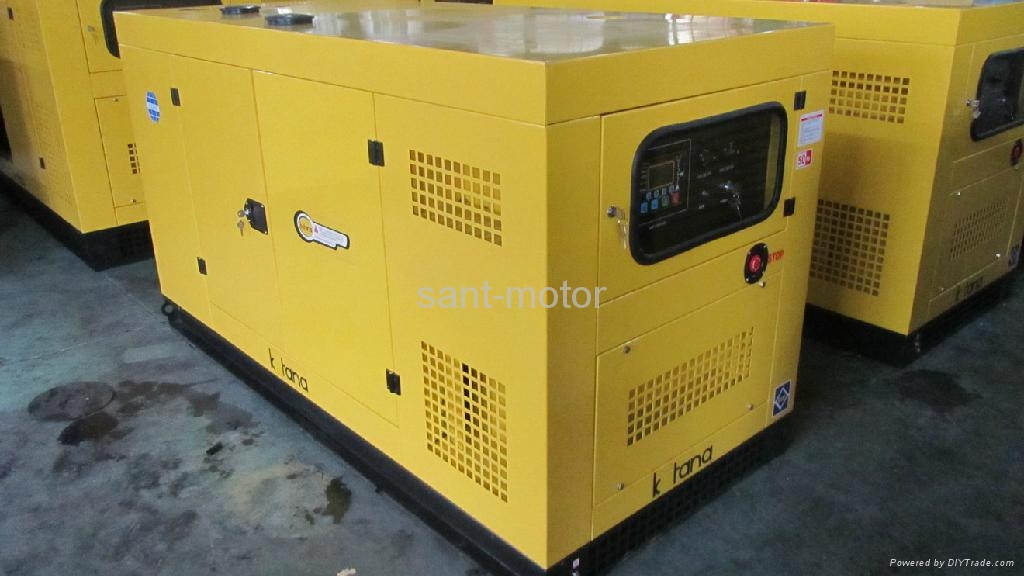

Model: GF-C 100KVA (silent type)
Power by Cummins Engine
Continuous Power (50Hz): 80kw/100KVA
Engine Model: 6BT5.9-G2
Engine Power (50Hz): 94kw
Speed: 1500rpm
Engine configuration: 6-cylinder in line. 4-strokes, exhaust gas turbocharged, direct spray fuel system.
Engine cooling mode: The radiator suitable for 40º C temperature, strap drive the cooling fan with protection cover.
Speed control system: Mechanical speed controller, electricity-magnet valve control switch(optional)
Start model: 24V direct current start

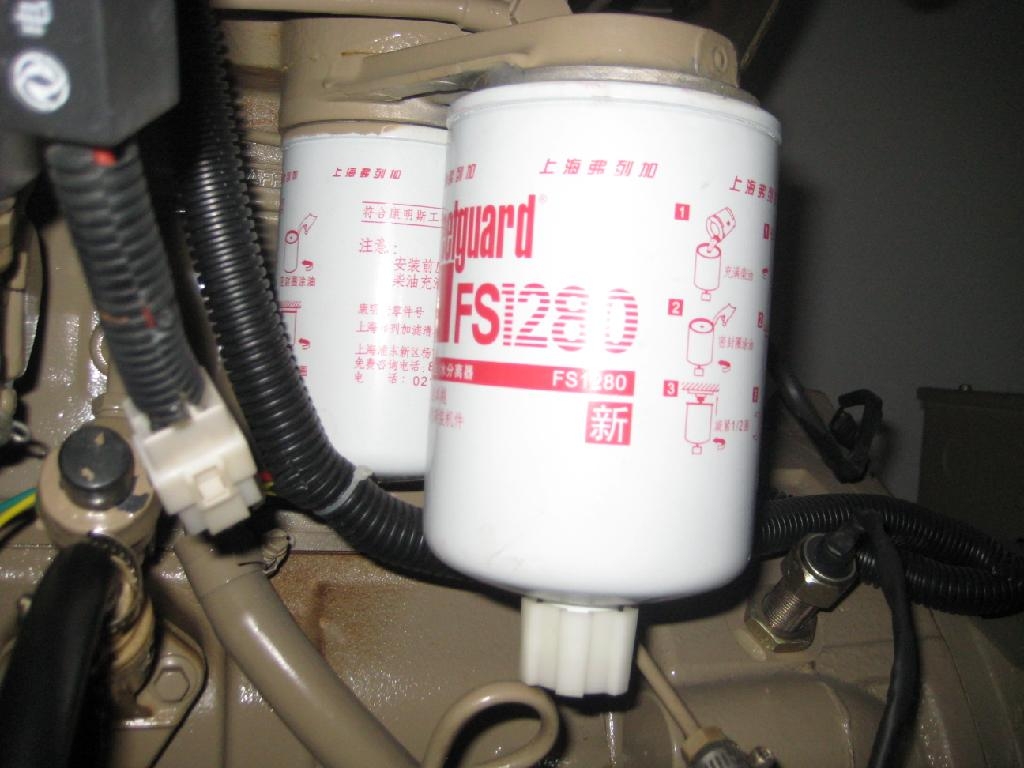

Engine filter system: Dry air filter type, fuel filters, lube filter.
Engine total displacement: 5.9L
Compress ratio: 17.5: 1
Bore× Stroke: 102× 120
Specific fuel consumption: ≤ 220g/kw. H
Lubricating oil consumption: ≤ 1.36g/kw. H
Oil Capacity: 13L
Coolant Capacity: 27L
Alternator Model: Brushless 100kw
Alternator Power: 80kw/100KVA
Rated Voltage/Frequency: 380V/220V 50Hz
Power Factors: 0.8Lag
Phase: 3-phase & 4 Line
Stable Voltage regulator: ≤ ± 3
Insulation Class/Protection Grode: H Class/IP 23
Dimension: 2600× 1050× 1600 with base fuel tank
Weight: 1500kgs
Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
