| Model: | SD5000 |
|---|---|
| Brand: | LC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | IR hot drying tunnel , infrared-ray dryer , drying tunnel |
| Price: |
US $5727
/ SET
|
| Min. Order: | 1 SET |
| Live Chat: | Last Online:23 Aug, 2023 |
Description:
IR Drying tunnel for variety of screen printing, pad printing and spraying thermosetting ink processing such as heat press, electric products, ( silicon, electric membrane film key press, window glass. )

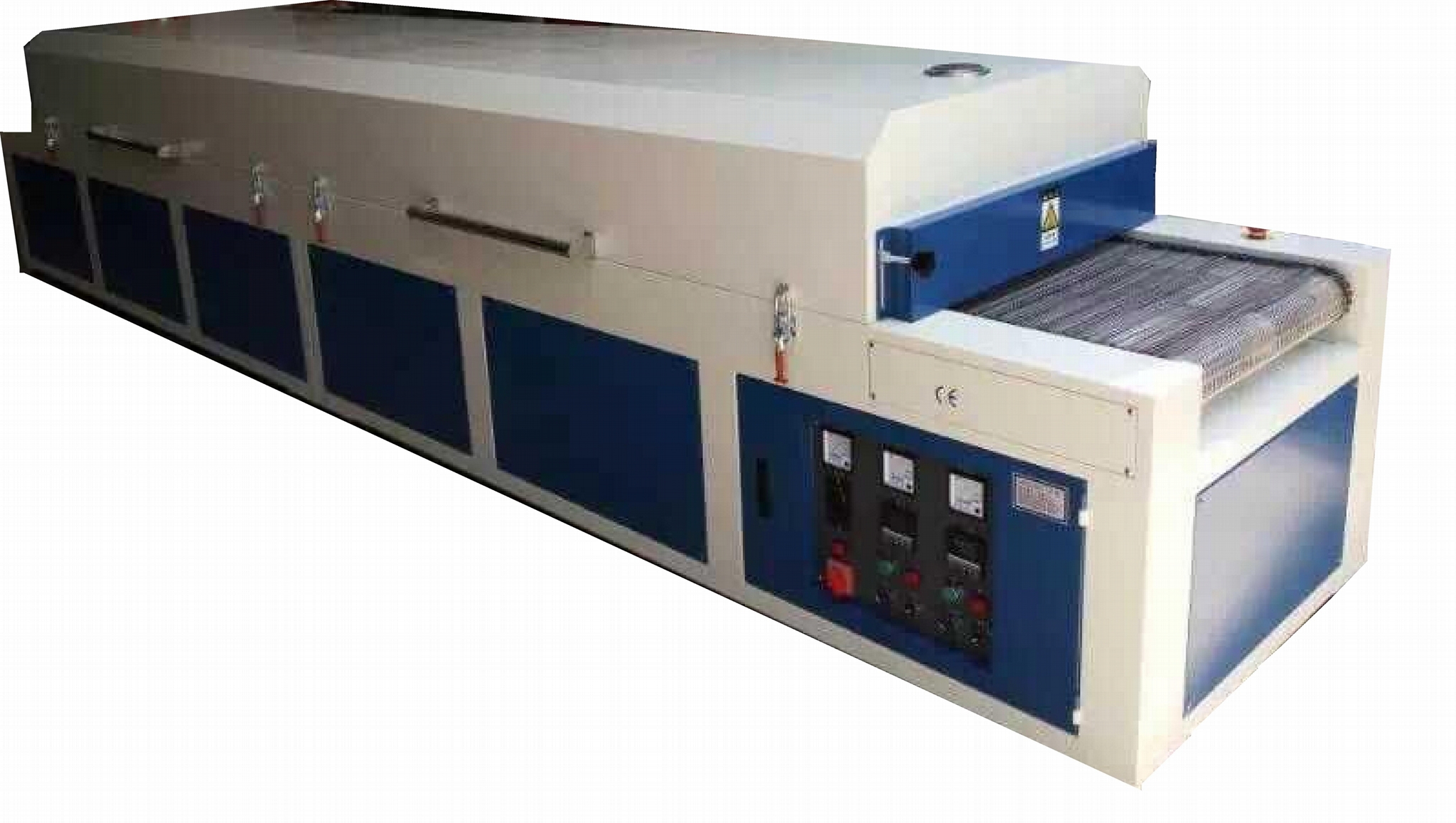

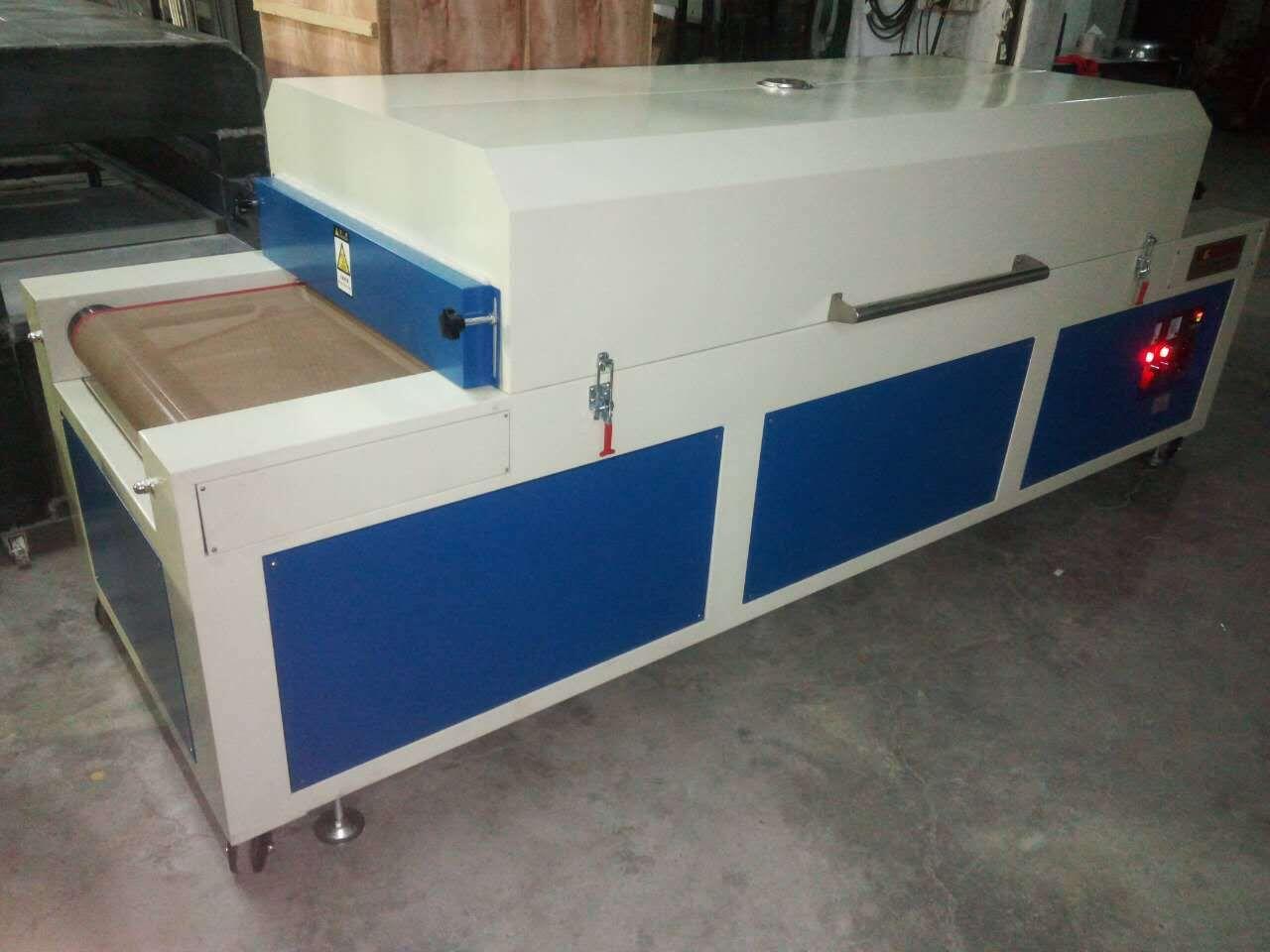

This conveyor dryer is widely used in the drying of screen printing industry,is especially suitable for solidifying heat-set and special type of printing ink.This tunnel dryerenables the production of printed products with good colorfastness, high flexibility and high gloss.
Features:

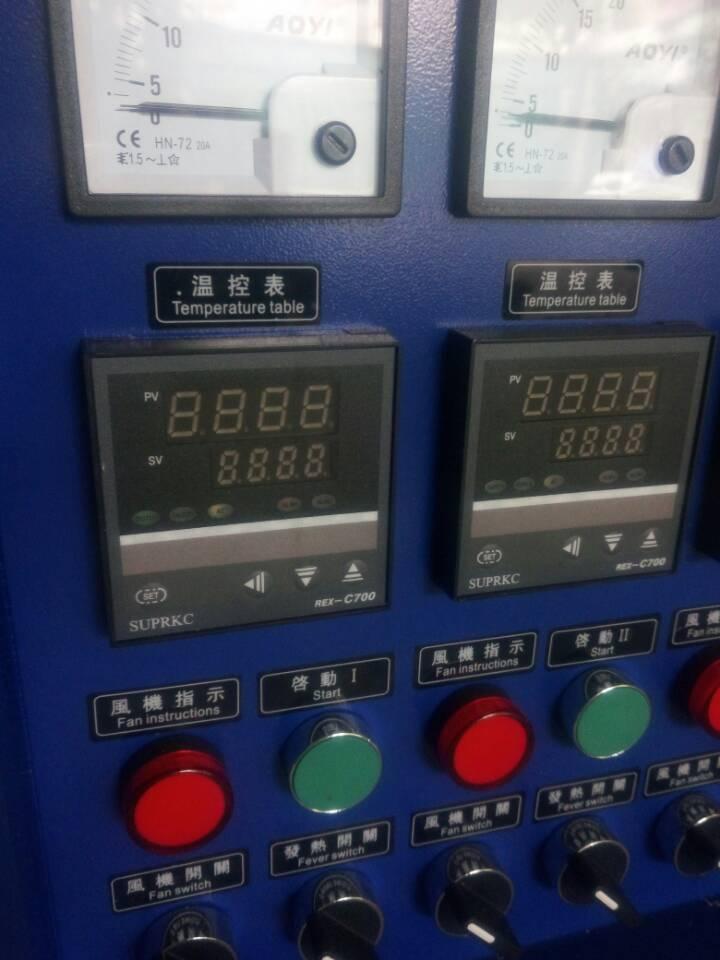

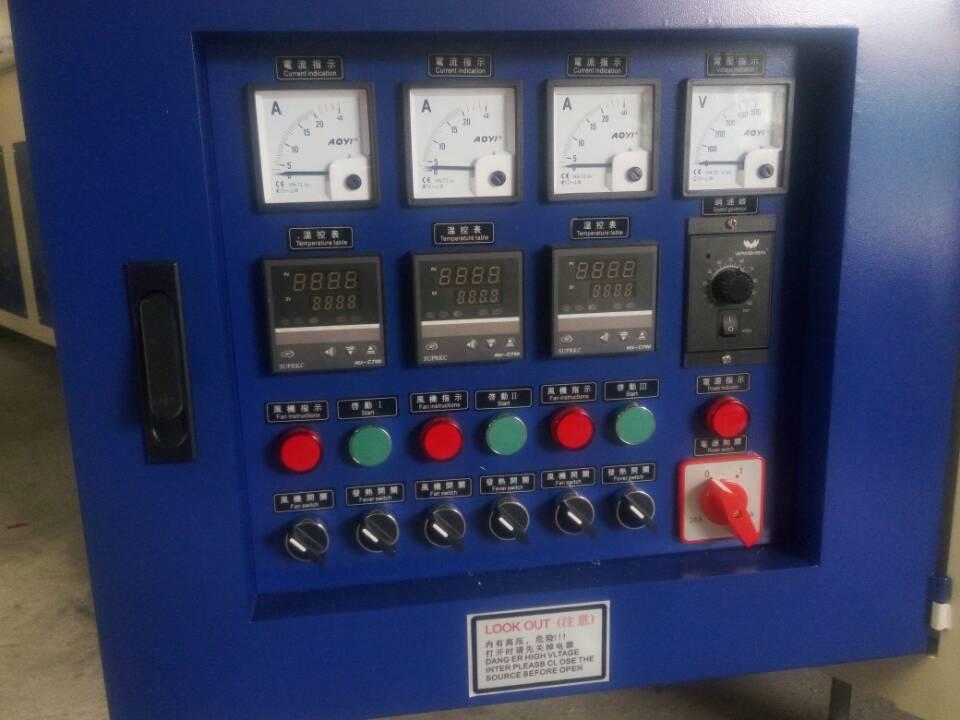

1. Intelligent temperature control system,easy operation,can control of temperature deviation effective.
2. adopt hot circulating system,save energy effectivly.

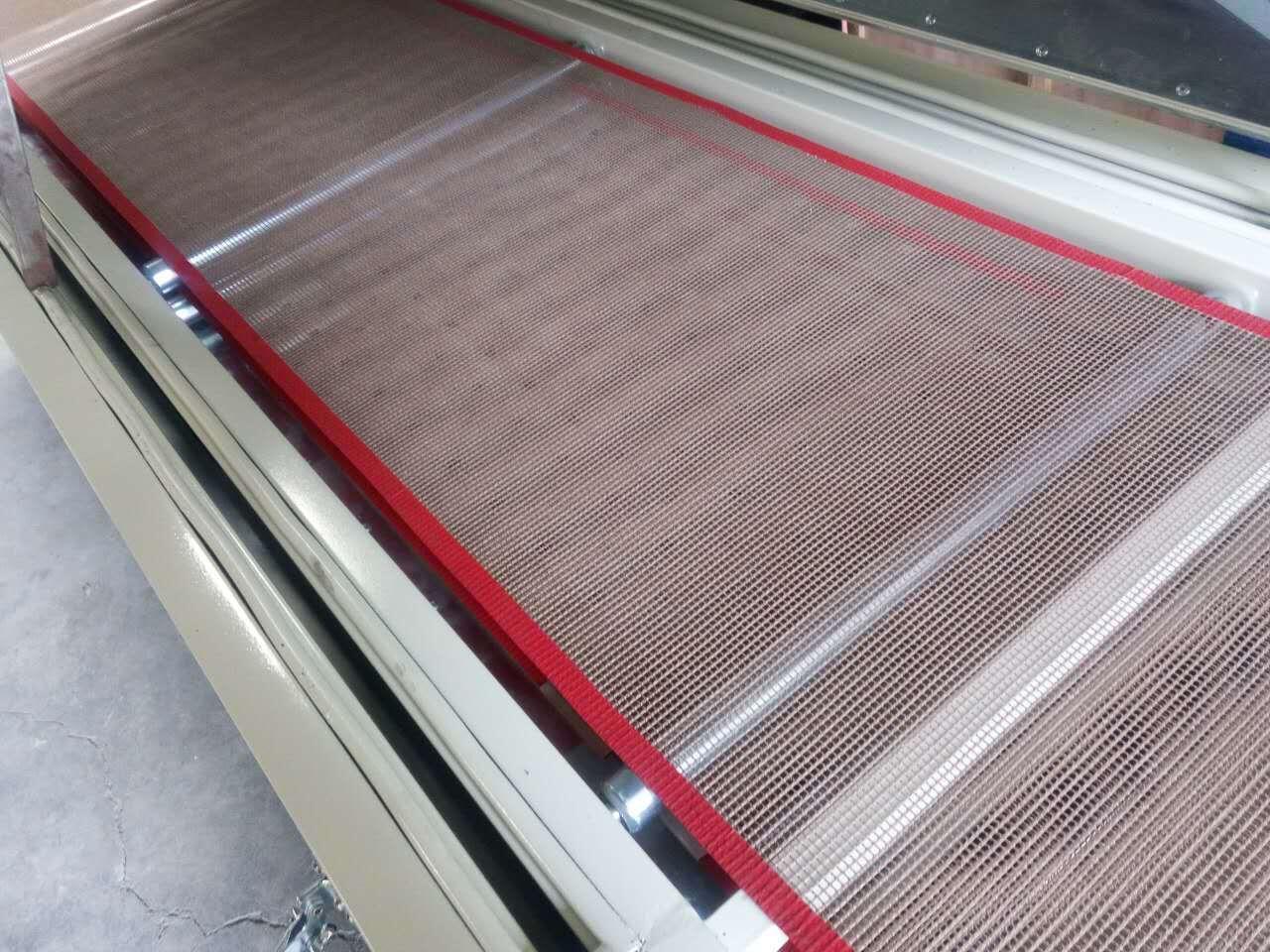

3. Teflon screen belt , customers' designs are welcome
4.Far infrared heating pipe is especially suitable for solidifying heat-set and special type of printing ink.
5.Adjustable belt speed and tunnel temperature controls.
Parameters:
|
1． |
Conveyor length :5000 |
|
2 |
Conveyor width:600mm |
|
3 |
machine size: (L)5100x(W)1050x(H)1260mm |
|
4 |
working power: AC 380V 50HZ |
|
5 |
Temperature adjustment: 0-200 Centigrade |
|
6 |
constant temperature will be 2º C more or less |
|
7 |
temperature resolution: 1º C |
|
8 |
Belt speed adustment: 0-10M/MIN. Hight of the entrance :120mm |
|
9 |
Package dimensions: 261*149*131cm Package weight: 500kg |
|
Warranty |
For all our machines, we provide one-year warranty.
|
