spiral press filter

Model:	051
Brand:	Yiqing
Origin:	Made In China
Category:	Industrial Supplies / Environment Protection Facilities / Sewerage
Label:	sludge dewatering , conveyor belt , polyester filter bel
Price:	-
Min. Order:	-

Inquire Now Add to Basket

Member Information

hangzhou yiqing filter material co., ltd

Free MemberZhe Jiang - China

Live Chat:

Last Online:09 Nov, 2021

Product Description

Introduction

Thread Diameter(mm):
Wrap/Material:		0.9/PET
Weft/Materia:		1.05/PET
Mesh count(cm):
Wrap:		51±1
Weft:		14±1
Air Permeability(L/m².S):
127Pa:		4650～4850
200Pa:		5950～6250
Water permeability(m³/m².s):		0.48～0.50
Water permeability resistance X10⁶(mm):		2.17～2.27
Maximum ebullition aperture (mm):		10593
Boiling aperture (mm):		8000
Aperture contrast:		0.76
Aperture rate(%):		60
Thickness(mm):		3.12
Thickness abrade =10⁴(%):		3.79
Tensile strengths(N/cm):		1300
Weight(g/m²):		1627
Using range:

Filter cakes tend to peer off；applicable for sludge dehydration of sewage treatment factories、Paper mills and chemical industry

Payment Terms:	TT
Embed HTML Code:

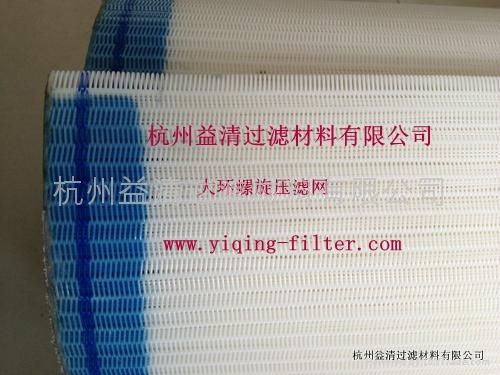

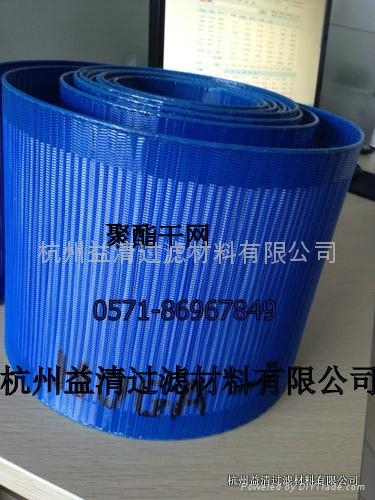

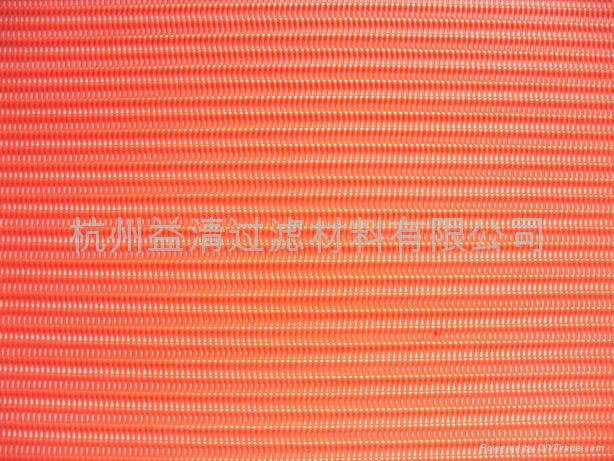

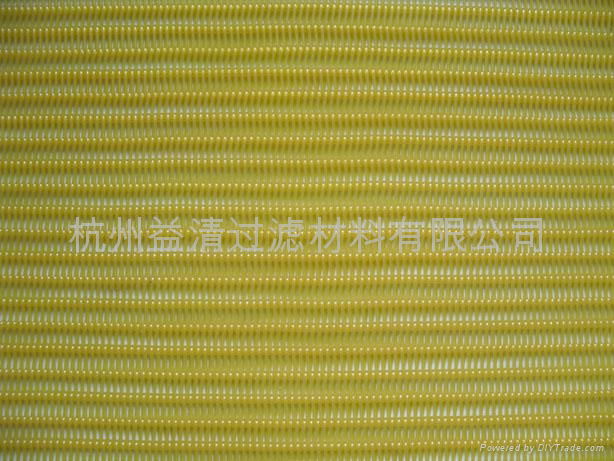

Product Image
