WCDMA&CDMA2000 Series Directional Panel Antenna TCDJ-B-14-2000S-90
Product Description
|
ELECTRICAL SPECIFICATIONS
|
|
Frequency Range
|
1920~2170 MHz
|
|
Impedance
|
50Ω
|
|
VSWR
|
＜1.4
|
|
Gain
|
14 dBi
|
|
Front To Back Ratio
|
>25 dBi
|
|

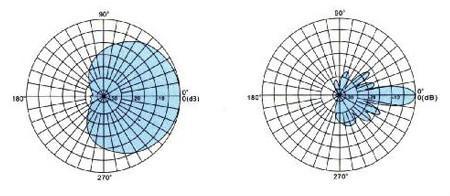

E-plane-3dB Beam width
|
90°
|
|
H-plane-3dB Beam width
|
14°
|
|
Polarization
|
+45°/ -45°
|
|
Lighting Protection
|
Direct Ground
|
|
Connector Place
|
Bottom
|
|
Connector
|
7/16 DIN-Female
|
|
Maximum Power Input-watts
|
250W
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions
|
(L/W/D) 650×160×64 mm
|
|
Weight
|
3.1 kg
|
|
Rated Wind Velocity
|
60 m/s
|
|
Operating Temperature
|
-50℃～70℃
|
|
Mounting hardware
|
Ф50～Ф100 mm
|
|
Radiating Element Material
|
Cu Ag
|
|
Reflector Material
|
Aluminum Alloy
|
|
Radome Material
|
PVC
|
|
Radome Color
|
Gray
|
|
Product Image
Img 1
Img 2
