| Model: | EB-70PC |
|---|---|
| Brand: | RESUN |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Computers / Embedded Computer & SCM |
| Label: | embedded pc , industrial panel pc , windows ce pc |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:26 Oct, 2021 |
Industrial Panel PC Application: idea solution for industrial control terminals in hotel, hospital and super stores, industrial security monitoring, Video conferencing systems & Dinner ordering systems, etc.

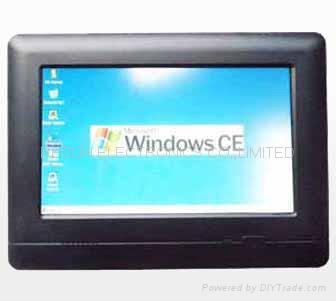

Industrial Embedded PC with touch screen function,
based on Windows CE, support Embedded Visual C++ 4.0 developing
Memory with SD Card;
USB interface × 4, RS232 × 2;
Earphone output;
Multi-language OSD.
| Display Screen | 7" LCD LED backlight |
| Resolution | 800×480 (1,152,000 pixels) |
| Touch Panel | 4-wire resistive |
| Brightness | 300cd/㎡ (optional:450cd/㎡) |
| Aspect Ratio | 16:9 |
| OS | Windows CE 6.0, Linux 2.6.32 |
| CPU | Samsung S3C2416, 400MHz processor |
| Memory | 512MB Flash ROM + 128 MB DDR2 RAM |
| Expansion Storage | SD Card / USB Flash Memory
SD card supports up to 8G (internal & external) |
| Transfer Interface | 10 / 100M Ethernet supports
USB1.1 × 3, Mini USB 2.0 × 1 (active sync) RS232 × 1 / RS485 × 1 or RS232 × 2 |
| Speaker | 1W |
| Power consumption | 8W |
| Working Temperature | -10 - 65ºC |
| Storage Temperature | -25 - 80ºC |
| Power Supply | DC 12V (optional: 9-24V) |
| Dimension(LWD) | 200 × 151 × 50 mm |
| Weight | 516g / 610g (with battery) optional |
