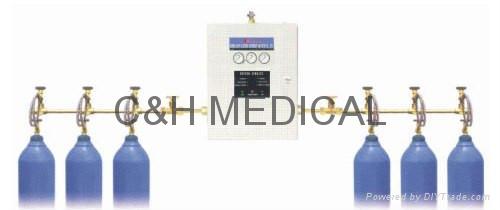

Automatic gas manifold consists of a manual gas manifold and an auto-control cabinet which maintains automatic switch between two gas sources through pressure difference between the two gas sources.

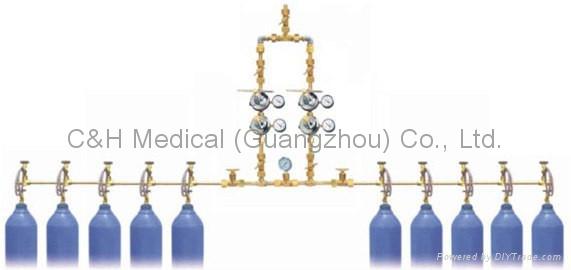

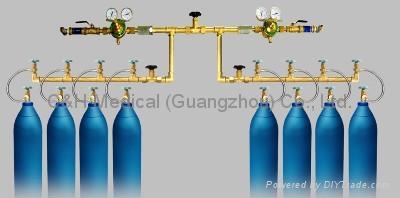

Automatic gas manifold also has manual-switch device so that when the auto control cabinet cannot work properly, the gas supply is not interrupted.

Detailed information
*Specially designed for automatic switch between two gas sources and is used for refilling gas.
*Designed with pressure-reduce device which maintains a stable output pressure and an emergency outlet which opens when the pressure is too high.
*Both audio and light alarms turn on automatically when one of the gas sources is used up.
*Designed with a pressure gauge which shows clearly the pressure of each gas source and the total pressure at the outlet.
*A filter device screens out all the impurities in the gas sources.
*The whole system has successfully undertaken pressure tests.
*It can be applied in handling the following gases: O2, N2O, N2 and CO2.
*In strict accordance with Q/SVDQ 01-2005 standard (Chinese ) and IEC 601-4(Medical system) standard (international).

Technical Index
*Rated input pressure: 15Mp
*Working output pressure: P2: 0.6Mpa ( adjustable from 0 to 0.6 Mpa)
*Rated flow: 30m^3/h
