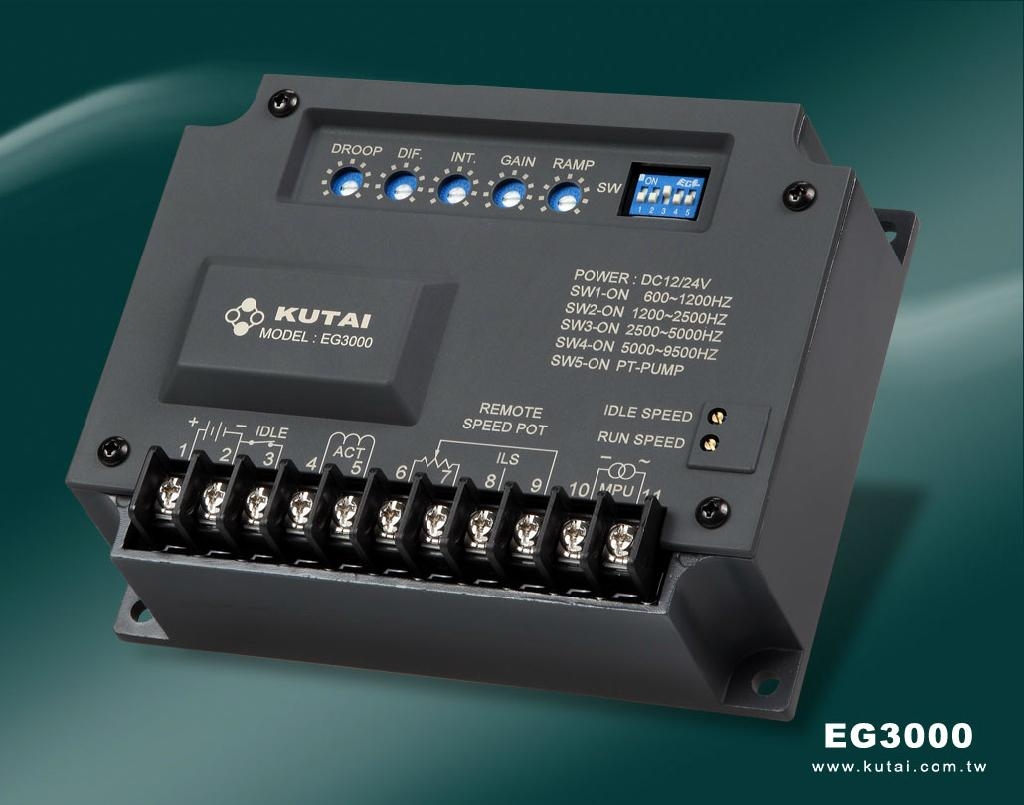

Generator Electronic Governor Controller also known as Engine Speed Control or Engine Governor. It has smoke limit and idle speed control. It's suitable for petrol generator, diseal generator, and natural gas generator. It's compatible with Cummins, Woodward, Barber Colman, and GAC's governor.

Features

• Works on a wide ranges of MPU/flywheel frequencies
• 15Amp Max output
• Suitable for all types of diesel and gas engines
• High sensitivity and stable at low frequency variations
• Moisture, vibration, and rust protected, epoxy encapsulated electronics
• For use with isochronous generators & automatic paralleling PLC controls
• Idle speed adjustment and connections for a remote speed POT

• Specifications

  Operating Voltage	10VDC to 30VDC
  Output Current	From 0.5Amp to 15Amp
  Frequency Range	600Hz ~ 9500Hz (PMG signal)
  Idle Speed Frequency	Adjustable from 30~85% of normal
  Speed Band	±0.25% at steady state
  Temp. Stability	Between -40~85°C better than ±0.5%
  Remote Speed Adjustment Range (2 mode)	Adjustable range ±5% with 5K ohm potentiometer
  Ramp Time	3 to 20 sec. (Adjustable)
  Environment	Operation Temperature -40~85°C Storage Temperature -40~85°C Relative Humidity Maximum 95% Vibration 3G @ 100~2KHz
  DIP Switch Description	SW1 : ON   600~1200Hz SW2 : ON   1200~2500Hz SW3 : ON   2500~5000Hz SW4 : ON   5000~9500Hz
  Governor Controls	DROOP : Droop Rate Adjustment GAIN : MPU Output Gain Adjustment INT. : Engine Stability Adjustment DIF : Differential Adjustment RAMP-TIME : Soft Start Adjustment SPEED : Speed Adjustment IDLE : Idle Speed Adjustment
  Dimensions (LxWxH)	147.0 x 114.0 x 40.0 mm
  Weight	690g ±2%
