| Model: | CY-TD200 |
|---|---|
| Brand: | cnsolarpower |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / New Energy / Solar Energy |
| Label: | 200W solar panel , pv solar panel , solar power system |
| Price: |
-
|
| Min. Order: | 50 pc |
| Live Chat: | Last Online:01 Mar, 2019 |

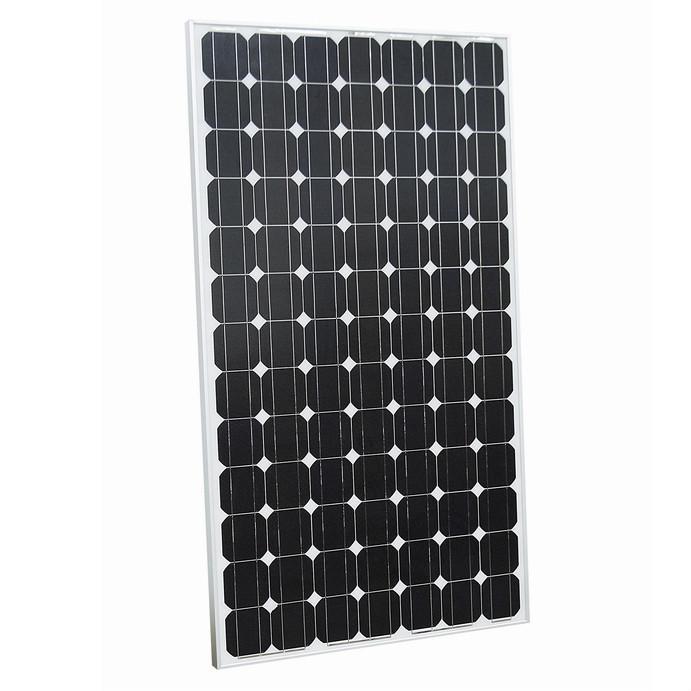

Maximum power: 200W
Power tolerance: ±5%
Maximum power voltage Vm :46.46V
Maximum power current Im:
Open circuit voltage Voc: 57.12V
Short circuit current Isc :
Maximum system voltage: 1000
Cell efficiency : 16%
Module efficiency : 15%
Solar cells type and arrangement : Monocrystalline 125x
Cable type ,diameter and length :
Type of junction box: TUV certified junction box
Type of connector : Compatible type lll
No.of bypass schottky diode: 3piece
Temperature coefficient of Pm: -0.45%/℃
Temperature coefficient of Voc :-0.35%/℃
Temperature coefficient of Isc: +0.05%/℃
Standard test conditions: Am1.5
Temperature range:
Size of module : 1580*1050*
Weight of module :
Packing: 2pcs/carton
Outer carton size: 1620*1080*
Gross weight/Carton :
Certificate: CE IEC61215 ROHS
| Payment Terms: | BY T/T |
|---|---|
