| Model: | DM-P-120 |
|---|---|
| Brand: | MANY BRIGHT |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / New Energy / Solar Energy |
| Label: | 120 watt solar modul , poly solar module , poly solar panel |
| Price: |
US $0.55
/ Watt
|
| Min. Order: | 120 Watt |
| Live Chat: |  | Last Online:04 Apr, 2019 |

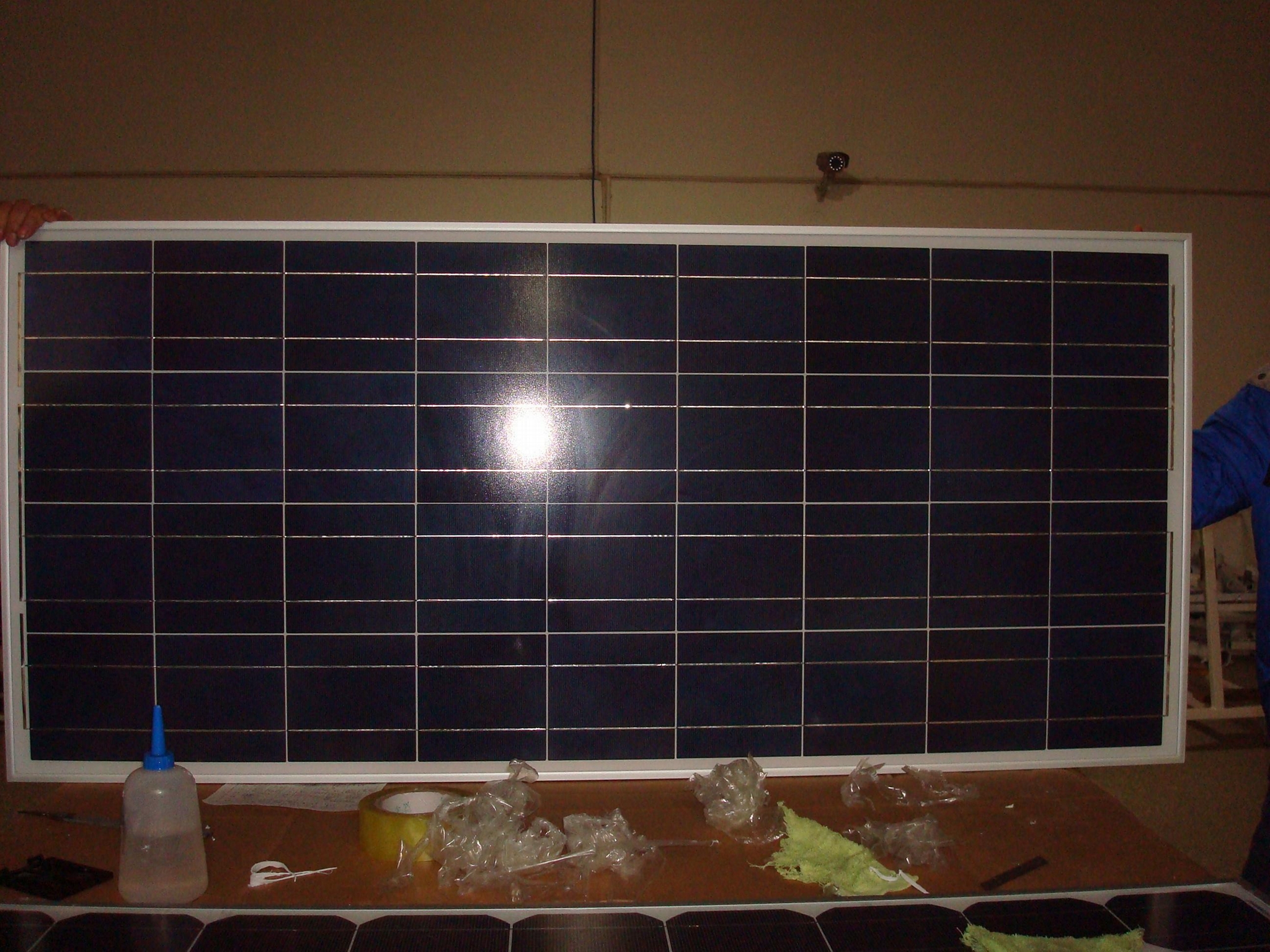

120 WATT POLYCRYSTALLINE SOLAR MODULE
TUV,CE,ISO9001:2000 CERTIFICATE
OVER 20 YEARS' LIFE
|
Maximum Power (W) |
120 |
|
Optimum Power Voltage (V mp) |
18 |
|
Optimum Operating Current (I mp) |
6.66 |
|
Open Circuit Voltage (Voc) |
21.69 |
|
Short Circuit Current (ISC) |
7.4 |
|
Cell Efficiency (%) |
14% |
|
Module Efficiency (%) |
14% |
|
FF (%) |
70-76% |
|
Standard Test Conditions |
AM1.5 1000W/ 25 +/-2°C |
|
Bypass Diode Rating (A) |
12 |
|
Cable & Connector Type |
Pass the UL Certificate |
|
Size of Module (mm) |
680*1480*35MM |
|
Solar Cell |
156.156 poly |
|
Backing (Material) |
TPT |
|
Frame (Material Corners, etc.) |
Aluminum-alloy |
|
Number of Cell (PCS) |
36 |
|
N/W(KG) |
12 |
|
Junction Box Type |
Pass the UL Certificate |
|
Tolerance Wattage (e.g. + /-5%) |
±2~5% |
|
Front Glass Thickness (mm) |
3.2 |
|
Surface Maximum Load Capacity |
2400Pa |
|
Allowable Hail Load |
23m/s, 7.53g |
|
Packing 20' |
250pcs |
|
Temperature Coefficients of ISC(%): |
0.04 |
|
Temperature Coefficients of Voc(%): |
-0.38 |
|
Temperature Coefficients of Pm(%): |
-0.47 |
|
Temperature Coefficients of IM(%): |
0.04 |
|
Temperature Coefficients of VM(%): |
-0.38 |
|
Temperature Range |
-40°C to +85°C |
| Payment Terms: | T/T |
|---|---|
