Norminal Current: 16A, 32A
No. of Pole: 2P+E, 3P+E, 3P+E+N
Norminal Voltage: 230V, 400V
Colour: Red, Blue
Degree of Protection: IP44,IP67
Standards: IEC60309-1 IEC60309-2

Certification: SEMKO, CE, CB,ROHS
For more information,please visit our homepage www.chinahtdq.com
or feel free to contact me: ice.huang@chinahtdq.com

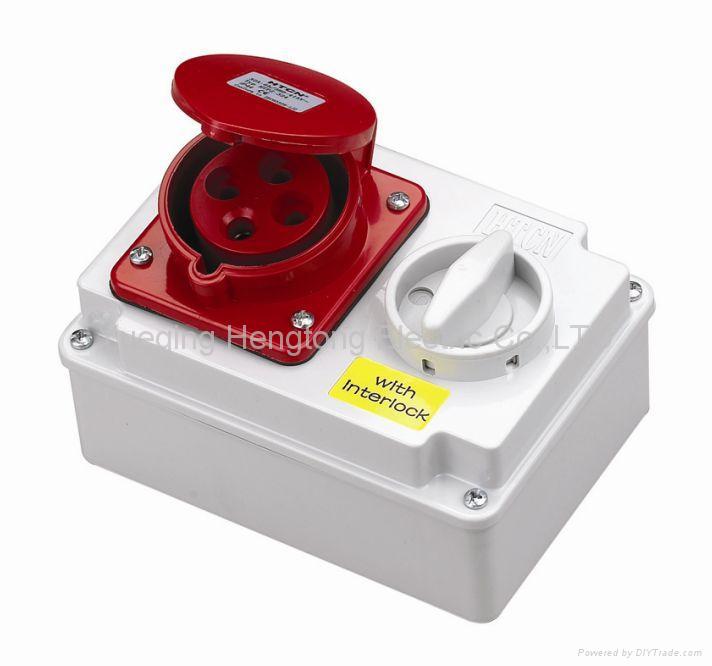

RAL 7035 grey, housing made of insulating material; Flame and fire resistance, the base overcome the glow wire test at 850 centigrade;
Mechanical interlock enabling the switch to be operated only when it's plug-in,
the plug can only be pulled out when the switch is on "O";
Switch with handle which can be padlocked from outside in position "O" and "I";
Switch is in compliance with IEC 60947-3, usable AC 21,AC 22, AC 23;
Degree of protection is IP44;Mechanical protection degree is IK8.
