| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | blow molding machine , blow mould machine , blow moulding system |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:10 Jul, 2017 |

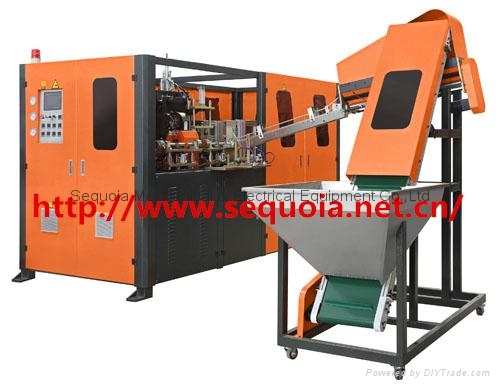

Large capacity PET bottle blow molding machine using a special preheating system and drive system, compared to other manufacturers of similar models of energy saving in more than 50%.
Widely used in edible oil, water and other PET bottles packaging.
Features:
1.Large capacity PET bottle blowing machine mechanism:using the original high-pressure integrated valve group to protect a single cavity production capacity increased by 60%.
2.Centralized heating mechanism: the new patented thermostatic thermal cycle light box, heating intercept is 101mm, compared to other domestic rivals 240mm, power saving more than 50%.
3.Blowing machine stretching mechanism: linear slide mechanism to replace the linear bearing, stability improved greatly.
4.Blowing machine main drive mechanism: high-precision double row roller chain patented technology to ensure the stability of equipment and high-speed demand.
5.Hydraulic clamping system: to replace the traditional pneumatic clamping system to ensure the stability of the clamping, rate of qualified products more than 99.8% .
|
Item |
SDPC-1 |
SDPC-2 |
|
|
Bottle type specification |
Cavity |
1 |
1 |
|
Productivity（pcs/h） |
1000-1200 |
800-1000 |
|
|
Max.volume |
10L |
20L |
|
|
Max.neck diameter(mm) |
150mm |
150mm |
|
|
Max.container diameter(mm) |
240mm |
350mm |
|
|
Max.container height(mm) |
450mm |
550mm |
|
|
Power specifications |
Light tube quantity |
48pcs |
48pcs |
|
Light tube power |
1.5KW |
1.5KW |
|
|
Maximum heating power |
72KW |
72KW |
|
|
All electric machine installation |
75KW |
75KW |
|
|
Actual consumption |
37.5KW |
37.5KW |
|
|
Air pressure specification |
Work pressure |
7-9kg/c㎡ |
7-9kg/c㎡ |
|
Low-pressure gas consumption |
1600L/min |
1600L/min |
|
|
Blow bottle pressure |
25-35kg/c㎡ |
25-35kg/c㎡ |
|
|
Higher-pressure gas consumption |
2000-3000Ltr/min |
2000-3000Ltr/min |
|
|
Frozen water specification |
Work pressure |
5-6kg/c㎡ |
5-6kg/c㎡ |
|
Temperature range |
10℃ |
10℃ |
|
|
Consumption |
8800kcal/hr |
12000kcal/hr |
|
|
Frozen water flow |
88L/min |
88L/min |
|
|
Machine specification |
Machine size(m) |
2.7*1.5*1.7 |
5.2x2.0x2.0 |
|
Machine weight(Ton) |
3.6 |
6 |
|
