| Model: | UG-46## |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Sealing & Gaskets |

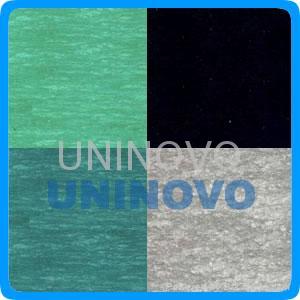

| Label: | oil proof sheet , non asbestos sheet , aramid rubber sheet |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:09 Mar, 2019 |
Comparison of physical properties
Item | No.4220 | No.4225 | No.4235 | No.4240 | No.4250 | No.4260 | No. 4200E |
Continuous operating temperature（℃） | 180 | 200 | 250 | 250 | 250 | 250 | 250 |
Max short term temperature（℃） | 250 | 400 | 450 | 450 | 450 | 450 | 450 |
Max operating pressure（MPa） | 4 | 6 | 8 | 10 | 13 | 15 | |
Physical Properties | |||||||
Tensile strength（across grain） | 6 | 8 | 10 | 12 | 15 | 18 | 12 |
Compressibility（34.3MPa）（%） | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Recovery（34.3MPa）（%） | 45 | 45 | 50 | 55 | 55 | 60 | 50 |
Density（g/cm3）±0.05 | 1.75 | 1.75 | 1.80 | 1.8 | 1.8 | 1.8 | 1.65 |
Oil resistance〈ASTM3# OIL | |||||||
Thickness increase （%） | 10 | 8 | 5 | 5 | 5 | 5 | 10 |
Weight increase （%） | 10 | 8 | 5 | 5 | 5 | 5 | 15 |
Fuel oil resistance 〈ASTM fuel oil B RT @5h〉5 | |||||||
Thickness increase （%） | 10 | 8 | 5 | 5 | 5 | 5 | 10 |
Weight increase （%） | 10 | 8 | 5 | 5 | 5 | 5 | 15 |
Creep relaxation 〈ASTM F38, tightening stress 20.6 MPa〉 | |||||||
≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | |
Water/Antifreeze 1:1〈 | |||||||
Thickness increase （%） | 5 | 5 | 5 | 5 | 5 | 5 | |
Weight increase （%） | 10 | 10 | 5 | 5 | 5 | 5 | |
Sealability 〈φ46×φ67, thickness t 1.5, tightening stress 19.6 MPa, internal pressure 0.98 MPa, N2 gas〉 | |||||||
DIN 3535/6（cm3/min） | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 |
Dimensions | |||||||
Width × length〉（mm） | |||||||
〈Thickness〉（mm） | (0.5), 0.8, 1.0, 1.5, 2.0, 3.0, (4.0, 5.0) | ||||||
〈Color tone〉 | - | ||||||
Other colors may be required. With your logo on request. | |||||||
〈Package〉 | 10PCS. ,25PCS.,50PCS,100PCS ,250PCS | ||||||
Other packages may be required. | |||||||
