| Model: | AISG |
|---|---|
| Brand: | KP |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electric Parts & Materials |
| Label: | AISG connector , C091 connector , DIN 45326 connector |
| Price: |
¥38
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: |  | Last Online:27 Mar, 2024 |

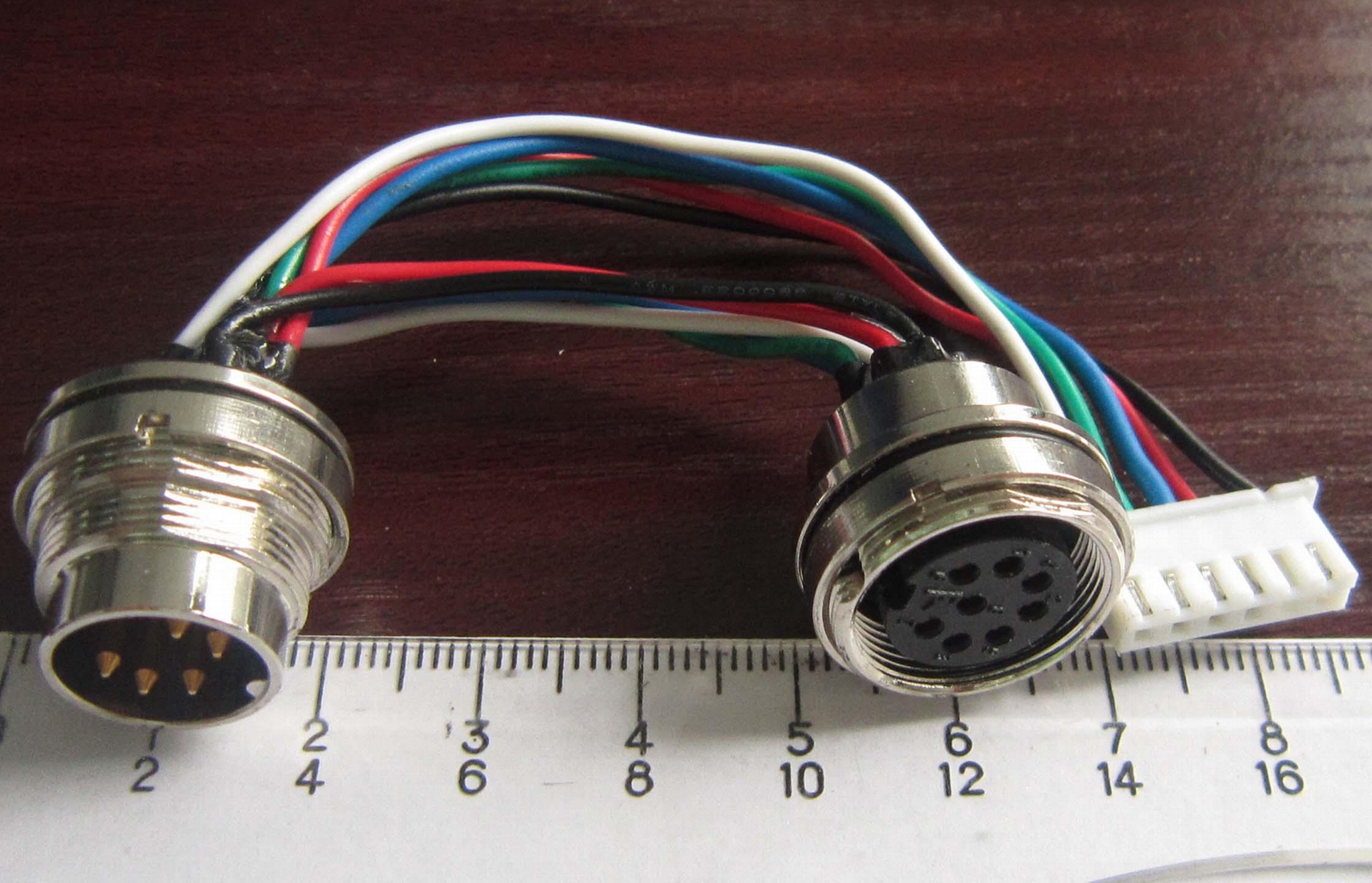

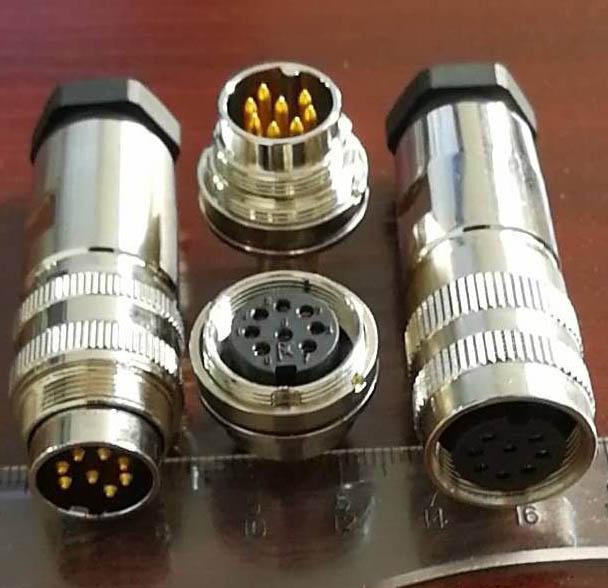

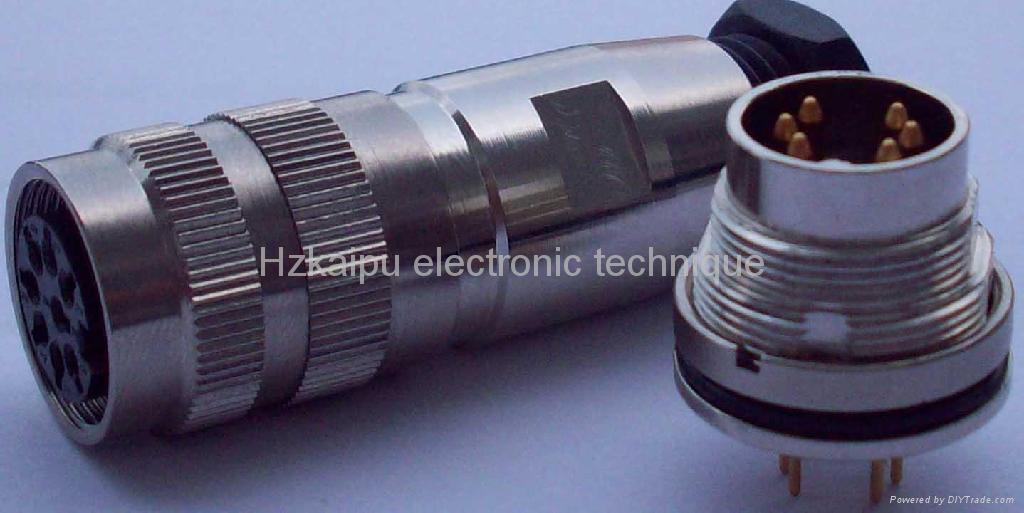

The connectors of series FS1 are available with 3-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder 423 series.Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.
Product Ordering
1 2 3 4 5
1.Name： FS1 type connector
2.Number of contacts： 3-8 pcs

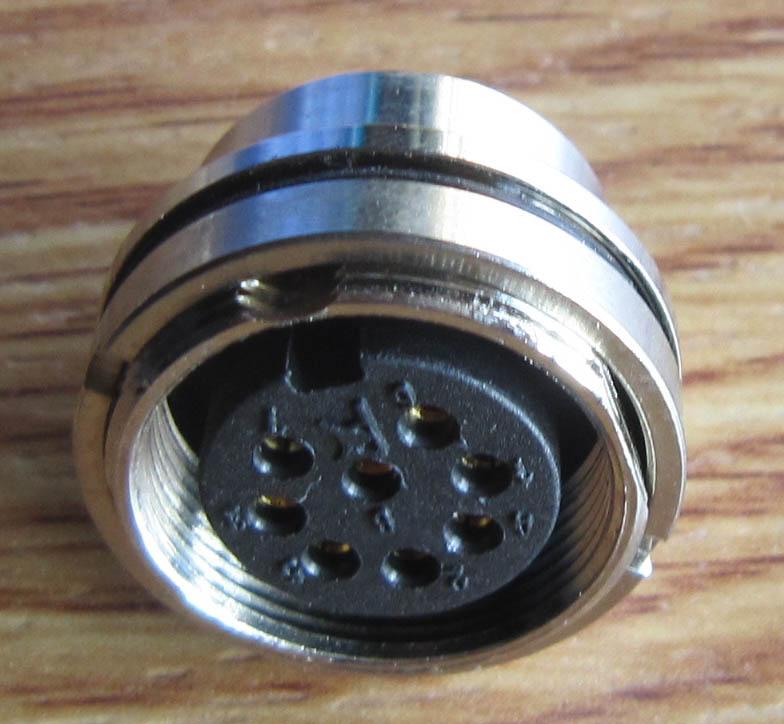

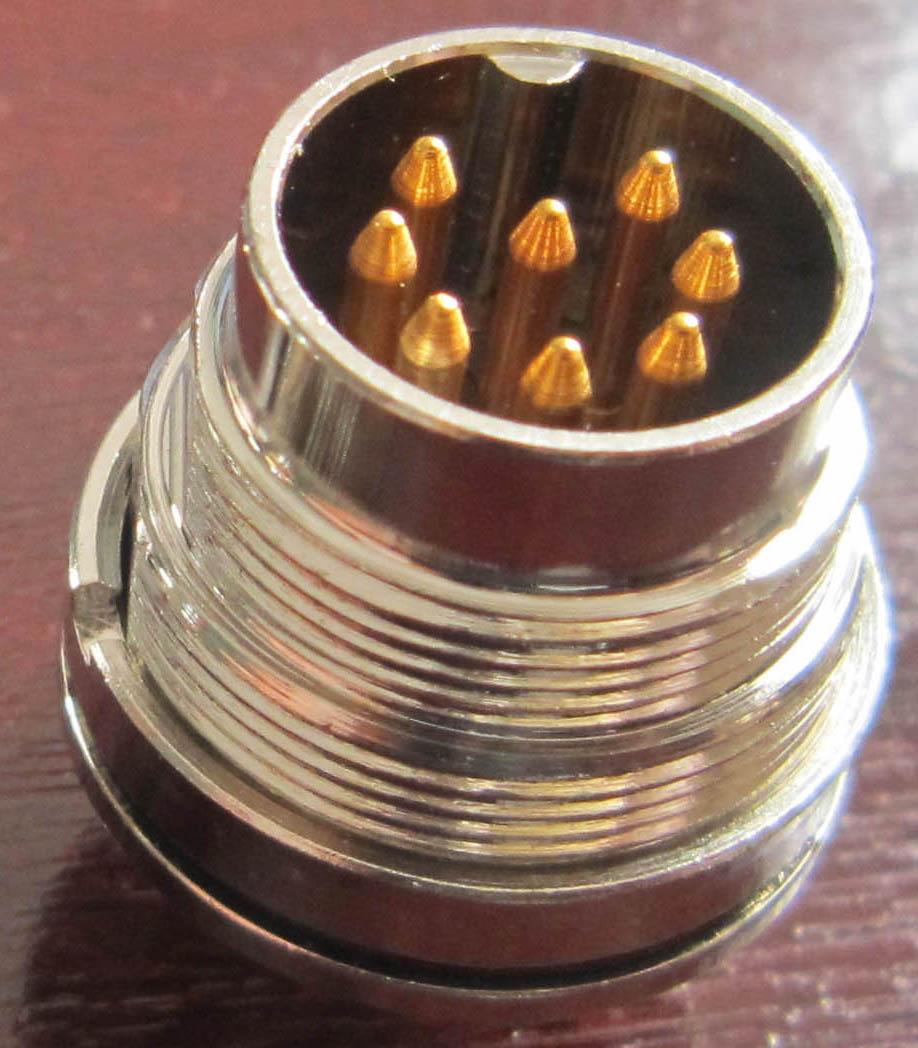

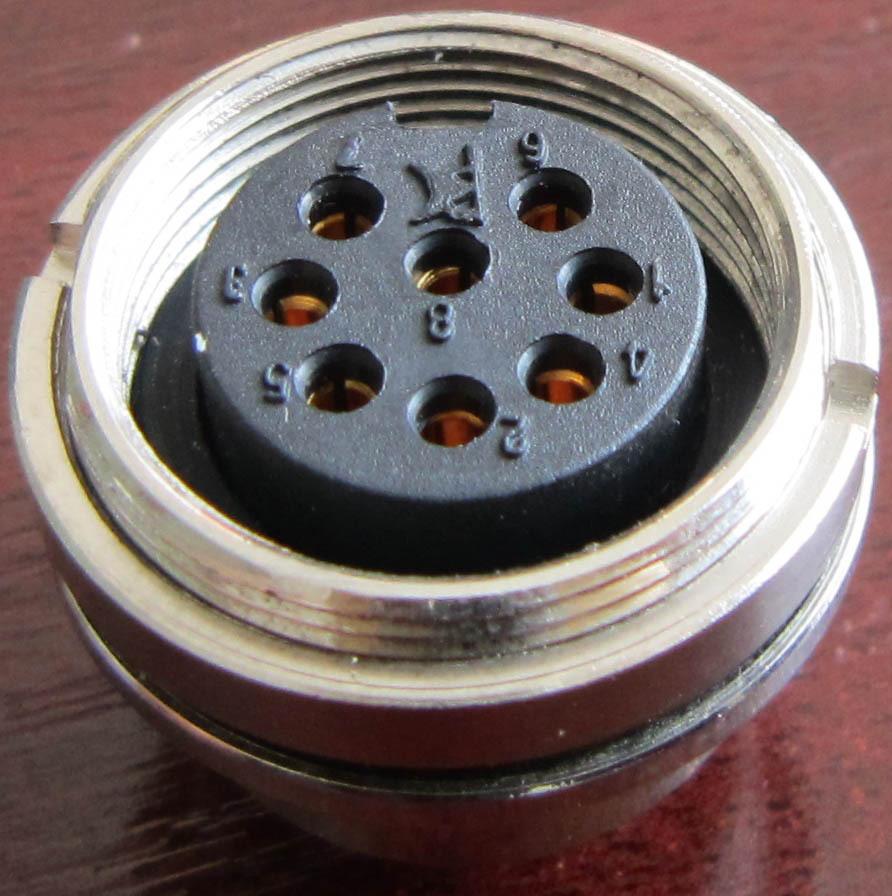

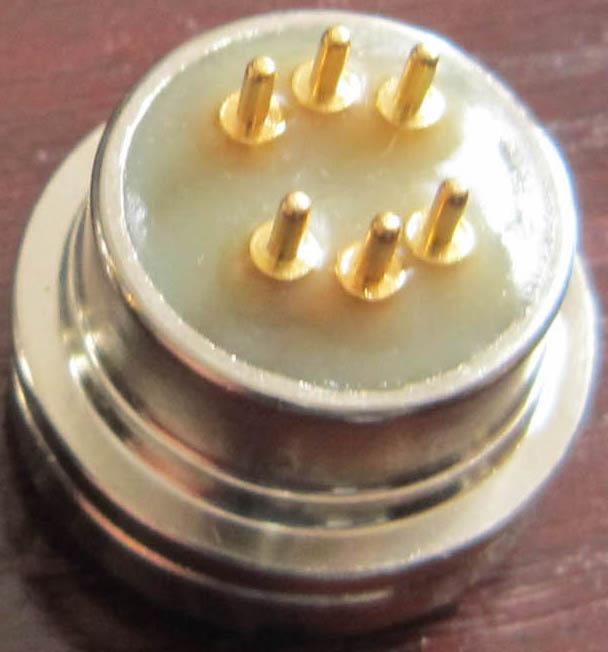

3.Connector type: T:Plug; Z:receptacle
4.Contacts type: J:pin; K:socket
5.Meet cable diameter: 6-9 mm
|
Temperature |
Relative humidity |
Vibration |
Shock |
Endurance |
|
-55°C~ +85°C |
90-95% at 40 Deg C |
10~1000Hz 196m/s² |
490m/s² |
1000 cycles |
|
Contact |
Current |
Voltage |
Contacts resistance |
|
1.5mm |
7 A |
250VAC |
≤3mΩ |
| Specifications: | Product Ordering FS1 6 T J - 8 1 2 3 4 5 1.Name： FS1 type connector 2.Number of contacts： 3-8 pcs 3.Connector type: T:Plug; Z:receptacle 4.Contacts type: J:pin; K:socket 5.Meet cable diameter: 6-9 mm |
|---|---|
| Advantages: | The connectors of series FS1 are available with 3-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder 423 series.Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.UL certificate:E308558. |
| Export Markets: | WORLD |
| Pricing: | RMB38 |
| Payment Details: | T/T |
| Min Order: | 100 |
| Ship Date: | 3 weeks |
| Standard Met: | DIN 45326,IEC60130 |
