| Model: | HY |
|---|---|
| Brand: | LASTONE |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Capacitor |
| Label: | capacitor , start capacitor , motor capacitor |
| Price: |
-
|
| Min. Order: | 1000 pc |
| Live Chat: |  | Last Online:26 May, 2021 |

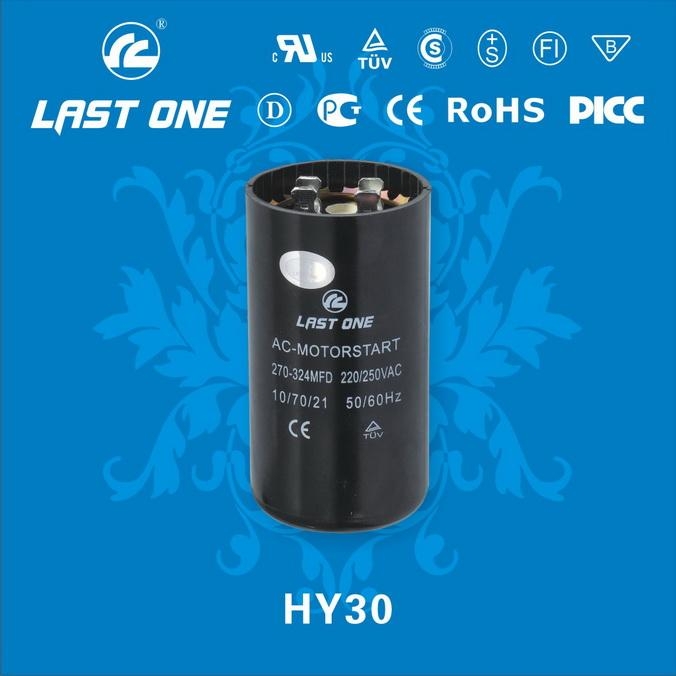

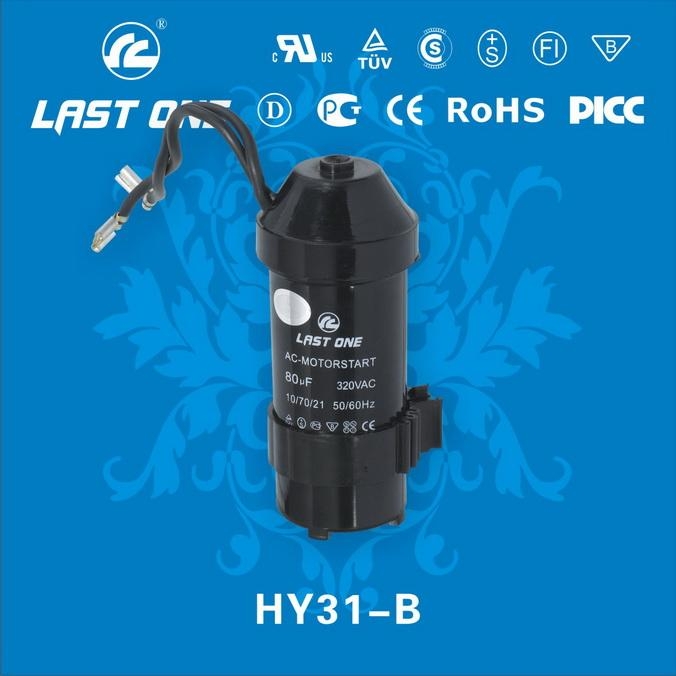

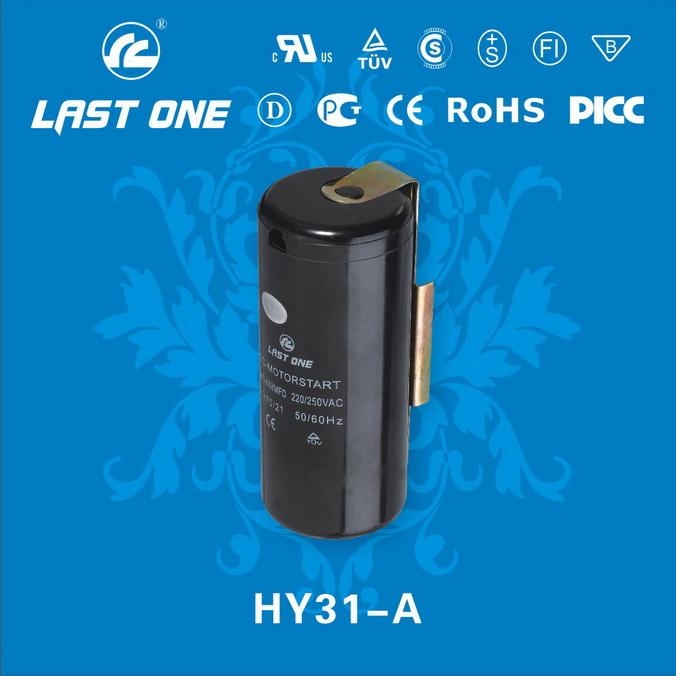

HY starting capacitor is a renewed product researched and developed according to
the ANSI/EIA463-A/B standard, and the case is founded and pressed with bakelite
and resin.
Features:
1) Rated voltage: 110 - 330V AC
2) Rated capacitance: 21 - 1,536uF
3) Working temperature: -40 ~ +65%deg;C
4) Tangent of loss angle (20°C, 100Hz): ≤0.10
5) Withstand voltage between terminals: 1.25 x Un for 2s
6) Withstand voltage between terminal and case: 200V AC for 1s
