Combine Woodworking Machine,ML393C-J-TG
Product Description
| Combine Woodworking Machine |
| Model |
ML393C-J-TG |
| 1.1 Round Saw |
|
| Blade dia.: |
305mm |
| Arbor speed: |
3500r/min |
| Arbor dia.: |
30mm |
| Max.Sawing thickness(with hood) at 90degree(250mm): |
65mm |
| (305mm): |
90mm |
| at 45degree(250mm): |
45mm |
| (305mm): |
65mm |
| Max.crosscutting width: |
1400mm |
| Motor power: |
2.2kw |
| |
|
| 1.2 Moulder |
|
| Arbor dia.: |
30mm |
| Useful height: |
85mm |
| Spindle speed: |
1750r/min or 3500r/min or 6700r/min |
| With moulder hood: Max. rotating dia.: |
180mm |
| With shaping hood: Max. rotating dia.: |
140mm |
| Motor power: |
2.2kw 220v(380v)50Hz |
| |
|
| 1.3 Scorer |
|
| Blade dia.: |
90 x 20 x 3mm |
| Rotating speed: |
7000r/min |
| |
|
| 1.4 Others |
|
| N.W./G.W.: |
252/320kg |
| Packing size: |
138x93x105cm, 172x35x24cm |

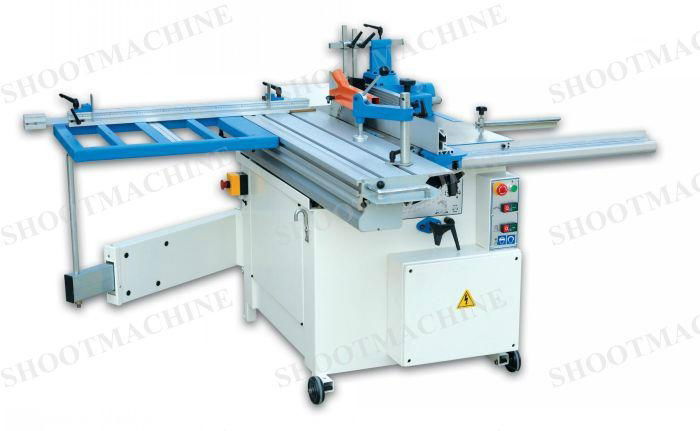

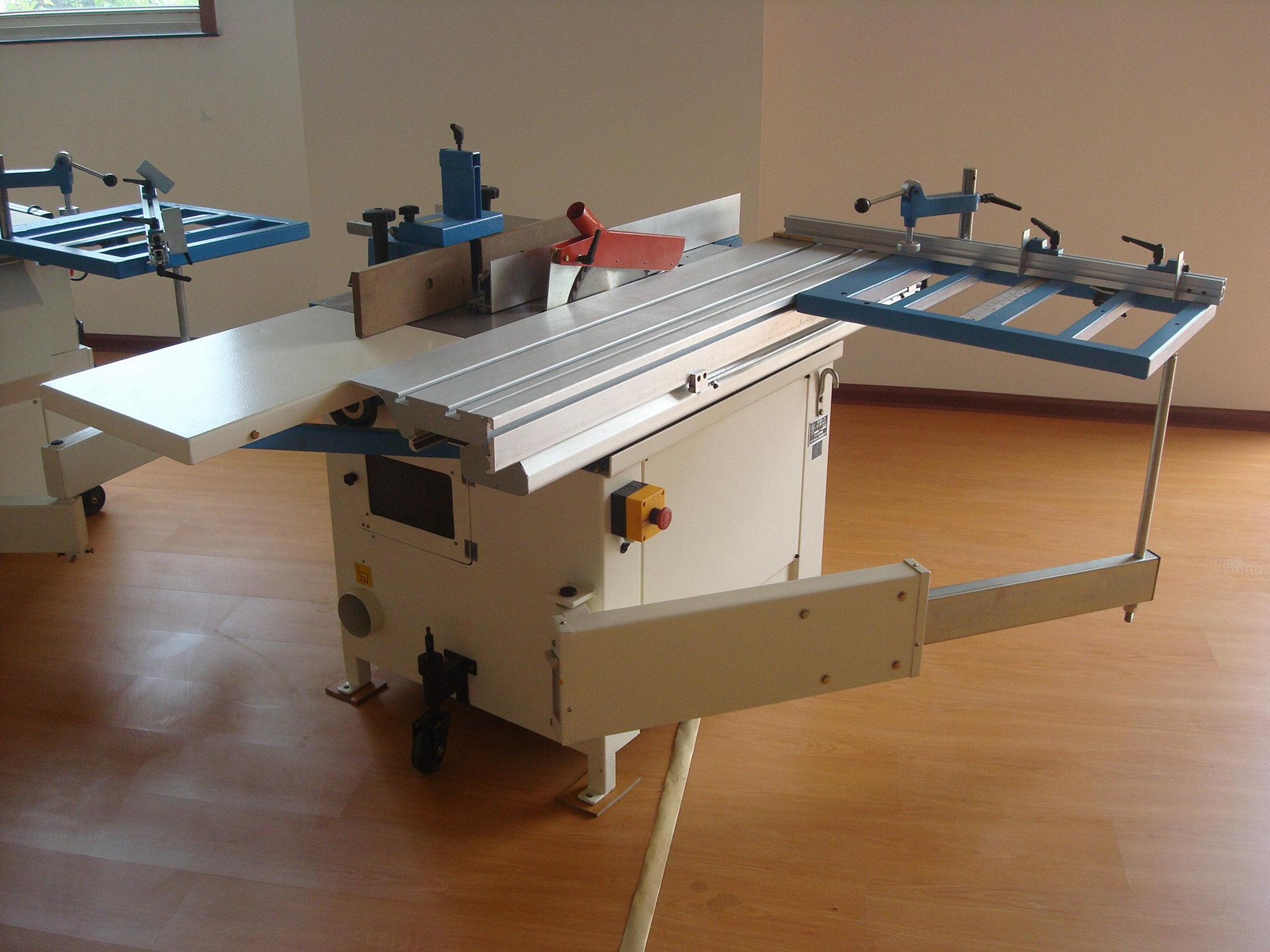

Product Image
