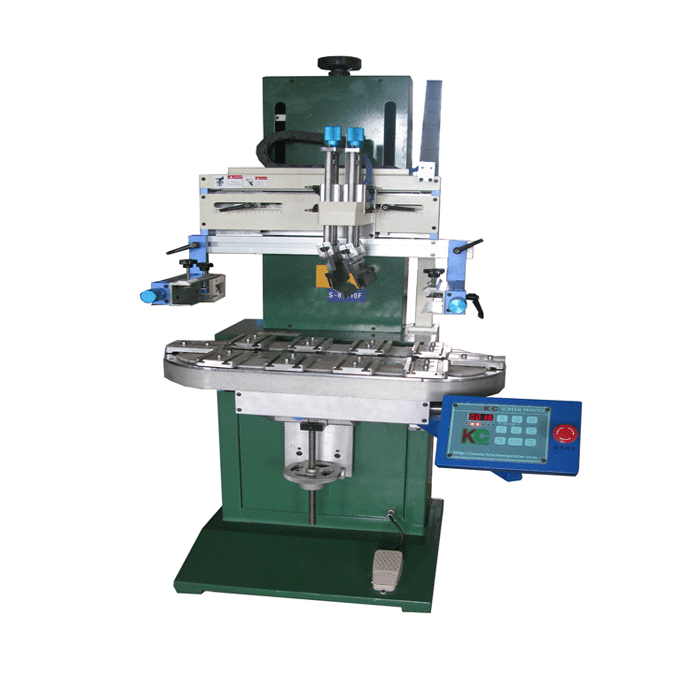

S-81110F Flat screen printing machine with conveyor //Structure

Working table

10-station conveyor working table

Actions

Up-down of screen plate

To be printed

• Round diameter:160mm;

Squeegee stroke

Adjust the Limited switch

Squeegee and screen plate control

 High precision guide shaft

S-81110F Flat screen printing machine with conveyor //Usage and characters

Guide

• Installed in the flat screen printing machine on the basis of a 10-station conveyors, one can fixture 10 products for printing,;
• Saving makeready times, improved work efficiency, suitable for flat small monochrome printing area less than 80mm × 110mmscreen printing;
• The structural design using the up and down movement of the screen plate type, conducive removed and placed;
• Horizontal cylinder design a stable, uniform squeegee pressure back to Mexico and flat, good print quality;
• Semi-automatic operation, the operator interface can be used;

Application

• Electrons,hardwares, autos, toys, gifts, Plastics, household appliances, artware, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Kitchen utensils, Hotel supplies, Computer, Mobile, ect, industrial field.

S-81110F Flat screen printing Machine with conveyor //Parameters

Technical parameters

• The max printing thickness: 200 MM;
• Air consumption: 75 Lit/Min;
• Outline size: 1080×850×1280MM;
• The max printing area : 80×110MM;
• Dimension of working table: 80mm×115mm;
• Max printing speed: 1800Pc/H；
• Max frame dimension: 550×250mm;
• Stroke of Squeegee: 250mm;
• Stroke of Table cylinder: 200mm;
• Number of working table: 10

Works supply

• 110V-220V Power supply；
• 5-7Barcompress air；

Package parameters

• Package dimension：910mm×900×1840mm
• Gross weight： 175KG
• CBM: 1.507

H.S.CODE

8443192190

Certificate

CE

S-81110F Flat screen printing Machine with conveyor //Advantage

Function

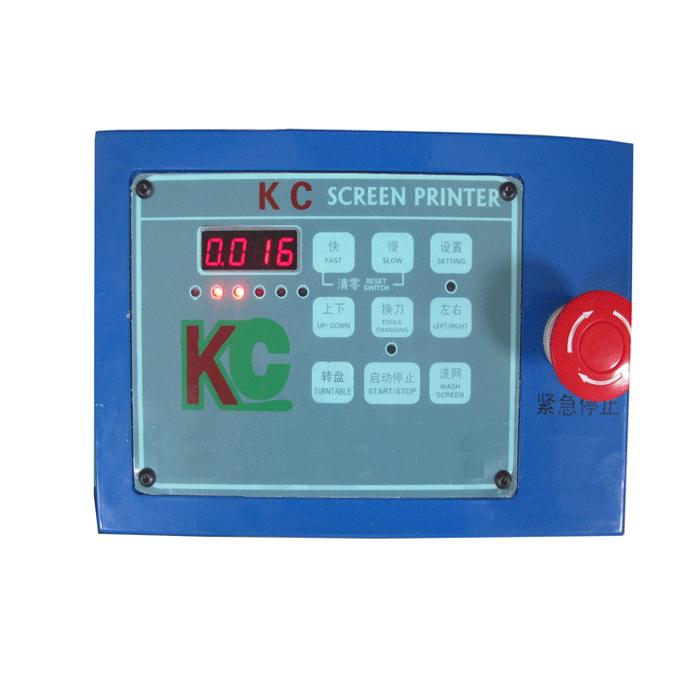

• Microcomputer monolithic program control operations, brand-name electrical and electronic components fitted.
• Screen lift, precision and smooth running.
• Automatically the line scraping oil back to the for mimeographed head movements function.
• Printing stroke and speed can be flexibly adjusted.
• Automatically balance the scraper technology.
• Before and after the screen frame and turn the trim function.
• Cast aluminum alloy beams, pneumatic lifting mode.
• Foot printing function;
• Scraper can set as stopping front or Back;
• 10 Products installed to improve production printing speed.
