THICKNESS 200UM-500UM
WIDTH 100mm-1500mm
LENGTH 30m-100m

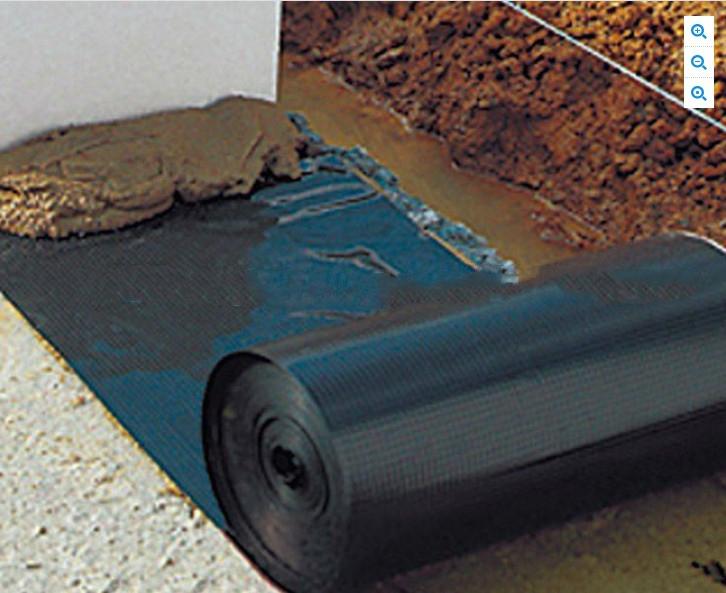

A damp proof course ( DPC ) is a physical barrier inserted into the fabric of a building to stop water passing from one place to another. This can be on a horizontal plane, stopping water rising up from the ground by being sucked up by the dry masonry above, or vertically to stop water passing from the outside of a building, though the masonry, to the inside. DPC's have taken many forms through the ages and one of the earliest forms was to use a layer of slate in the construction. Slate is still used but the less expensive plastic version ( below right ) is now more widely used.
Technical Specification of DPC
|
Water Vapour Permeability
|
0.28 gm2 day-1
|
BS3177
|
|
Water Vapour Transmission
|
733 MNsg-1
|
|
|
Water Absorption
|
0.22%
|
BS2782 : 430A
|
|
Resistance to Leakage at Joints
|
PASS
|
MOAT 27 : 5.2.1
|
|
Tensile Strength of Joint
|
UNAGED : 300 N
HEAT AGED : 290 N
WATER SOAK : 257 N
|
MOAT 27 : 5.2.2/3/4
|
|
Cold Flex Temperature
|
−60°C
|
BS2782 : 320A
|
|
Tensile Strength
|
L : 12.9 Nmm-2
T : 11.2 Nmm-2
|
BS2782 : 320A
|
|
Elongation at Break
|
L : 415%
T : 582%
|
BS2782 : 320A
|
|
Tear Strength
|
L : 122 Nmm-1
T : 96 Nmm-1
|
BBA Method
|
|
Low Temperature Flexibility
|
L : <−25
T : <−25
|
MOAT 27 : 5.4.2
|
|
Dimensional Stability
|
L : −2.0%
T : −0.3%
|
MOAT 27 : 5.1.6
|
|
Mortar Adhesion Test
|
PASS
|
Cream Method
|
