Juice & tea hot filling machine (RCGF18-18-6)

Model:RCGF18-18-6
Brand:-
Origin:Made In China
Category:Industrial Supplies / Food, Beverage & Cereal Machine
Label:Juice filler , hot bottling , juice bottling
Price: US $20000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Zhangjiagang Longway Machinery Co. Limited

Biz MemberJiang Su - China
Live Chat:
点击这里给我发消息Last Online:19 Dec, 2023

Product Description

This Juice Filling Machine with famous electrical components and Food stage SS ,high performance and quality 15monthes guarantee



RCGF Juice hot filling 3-in-1unit

Products Introduction Usage:
RCGF series of Juice hot filling 3-in-1unit is introduced advanced foreign technology such as washing, filling, capping technology. It is used in filling hot fruit juice, tea and other beverage, if you replace some parts, it can also be used in filling normal temperature filling.
Beverage Machinery-Equipment characteristics:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change of the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
7. Equipped with a constant temperature system, temperature controlled and circumfluenting automatically.
Beverage Machinery-Main technical parameters:

Technical Data

Model

RCGF14124

RCGFR18186

RCGFR24248

RCGFR32328

The number of Washing, Filling, Capping

14-12-4

18-18-6

24-24-8

32-32-8

Producing capacity:
The number of bottle(500ml)/hour

3000-4000

5000-7000

8000-12000

12000-15000

Applicable bottle specifications (mm)

H=170-320

Φ=50-100
(3301500ml)





Pressure ( MPa)

0.25-0.3

General power (kw)

1.5+0.37

2.2+0.37

3+0.45+0.25

4+0.45+0.25

Overall dimension (mm) (L×W×H)

2300×1680×2650

2500×1760×2650

3100×2100×2650

3800×2800×2650

Weight(kg)

2600

3500

4800

6500






Product Image

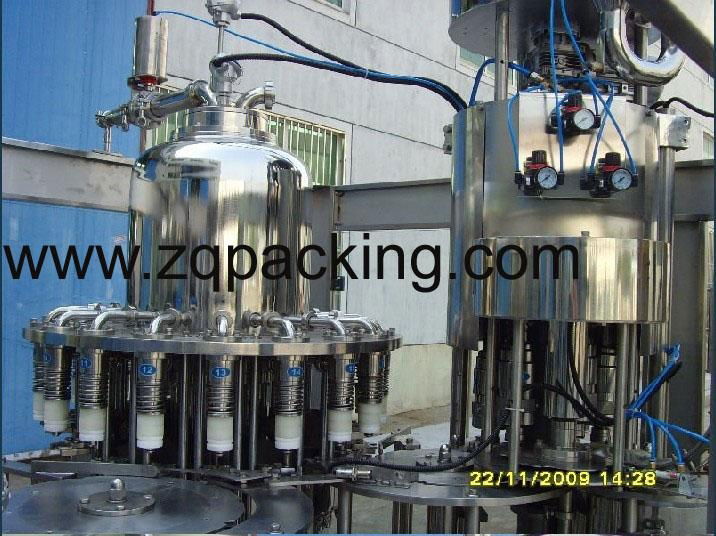

Juice & tea hot filling machine (RCGF18-18-6) 1
Img 1
Juice & tea hot filling machine (RCGF18-18-6) 2
Img 2
