Six Colour Closed ink Cup Pad Printer

Model:LC-SPM6-150/18T
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:ink CUP pad printer , electric pad printer , easy Pad Printer
Price: US $8500 / SET
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

Luen Cheong Printing Equipment Ltd

Biz MemberGuang Dong - China
Live Chat:
Last Online:23 Aug, 2023

Product Description

 Six color  Sealed Ink Cup Pad Printer with the latest nano-technology ink cup made of tungsten steel cutting ring,the ink cup 's  surface hardness up to HRC63 degree, with high wear resistance, can withstand nearly 300 milliontimes



the friction that this section of the machine oil tray machines than the traditional more environmentally and more fuel efficient.

    Six-color  pad  printing machine is equipped with a station's conveyor belt 18-22  working station wheel printing machine, has been continuous high-speed printing, significantly increased production efficiency ideal for large multi

color overlay order.



    For example, for a variety of printed materials: metal, glass, ceramics, plastics and so on. Printing area is



relatively small plane, and the irregular surface arc printing products, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts and so on.
















Function
1.Controlled by microprocessor,easy operation,running stably and accurately.
2.4-digit auto counter built-in.
3.Cast aluminum machine frame,low weight and high intensity,turnable machine head.
4.Separate adjustment of the pad up/down stroke speed.
5.Ink scraper is auto balance keeping in printing.
6.With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7.Ink cup is turnable and adjustable in vertical and horizontal direction.
8.Super long slide stroke to print large size workpiece.
9.Speed of every single pneumatic organ is adjustable


1.  Model  NO

LC-SPM6-150/18T
2.  printing Colors6
3.  Plate area100*250mm
4.  Sealed  ink cup:¢90 mm
5.  printing area80*135
6.  Conveying Stations jigs18
7.  Max  printing speed
1500PCS/H
8.  Power Supply220V/ 50HZ  110V/60HZ
9.  Air pressure4-6pa
10. dimension1300×1210×1420mm3

free  fiting
1.6 pcs  rubber pad
2.6 pcs  assembly jigs
3.6 pcs steel pad plate




Payment Terms --T/T or L/C
Packing-- Wooden case
Lead Time ---5 days after confirm deposit
SKU--- 10 sets
Standards Certificate--- CE
Main Parts FESTO MADE BY Germany



2 color bottle cap pad printing machine plasma
shoe two colors pad printing machine with shuttle
4color shuttle pad printing machine
Tampografica Pad Printing Machine
neck label pad printing machine
perfume bottle pad printing machine
tampo printing machine
pad printing machine pvc
shoe logo pad printing machine
led bulb pad printing machine
garment label pad printing machine
hard hat pad printing machine
super primex pad printing machine
ink cup pad printing machine
professional electronic single color printing pad
mini pad printing machine semi-automatic use
garment pad printing machine
pad printing machines for round applications
eraser pad printing machines
shoe pad printing machine
insole pad printing machine

Product Image

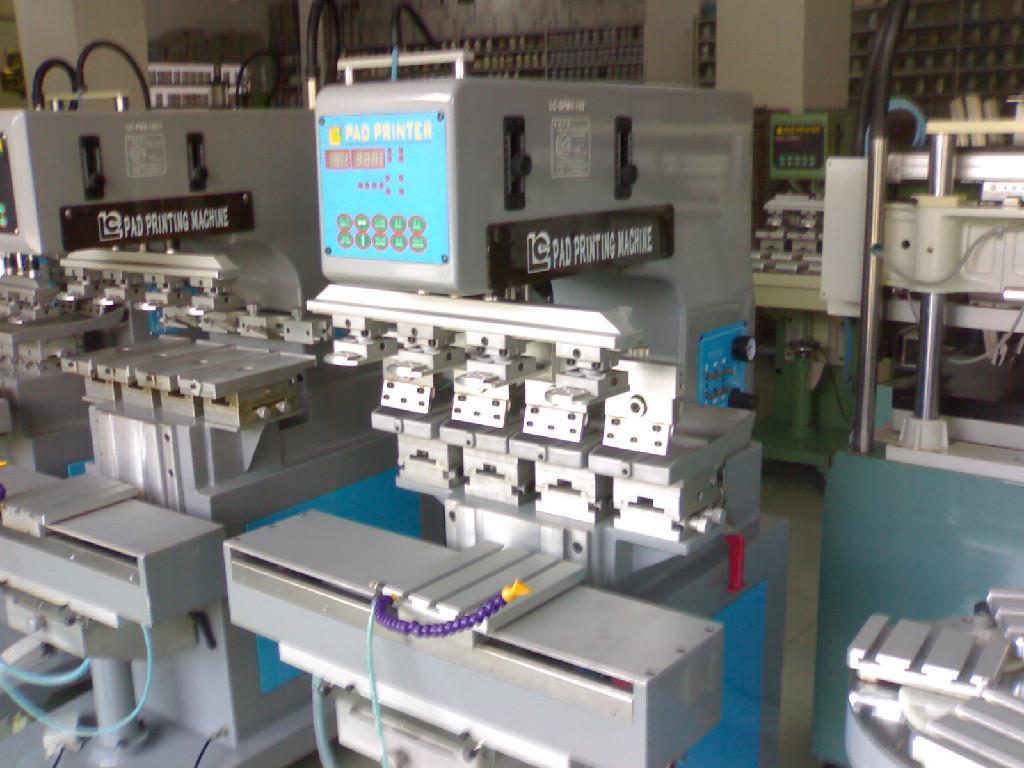

Six Colour  Closed ink Cup Pad Printer   1
