CNC 5 Axis Processing Center Machine (Wooden Door Any Type of Boards,SHF1132
Product Description
| CNC 5 Axis Multi-functional Processing Center Machine (Wooden Door and Any Type of Boards) |
| Main function : the machine can do horizontal, vertical, milled, routed drilling of boards, not specifically doors, it can any type of boards, maximum size 2400x1200 mm. |
| 1.Locking hole processing |
| 2.Hinge groove machining |
| 3.CNC router function |
| 4.Paint craft hole |
| 5.Milling door closer holes |
| 6.Milling grooves for floor spring slides |
| 7.Wooden door gauge square (Big saw and scoring saw) |
| 8.Wooden door gauge square |
| 9.Door cover plate door hinge groove processing |
| Feature |
| This machine integrated door lock machine and four -sided saw, horizontal, vertical, milled, routed drilling of boards complete function; |

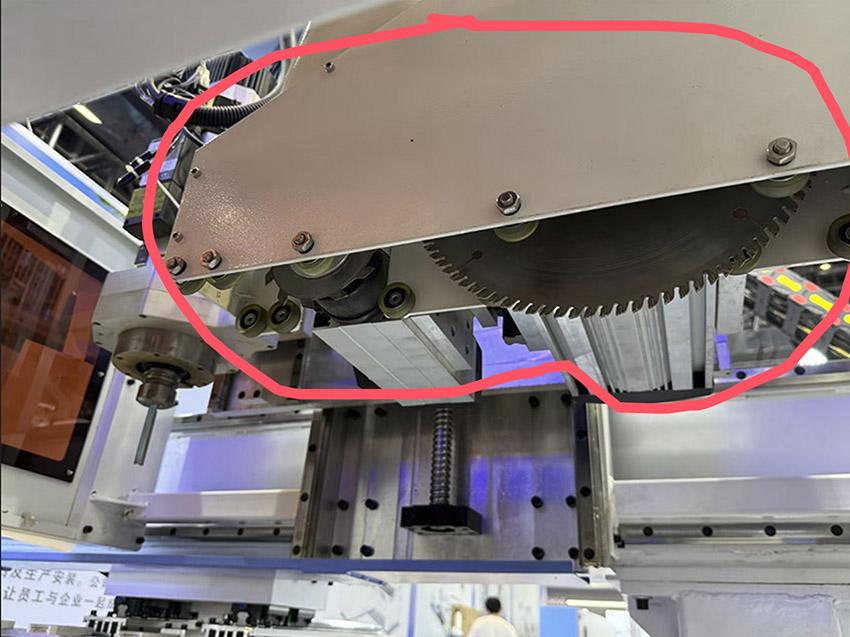

| The main and auxiliary saw design to ensure that there is no burrs and no collapse; |
| Can handle multiple types of door panels; |
| This machine can be added, left, right, front and back. |
| Model |
SHF1132 |
| Processing length |
1800-3200mm |
| Processing width |
500-1200mm |
| Processing thickness |
30-60mm |
| Main saw motor power |
9.0KW automatic tool changing vertical electric spindle with 90 ° angle head configuration |
| Main saw blade motor power |
7.5KW*1 |
| Main saw blade specitications |
30-305mm |
| Vice saw blade motor power |
1.5KW*1 |
| Vice saw blade specifications |
22-120mm |
| Machine weight |
4500kg |
| Dimensions |
4850*2900*2000mm |
| Look Machine Video,click the Youtube website: |
| https://youtu.be/7EllwHciKfk |
|

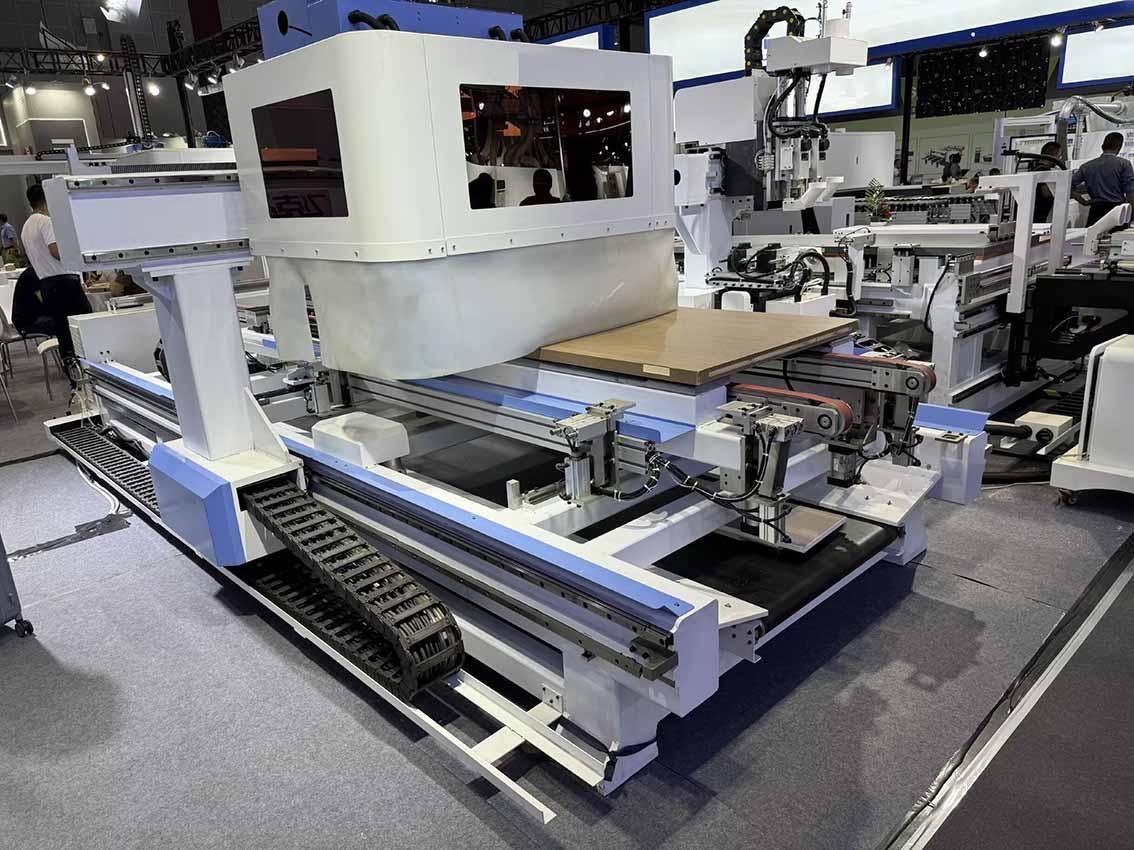

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
