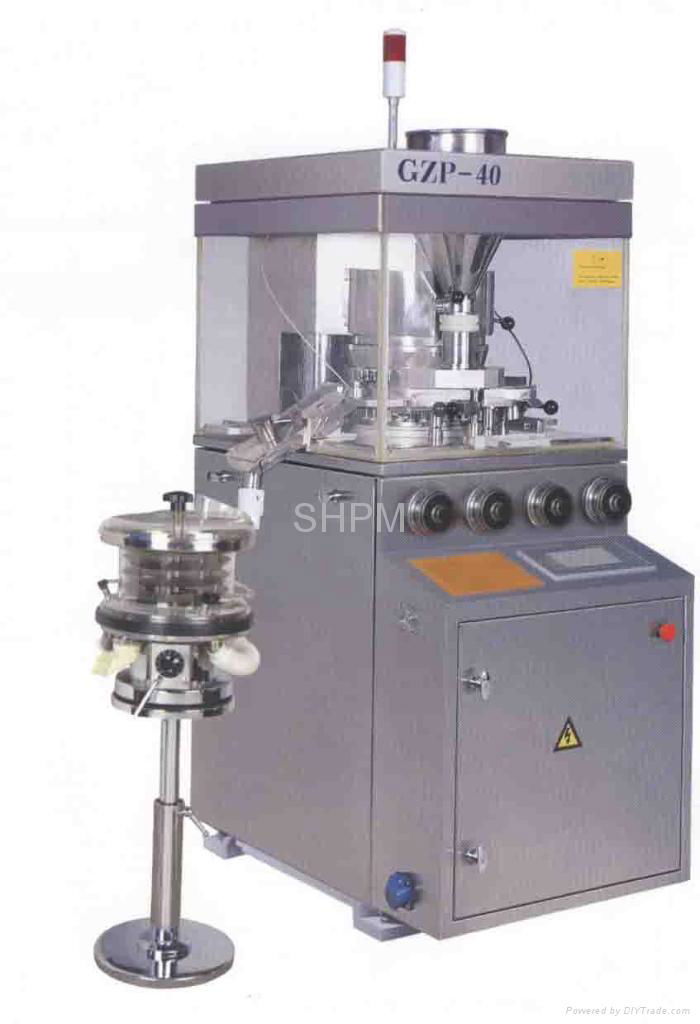

GZP26, 32, 40 Automatic High Speed Rotary Tablet Press
l Automatic compensation is used to control tablet weight to guarantee harmony between tablets.
l Multi-monitoring measures are taken to protect operator and machine, as well as to ensure tablet quality.
l The pressure of each punch is monitored and displayed at high speed, therefore single waste tablet rejecting is realized.

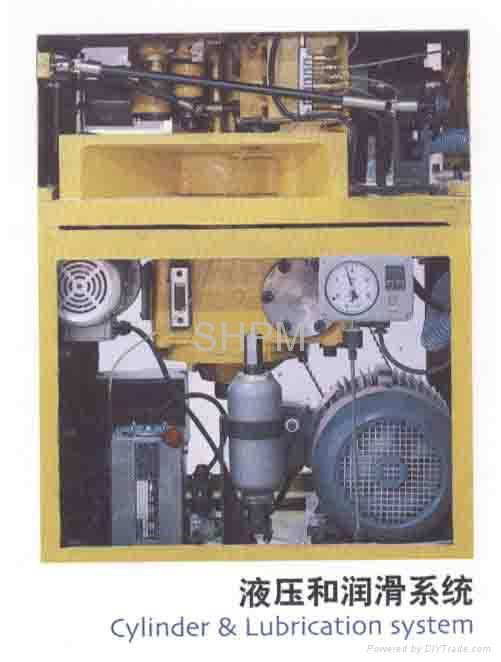

The pre-pressure, main pressure wheel is hold by the cylinder. If the pressure is over high, the cylinder system can buffer and protection.
Sole and table cylinder system can confirm the equipment’s lubrication requirements.
Main Technical Specifications:
Model | GZP26 | GZP32 | GZP40 |
Number of Station (set) | 26 | 32 | 40 |
Output (tablet/h) | 160000 | 210000 | 260000 |
Max Tablet Diameter (mm) | 25 | 16 | 13 |
Punch diameter(mm) | 38.1 | 30.182 | 24 |
Max Filling Depth (mm) | 20 | 20 | 16 |
Motor Power (kW) | 7.5 | 7.5 | 7.5 |
Main Pressure (NN) | 100 | 100 | 100 |
Prepressure (KN) | 16 | 16 | 16 |
Net weight(kg) | 1450 | 1450 | 1450 |
Overall dimension(mm) | 700*1000*1865 |
Website: www.sunhang.com; www.pharmpackage.com Email: shpm88@sunhang.com |
