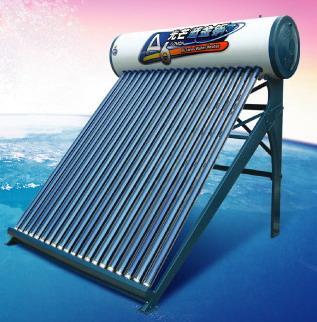

| Model: | QBJ1-A6 |
|---|---|
| Brand: | GOMON |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / New Energy / Solar Energy |
| Label: | solar water heater , solar collector , vacuum tube |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:01 Sep, 2011 |
| Model | QBJ1-115-1.91-0.05-A6 | QBJ1-130-2.18-0.05-A6 | QBJ1-145-2.45-0.05-A6 | QBJ1-160-2.74-0.05-A6 | QBJ1-190-3.26-0.05-A6 |
| Inner tank | Steel coated with porcelain, Thickness 1.50mm | ||||
| Outer tank | Color coated steel, Thickness 0.41mm | ||||
| Thermal insulation | Polyurethane foam, Thickness 60mm | ||||
| Supporting Stand | Color coated steel, Thickness1.50mm | ||||
| Vacuum Tube | Ø58-1800, 14 pcs | Ø58-1800, 16 pcs | Ø58-1800, 18 pcs | Ø58-1800, 20 pcs | Ø58-1800, 24 pcs |
| Capacity (Liter) | 115 | 130 | 145 | 160 | 190 |
| Aperture area (m2) | 1.91 | 3.18 | 2.45 | 2.74 | 3.26 |
| Working Pressure (MPa) | 0.05 | ||||
| Overall dimension (mm) | 1390 x 1668 x 1785 | 1550 x 1668 x 1785 | 1710 x 1668 x 1785 | 1870 x 1667 x 1785 | 2190 x 1668 x 1785 |
| specifications: | Model QBJ1-115-1.91-0.05-A6 QBJ1-130-2.18-0.05-A6 QBJ1-145-2.45-0.05-A6 QBJ1-160-2.74-0.05-A6 QBJ1-190-3.26-0.05-A6 1, Inner tank: Steel coated with Porcelain, Thickness 1.50mm 2, Outer tank:Color coated steel, Thickness 0.41mm 3, Thermal insulation:Polyurethane foam, Thickness 60mm 4, Supporting Stand:Color coated steel, Thickness1.20mm 5, Vacuum Tube 58-1800: 14 pcs, 16pcs, 18pcs, 20pcs, 24pcs 6, Capacity (Liter): 115, 130, 145, 160, 190 7, Aperture area (m2): 1.91, 2.18, 2.45, 2.74, 3.26 8, Working Pressure (MPa): 0.05 |
|---|---|
| Export Markets: | Worldwide |
| Standard Met: | ISO9001 |
