Product Description



RamdounPURE FRP Pressure Vessel Tank:
Ramdoun HK International Group Ltd, offer pressure vessel is made of high performance composite material with filament winding. All pressure vessels are 100% corrosion resistant. Various thermoplastic liners of polyester,
Features:



  • Made up of high performance composite material with filament wound. 100% corrosion resistant
  • Various thermoplastic liners of polyester, high strength polypro-pene, etc
  • Liner wall thickness available from 0.150”(3.8mm) up to 0.300”(7.6mm) corresponding to the
  • Vessel diameter
  • Full choice of pressure vessel available up to 36” diameter with 72” height
  • Top & Bottom openings available for 18” through 36” tanks
  • Operating Pressure 150 psi(10.5 kgf/cm2)
  • Operating Temperature 150F(65℃)
  • Low installation and maintenance
Model
Size
Size(mm)
Top Openings
Bottom Opening
Base
TK-0635
6×35
Ф150×890
2.5”-BNPSM
N/A
Standard
TK-0647
6×47
Ф150×200
2.5”-BNPSM
N/A
Standard
TK-0817
8×17
Ф200×435
2.5”-BNPSM
N/A
Standard
TK-0824
8×24
Ф200×600
2.5”-BNPSM
N/A
Standard
TK-0835
8×35
Ф200×890
2.5”-BNPSM
N/A
Standard
TK-0844
8×44
Ф200×1200
2.5”-BNPSM
N/A
Standard
TK-1035
10×35
Ф250×890
2.5”-BNPSM
N/A
Standard
TK-1044
10×44
Ф250×1200
2.5”-BNPSM
N/A
Standard
TK-1054
10×54
Ф250×1400
2.5”-BNPSM
N/A
Standard
TK-1252
12×52
Ф300×1320
2.5”-BNPSM
N/A
Standard
TK-1263
12×63
Ф300×1610
2.5”-BNPSM
N/A
Standard
TK-1268
12×68
Ф300×1730
2.5”-BNPSM
N/A
Standard
TK-1454
14×54
Ф350×1380
2.5”-BNPSM
N/A
Standard
TK-1463
14×63
Ф350×1610
2.5”-BNPSM
N/A
Standard
TK-1468
14×68
Ф350×1730
2.5”-BNPSM
N/A
Standard
TK-1663
16×63
Ф400×1610
2.5”-BNPSM
N/A
Standard
Ф400×1610
4”-BUN
N/A
Standard
TK-1665
16×65
Ф400×1730
2.5”-BNPSM
N/A
Standard
TK-1675
16×75
Ф400×1900
4”-BUN
N/A
Standard
TK-1865
18×65
Ф400×1650
4”-BUN
N/A
Standard
TK-2069
20×69
Ф500×1750
4”-BUN
N/A
Standard
Ф500×1750
4”-BUN
4”-BUN
Tripod
TK-2087
20×87
Ф500×2200
4”-BUN
4”-BUN
Tripod
TK-2472
24×72
Ф600×1850
4”-BUN
N/A
Standard
4”-BUN
4”-BUN
Tripod
TK-2477
24×77
Ф600×1950
4”-BUN
N/A
Standard
TK-2487
24×87
Ф600×2200
4”-BUN
6”-BUN
Tripod
TK-3072
30×72
Ф750×1850
6”-BUN
N/A
Standard
4”-BUN
6”-BUN
Tripod
TK-3077
30×77
Ф750×1950
6”-BUN
N/A
Standard
TK-3087
30×87
Ф750×2200
4”-BUN
6”-BUN
Tripod
TK-3672
36×72
Ф900×1850
6”-BUN
N/A
Standard
TK-3694
36×94
Ф900×2400
4”-BUN
4”-BUN
Tripod
6”-BUN
N/A
Standard
6”-BUN
6”Flange
Tripod
TK-4072
40×72
Ф1000×1850
6”Flange
6”Flange
Tripod
6”-BUN
N/A
Standard
4”-BUN
4”-BUN
Tripod
TK-4094
40×94
Ф1000×2400
6”Flange
6”Flange
Tripod
6”-BUN
N/A
Standard
6”Flange
6”-BUN
Tripod
TK-4872
48×72
Ф1200×1850
6”-BUN
N/A


Product Image

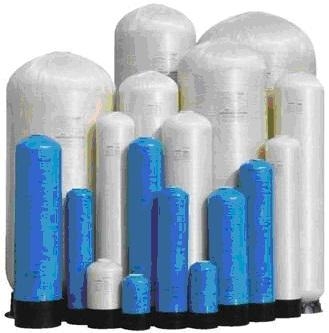

FRP Vessel Tank 1
