| Model: | JL5 |
|---|---|
| Brand: | KP |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Other Electrical & Electronic |
| Label: | connector , MIL-5015 , VG 95234 |
| Price: |
US $22.88
/ pc
|
| Min. Order: | 5 pc |
| Live Chat: |  | Last Online:27 Mar, 2024 |
1 2 3 4 5
1. Name of series: JL5
2. Number of contacts: 3, 4,5,7,12,14,19
3. T—plug,Z—receptacle
4. J—pin,K—socket
5. B—flange mouting, L—cable connector
Temperature | Relative humidity | Atmosphere | Vibration | Shock |
-55°C~+125°C | (90~95)% at40+2°C | 101KPa~6.7Pa | 5~2000Hz,294m/s² | 40~80strokes/min 980m/s² |
Current | Voltage | Contact resistance | Endurance |
(Φ1.6mm)10A | 500V | ≤5mΩ | 500cycles |
(Φ2.4mm)25A | ≤2.5mΩ | 500cycles |
Environment | Voltage proof | Insulation resistance |
2000V | ≥5000MΩ | |
High temperature | 1000V | ≥500MΩ |
Moisture | 500V | ≥20MΩ |
Low pressure | 200V | - |

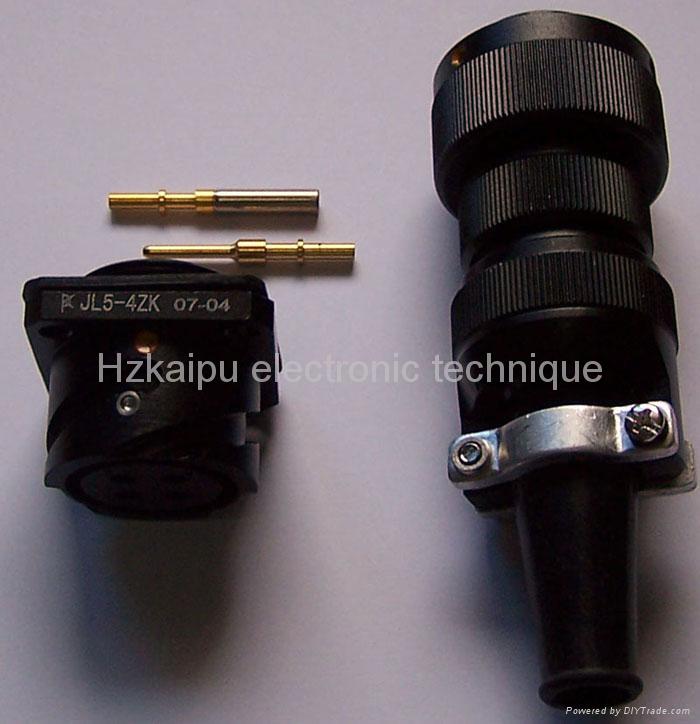

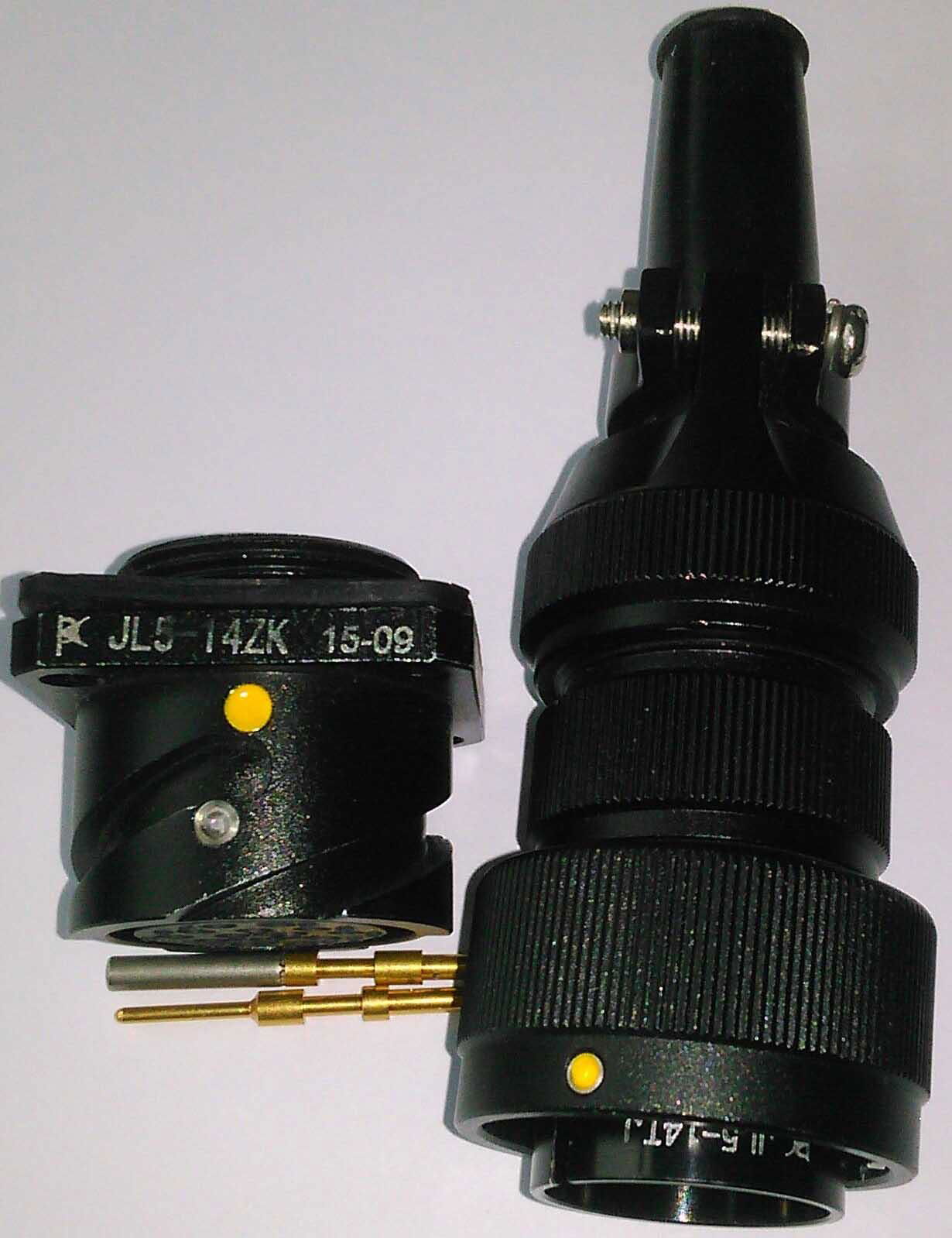

| Specifications: | JL5 series connectors are made according to Ministry of railway standard TB/T2761.It can be interchanged with VG95234 connectors.meet the standard MIL-DTL-5015.The socket is covered with guided stainless sleeve and allows the connector to have the advantages of low contact resistance,long endurance,etc.The connection type between the plug and the receptacle is bayonet coupling with quick mating and easy use.They are widely used for the connection of electrical equipment of rail train.The plug or the receptacle may be mounted with both pins and sockets. Product Ordering JL5 --- 7 T J B 1 2 3 4 5 1. Name of series: JL5 2. Number of contacts: 3, 4,5,7,12,14,19 3. T-plug,Z-receptacle 4. J-pin,K-socket 5.B-flange mouting, L-cable connector |
|---|---|
| Advantages: | JL5 series connectors are made according to Ministry of railway standard TB/T2761.It can be interchanged with VG95234 connectors.meet the standard MIL-DTL-5015.The socket is covered with guided stainless sleeve and allows the connector to have the advantages of low contact resistance,long endurance,etc.The connection type between the plug and the receptacle is bayonet coupling with quick mating and easy use.They are widely used for the connection of electrical equipment of rail train.The plug or the receptacle may be mounted with both pins and sockets. |
| Export Markets: | world |
| Pricing: | 22.88 |
| Payment Details: | T/T |
| Min Order: | 5 |
| Ship Date: | 21 days |
| Standard Met: | MIL-DTL-5015 |
