| Model: | 15 20 25 |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Industrial Supplies / Machine Hardware / Valves |
| Label: | General electromagne |
| Price: |
-
|
| Min. Order: | 100 pc |
| Live Chat: |  | Last Online:24 Jan, 2024 |

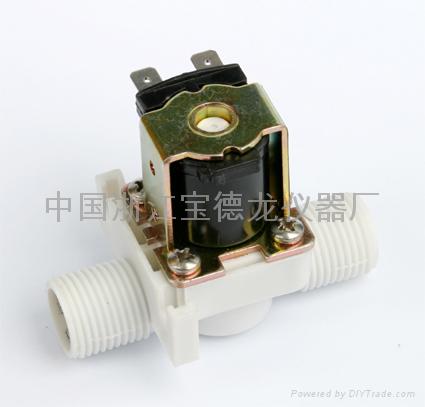

| Advantages: | FD-05 Synthesize , general state Application in automatic control system: sun energy automatic last water, induction clean of infrared ray and shower ware etc. switch control, should become 180 into water end with effluent port ° angle, name straight line guard the gate or the valve of straight line. Specifications parameter Specified voltage DC12V ( customize 6 V-220 V scopes according to user deliver the voltage of direct current source) Coil resistance 37 Ω±0.25 Ω( 20 ℃ ) Switch type Ⅰ; deliver the continued type of direct current Ⅱ; the pulse type of direct current Actuating pressure Ⅰ; 0-0.02 Mpa( have no press valve) Ⅱ; 0.02 Mpa-0.8 Mpas Medium temperature 1 ℃ - 75 ℃ Respond time to boil, ≤ 0.15 s barriers ≤ 0.3 ses Between electrical strength conductor and non conductor, should bear AC2500V voltage, 1 min not breakdown with produce fly arc etc. phenomenon The insulation resistance between the non conductor and conductor of insulation property is larger than 100 Ms Ω The 0.02 property Mpas of rate of flow ≥ the 3 1 Mpas of L/min0. ≥ the 12 8 Mpas of L/min0. ≥ 35 L/mins Service life ≥ five-hundreds thousands Pipe interface size FD-05 model water inlet and effluent mouth is 1 /s 2 inches outside thread( 4 is put in charge of interface) FD-06 model water inlet for 3 /s besides 4 inches thread, effluent mouth is 1 /s 2 inches outside thread FD-07 model water inlet and effluent article is 3 /s 4 inches outside thread( 6 is put in charge of interface) FD-06 install with FD-07 model appearance seek same FD-05 |
|---|---|
