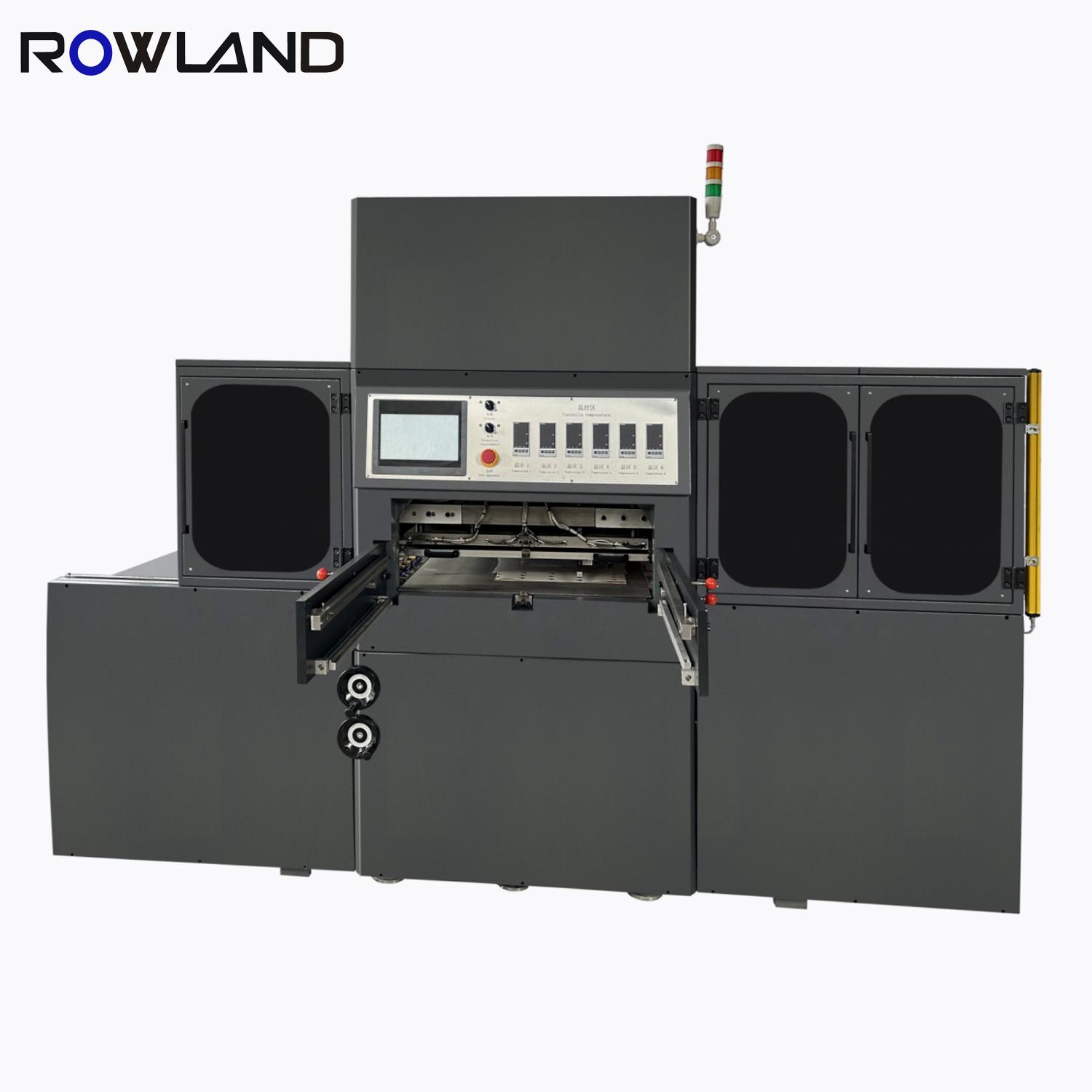

Automatic Continuous Hot Foil Stamping Machine

Automatic Continuous Hot Foil Stamping Machine 1

Automatic Continuous Hot Foil Stamping Machine 2

Automatic Continuous Hot Foil Stamping Machine 3

Model:	CR-1050
Brand:	Rowland
Origin:	-
Category:	Industrial Supplies / Packaging Related Machine
Label:	Hot foil stamper , Hot foil stamping , Stamping Pressing
Price:	-
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

ROWLAND INTERNATIONAL (YANTAI) CO., LTD

Free MemberShan Dong - China

Live Chat:

Last Online:27 May, 2024

Product Description

The hot foil stamper is with two shafts longitudinal foils. lt's suitable for the paper, cardboard material hot foistamping with auto feeding, hot foil stamping and auto delivery.
This machine is suitable for hot stamping anodized aluminum on various paper products, all kinds of advanced fine printing, can be in this machine for concave and convex hot stamping, flat hot stamping, in order to get three-dimensional sense, exquisite and beautiful packaging, decoration products, paper feeding pressure servo control, easy and fast operation.
This machine has advantages such as precise calibration, wide application, high safety, simple operation and efficient production.

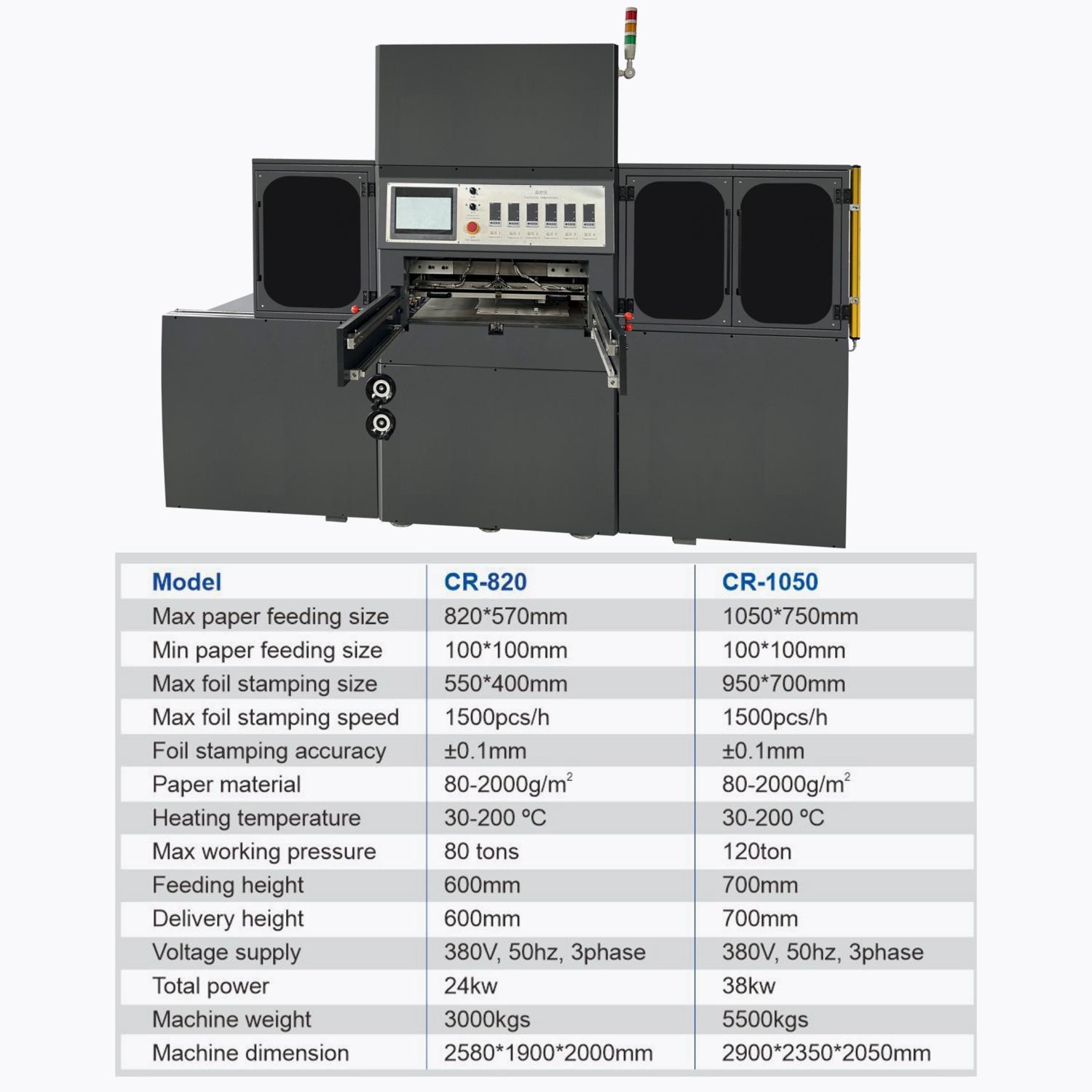

Model	CR-820	CR-1050
Max paper feeding size	820*570mm	1050*750mm
Min paper feeding size	100*100mm	100*100mm
Max foil stamping size	550*400mm	950*700mm
Max foil stamping speed	1500pcs/h	1500pcs/h
Foil stamping accuracy	±0.1mm	±0.1mm
Paper material	80-2000g/m²	80-2000g/m²
Heating temperature	30-200 ℃	30-200 ℃
Max working pressure	80 tons	120ton
Feeding height	600mm	700mm
Delivery height	600mm	700mm
Voltage supply	380V,50hz,3phase	380V,50hz,3phase
Total power	24kw	38kw
Machine weight	3000kgs	5500kgs
Machine dimension	258019002000mm	290023502050mm

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5
