| Model: | ESS-3.42MWh-G |
|---|---|
| Brand: | EVVA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Battery, Storage Battery & Charger |
| Label: | 3.42MWh DC-Block , Containerized ESS , 3.42MWh ESS |
| Price: |
-
|
| Min. Order: | 50 pc |
| Live Chat: |  | Last Online:20 May, 2024 |

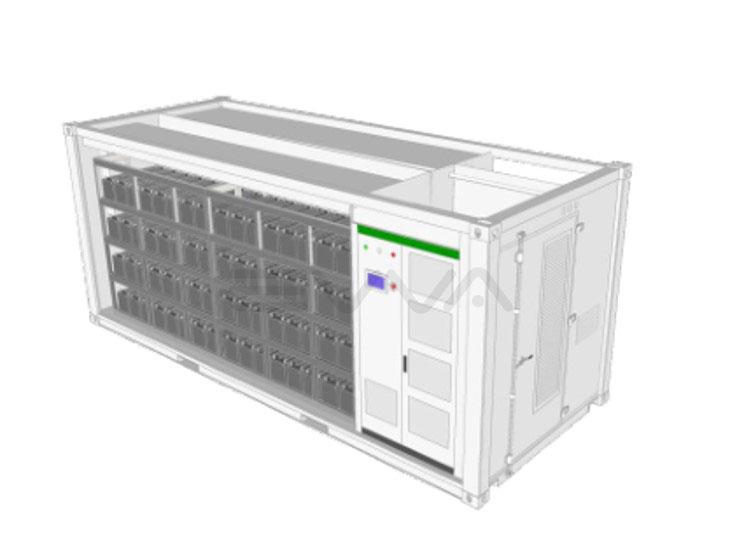

3.42MWh DC-Block Containerized Energy Storage System
|
No. |
Items |
Parameters |
Remarks |
|
1 |
Product Model |
EVVA-3.42MWH-G |
|
|
2 |
Cell type |
IFP81175200-300Ah |
|
|
3 |
Configuration |
9P396S |
|
|
4 |
Nominal Capacity (Ah) |
2700Ah |
|
|
5 |
Nominal energy (kWh) |
3.421MWh |
|
|
6 |
Nominal Voltage (V) |
1267.2V |
|
|
7 |
Nominal Charge/ Discharge Rate |
0.5P Max. |
|
|
8 |
Cooling Method |
Liquid-cooling |
|
|
9 |
Installation Environment |
Indoor |
|
|
10 |
NEMA/ IP Rating |
IP54 |
|
|
11 |
Allowed Storage Temperature Range (°C) |
-30 ~ +60 Ambient |
|
|
12 |
Allowed Storage Relative Humidity (condensing) |
0 ~ 95% |
Recommended for storage of spare packs. |
|
13 |
Dimension (W*D*H) |
6058*2438*2896mm |
20 ft container |
|
14 |
Weight (kg) |
About 37000kg |
|
