| Model: | ZP-27A |
|---|---|
| Brand: | NOAH |
| Origin: | Made In China |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | tablet press , pharmaceutical |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:23 Apr, 2024 |
Basic Info.
Model NO.
ZP-27A
Customized
Non-Customized
Condition
New
Warranty
1 Year
Transport Package
Plywood Case
Specification
1240*980*1850mm
Trademark
NOAH
Origin
China
Production Capacity
500sets/Year
Product Description

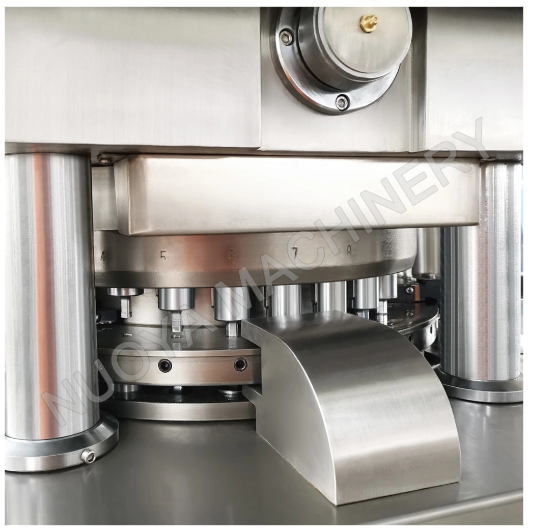

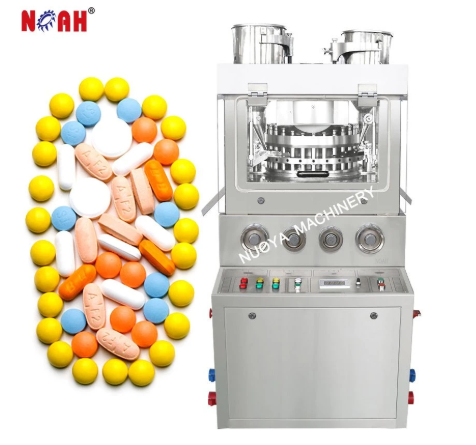

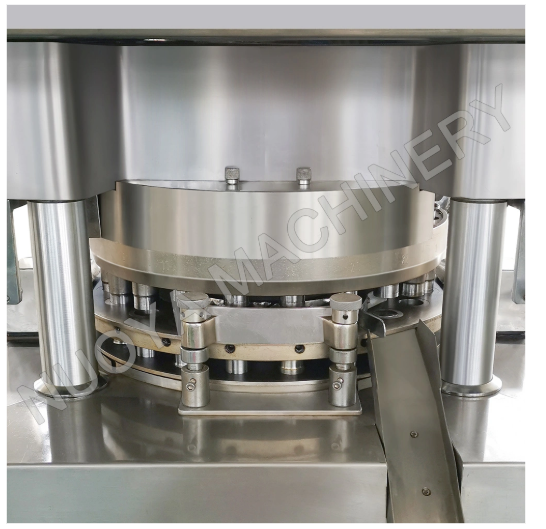

Zp-27A Salt Rotary Tablet Pressing Machine
Application:
The Zp-27A Salt Rotary Tablet Pressing Machine is double press type, continuous automatic tablet press machine, It is designed to press large and thick tablet . It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Characteristic:
1.The outside of machine is fully-enclosed and made of stainless steel.The turret is disposed to prevent cross pollution.
2.It has transparent windows and processing can be observed clearly.The windows can be opened . It is easy to clean and maintain.
3.All the controllers and the operation unit is located reasonably.
4.The turret speed can be adjusted .
5.One overload protection unit is installed to avoid damage of punches and other parts. When overload occurs , the machine stops automatically.
Technical Parameters:
| ITEM | TYPE | |
| ZP27A(Big Tablet) | ZP27B(Thick Tablet) | |
| Dies | 27 | 27 |
| Max . pressure | 100Kn | 100Kn |
| Max. Diameter of Tablet | 25mm | 30mm |
| Max.Depth of filling | 18mm | 29mm |
| Max.Thickness of tablet | 8mm | 14mm |
| Max production | 80000pcs/h | 60000pcs/h |
| Motor | 7.5kw 380v/50v/Hz | 11kw 380v/50v/Hz |
| Overall size(mm) | 1240*980*1850 | 1240*980*1850 |
| Net weight(kg) | 2050 | 2050 |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
|---|---|
