| Model: | MH-1 |
|---|---|
| Brand: | SHIBO |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Non-ferrous Metal Products |
| Label: | High strength , Long life service , oxidation resistance |
| Price: |
US $70
/ kg
|
| Min. Order: | 10 kg |
| Live Chat: | Last Online:26 Apr, 2024 |

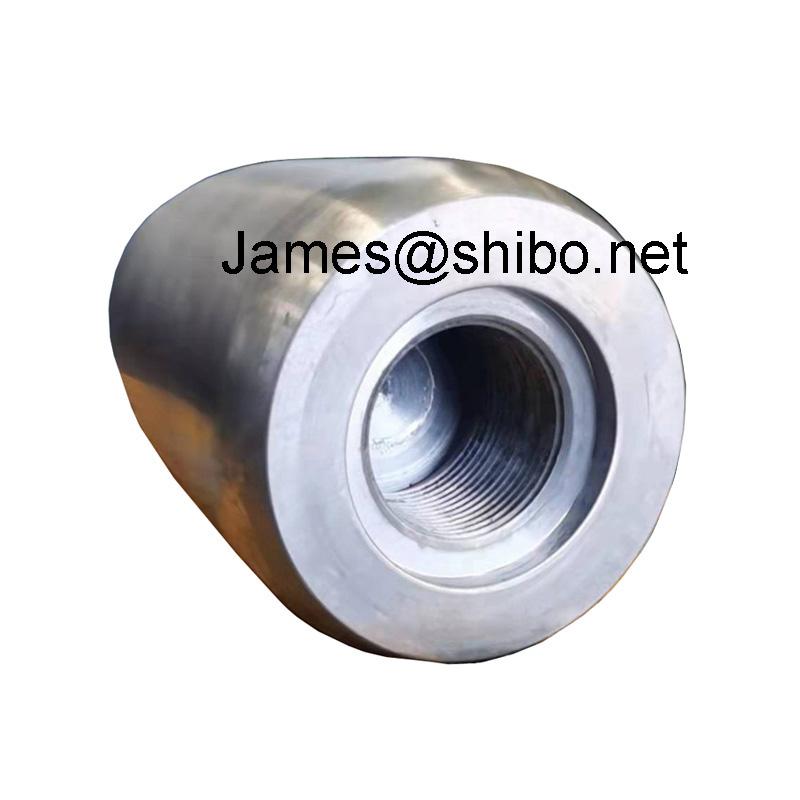

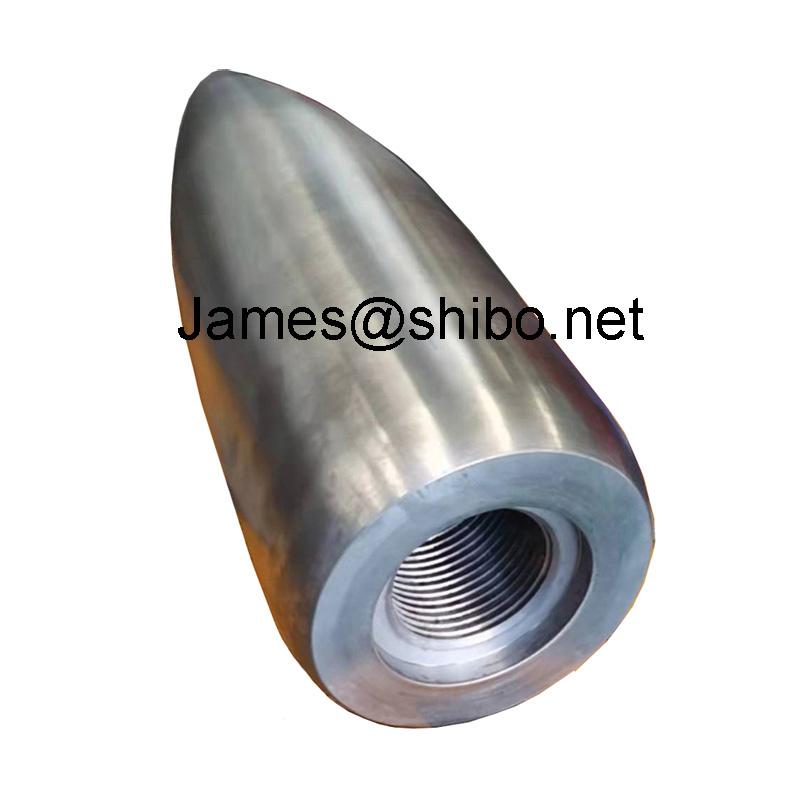

High density molybdenum Piercing Mandrels
The molybdenum ( TZM ) piercing mandrel is a critical component used for piercing seamless tubes of stainless, alloy steel and high-temperature alloy, etc. It is typically made of a molybdenum alloy (TZM alloy), which has excellent high-temperature strength and oxidation resistance. The high-temperature stability and corrosion resistance of molybdenum (TZM) piercing mandrels make them an essential component in the making seamless tubes process.
Density >9.8g/cm3 ( molybdenum alloy one, density>9.3g/cm3)
Table of Chemical composition (%), Table 1
Types and size range see Table 2
Table 1
|
Elements |
Content (%) |
|
|
Mo |
See Note |
|
|
Ti |
1.0 ˜ 2.0 |
|
|
Zr |
0.1 ˜ 2.0 |
|
|
C |
0.1 ˜ 0.5 |
|
|
Chemical elements / not more than |
Fe |
0.0060 |
|
|
Ni |
0.0030 |
|
|
Al |
0.0020 |
|
|
Si |
0.0030 |
|
|
Ca |
0.0020 |
|
|
Mg |
0.0020 |
|
|
P |
0.0010 |
Table 2
|
Diameter |
Tolerance of diameter |
Length |
Tolerance of length |
Semifinished type |
|
20-40mm |
0 to +2mm |
60-80mm |
0 to +3mm |
A type |
|
45-55mm |
0 to +2mm |
80-110mm |
0 to +3mm |
A type |
|
60-80mm |
0 to +3mm |
160-200mm |
0 to +4mm |
B type |
|
85-100mm |
0 to +4mm |
180-260mm |
0 to +5mm |
B type |
|
110-150mm |
0 to +5mm |
200-300mm |
0 to +6mm |
B type |
|
160-250mm |
0 to +6mm |
280-350mm |
0 to +8mm |
B type |
