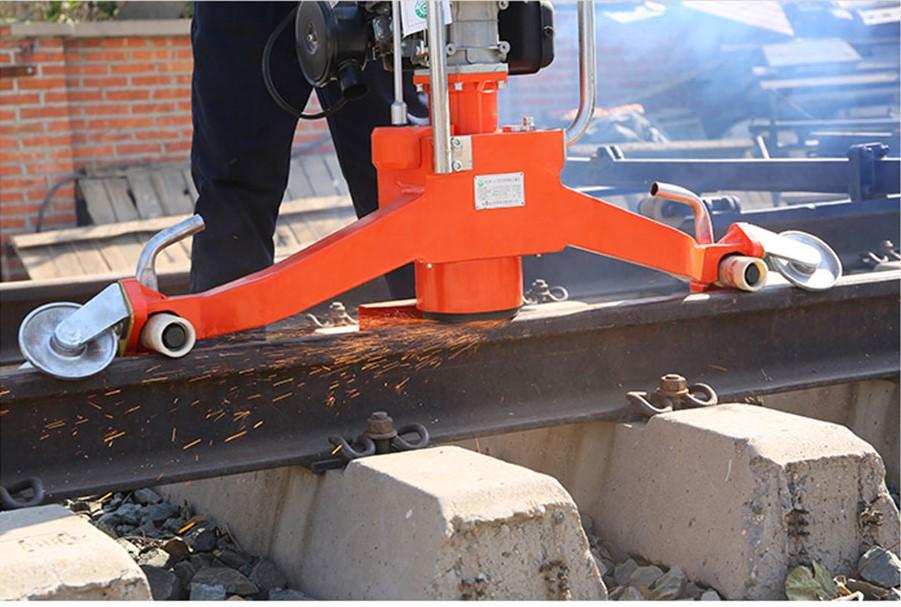

NGM-6.0 Rail profile grinder is powered by the M165 two-stroke petrol engine imported from Spain. It is a small machine used for forming and grinding the rail head welding joints and surface repairs. It is suitable for rails of 43~75kg/m. The special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.
TECHNICAL DATA
|
Engine |
2 stroke petrol engine M165 |
|
Power |
6.0kW |
|
Grinding stone speed |
≥3900r/min |
|
Grinding stone inclination |
0~90° |
|
Grinding stone feeding stroke |
42mm |
|
Grinding stone specification |
φ150xφ55x70mm |
|
Fuel tank volume |
4.5L |
|
Profile wheel span |
1000mm |
|
Feed adjustment accuracy |
0.125mm |
|
Dimensions |
1410x500x850mm |
|
Weight |
60kg |
M165 two-stroke petrol engine imported from Spain;Special diaphragm carburetor;Stable output torque ;Easy operate
