| Model: | VMC220 |
|---|---|
| Brand: | XENDOLL |
| Origin: | Made In China |
| Category: | Office Supplies / Education Appliances |
| Label: | mini desk top cnc , benchtop cnc vmc , small cnc training |
| Price: |
US $1
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:10 Jul, 2020 |
Specification (Technical parameter)
|
Processing range |
X axis stroke X |
mm |
220 |
|
|
Y axis stroke Y |
mm |
120 |
||
|
Z axis stroke |
mm |
200 |
||
|
Max. drilling/milling capacity
|
mm |
13 |
||
|
milling capacity cutter head(max.)
|
mm |
13 |
||
|
Max. end milling capacity
|
mm |
13 |
||
|
Spindle to table |
mm |
70-200 |
||
|
spindle to column |
mm |
180 |
||
|
Worktable |
Worktable |
mm |
400x140 |
|
|
Max loading capacity |
kg |
30 |
||
|
T-slot (width*slot number*spacing) |
mm |
3-14-63 |
||
|

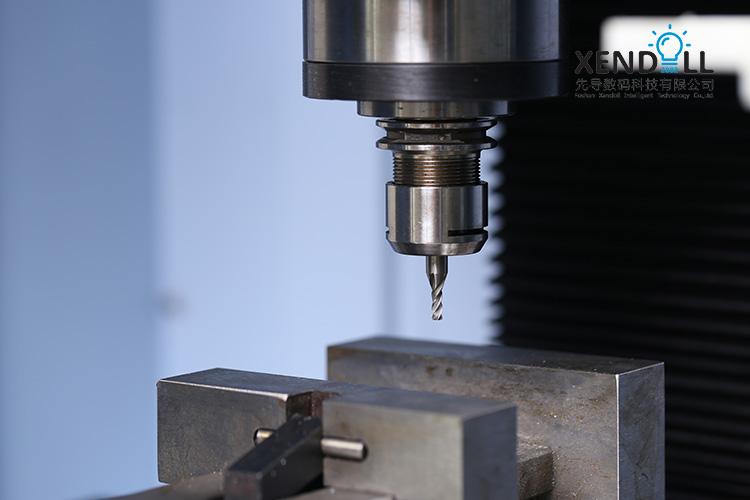

Spindle
|
Main axis speed |
Unpowered spindle |
rpm |
0-4000 |
|
Motorized spindle |
100-24000 |
|||
|
Spindle power |
Unpowered spindle |
W |
750 |
|
|
Motorized spindle |
Kw |
2.2 |
||
|
Spindle taper |
Unpowered spindle |
/ |
ISO20 |
|
|
Motorized spindle |
/ |
ISO20 |
||
|
Feed drive |
X, Y, Z axis rapid traverse speed
|
Stapper Motor |
mm/min |
2500 |
|
Closed loop |
6000 |
|||
|
Servo Motor |
10000 |
|||
|
Motor voltage |
Stapper Motor |
|
/ |
|
|
Closed loop |
|
/ |
||
|
Motor |
W |
0.4 |
||
|
X, Y, Z axis torque |
Stapper Motor |
N.m |
2.1 |
|
|
Closed loop |
2.2 |
|||
|
Servo Motor |
3.82 |
|||
|
guide rail |
Ball screw/hard screw |
mm |
Ball screw |
|
|
Tool library |
Tool library capacity |
pcs |
4 |
|
|
Tool library form |
/ |
|
||
|
Positioning accuracy |
mm |
±0.015 |
||
|
Repeated positioning |
mm |
±0.01 |
||
|
Hand wheel |
Yes/No |
Yes |
||
|
Cooling system |
Yes/No |
No |
||
|
Lubrication |
|
Manual |
||
|
CNC system |
Optional |
FANUC
|
||
|
Air pressure |
pa |
0.55-0.6Mpa |
||
|
Machine power source |
V/Hz |
220/52 |
||
|
Machine weight |
kg |
220 |
||
|

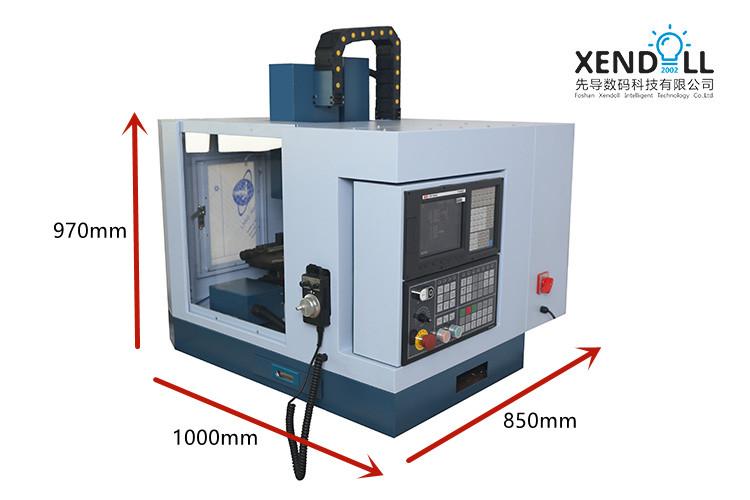

Product size/dimension |
mm |
1000x850x970 |
||
Standard Accessories
|
No. |
Tools |
Spec. |
Qty |
|
|
Collet chuck |
ISO20 – ER20 |
1 |
|
|
ER20 Collet chuck set (8-piece) |
φ3.175 |
1 |
|
|
φ5 |
1 |
|
|
|
φ6 |
2 |
|
|
|
φ8 |
1 |
|
|
|
φ9 |
1 |
|
|
|
φ10 |
1 |
|
|
|
φ12 |
1 |
|
|
|
φ13 |
1 |
|
|
|
Spanner wrench |
ISO20-ER20 |
1 |
|
|
Quick vice |
Q19D75 |
1 |
|
|
Hex Wrench set (6-piece)
|
S=3 |
1 |
|
|
S=4 |
1 |
|
|
|
S=5 |
1 |
|
|
|
S=6 |
1 |
|
|
|
Open End Wrench Set |
S=13/16 |
1 |
|
|
Phillips Screwdriver |
φ75*5 |
1 |
|
|
Flathead Screwdriver |
φ75*5 |
1 |
|
|
Oil bottle |
100ml |
1 |
|
|
Twist drill bit |
Ф3 |
1 |
|
|
Ф4 |
1 |
|
|
|
milling cutter |
Ф4 |
1 |
|
|
Ф6 |
1 |
|
|
|
Bakelite Block |
50*50*20mm |
1 |
|
|
Aluminum Block |
50*50*20mm |
1 |
|
|
Micro CNC milling manual |
VMC220 |
1 |
|
|
CNC controller manual |
Xendoll |
1 |
