| Model: | LDRR03 |
|---|---|
| Brand: | RUDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Air & Gas Flowmeter |
| Label: | range-finding radar , MWR , hydrological testing |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: | Last Online:01 Nov, 2023 |
1、Product Overview

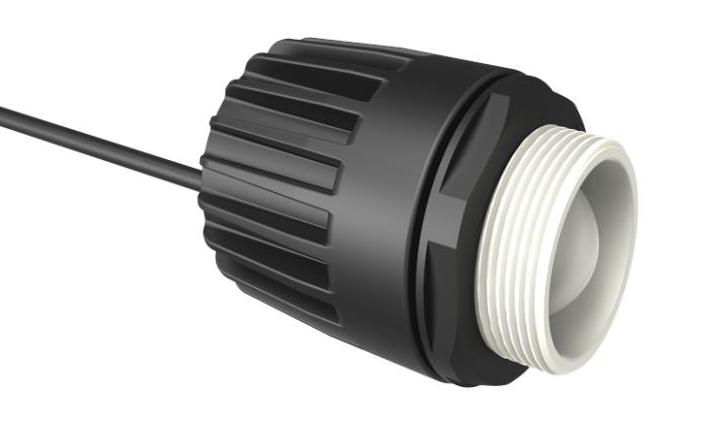

LDRR03 120GHz ranging radar adopts FMCW FM continuous wave mode, microstrip array antenna plus independent replaceable lens antenna focusing, which can replace laser, industrial ultrasonic ranging radar and other products. The product is small and compact, suitable for a variety of ranging applications. 120GHz radar system can accurately measure the distance to stationary or moving targets, the sensor output can be configured by the range or signal strength filtering results.
2、Product Features
★FMCW FMCW continuous wave mode ranging, high stability
★Millimeter-level high-precision distance measurement
★Maximum measuring distance 20m
★Small size (Φ66mm x 93mm), easy to install
★Non-contact measurement, effectively reduce the interference of harsh environments, maintenance-free
★Radar operating frequency band of 120GHz, the range of distance measurement 20 meters for the maximum measurement range, according to the size of the object RCS, the maximum value of the detection distance will have deviation.
Radar factory default configuration is compatible with ASCII\MODBUS two protocols, you can switch the protocol mode according to the corresponding instructions.
